3-138
3-5 Servo Relay Units and Cable Specifications
OMNUC G5-SERIES AC SERVOMOTOR AND SERVO DRIVE USER'S MANUAL
3
Specifications

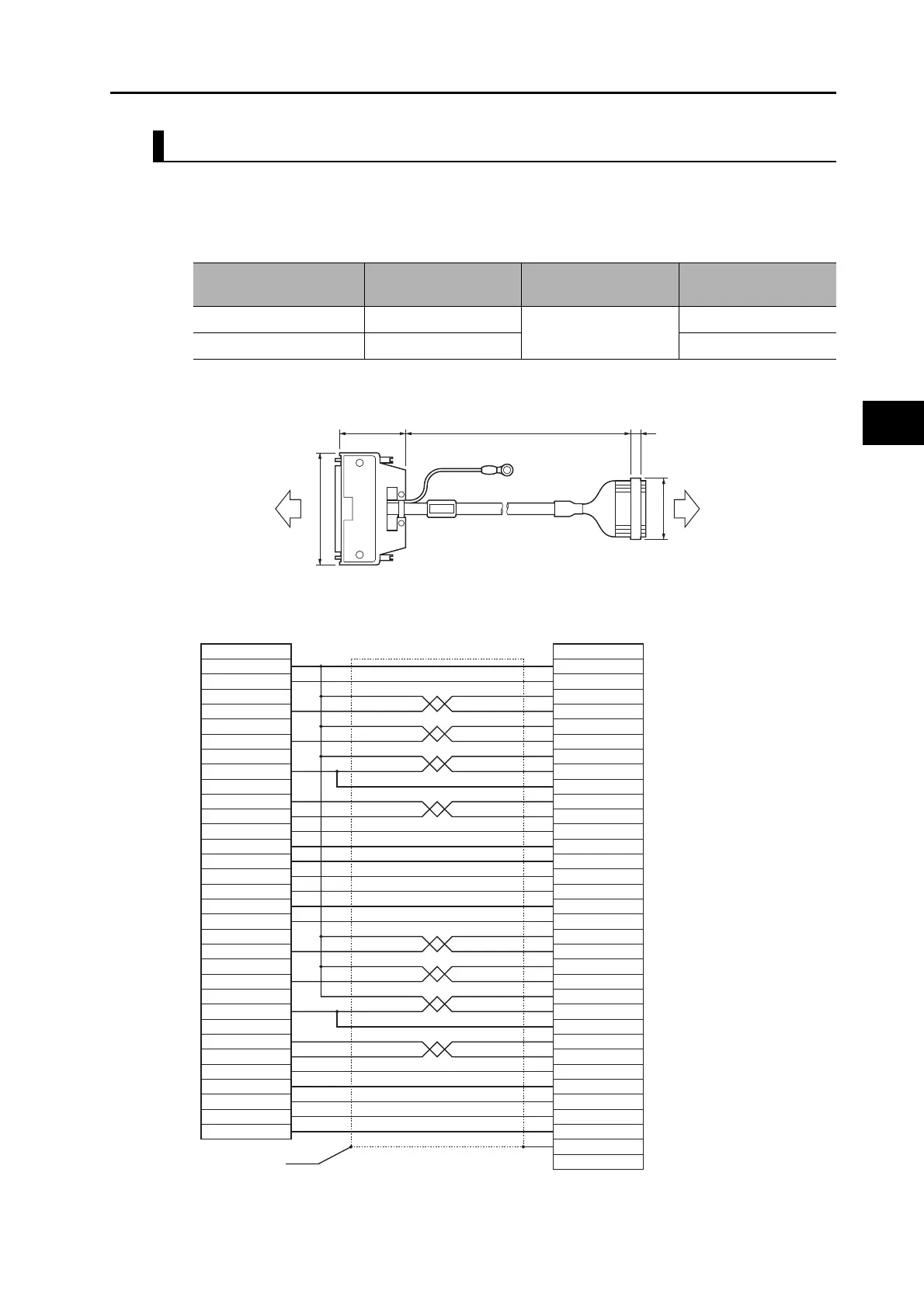

Position Control Unit Cable (XW2Z-@J-A7)
This cable connects a Position Control Unit (CS1W-NC213/NC413 and C200HW-NC213/
NC413) to a Servo Relay Unit (XW2B-40J6-2B).
Cable types
Connection configuration and external dimensions
Wiring
Model Length (L)
Outer diameter of
sheath
Weight
XW2Z-050J-A7 50 cm
10.0 dia.
Approx. 0.1 kg
XW2Z-100J-A7 1 m Approx. 0.2 kg
48
L647
83
t = 11
Position Control Unit side
CS1W-NC213
CS1W-NC413
C200HW-NC213
C200HW-NC413
Servo Relay Unit side
XW2B-40J6-2B
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
A1/B1
A2/B2
A8
A6
A10
A14
A16
A24/B24
A19
A21
A12
A23
A22
A20/B20
B8
B6
B10
B14
B16
B23
B22
B21
B19
B12
Number Number
Servo Relay Unit side
Cable: AWG28 × 6P + AWG28 × 16C
Position Control Unit side
Crimp
terminal
