4-3 Wiring Conforming to EMC Directives
OMNUC G5-SERIES AC SERVOMOTOR AND SERVO DRIVE USER'S MANUAL
4
System Design
3SUP-HL50-ER-6B

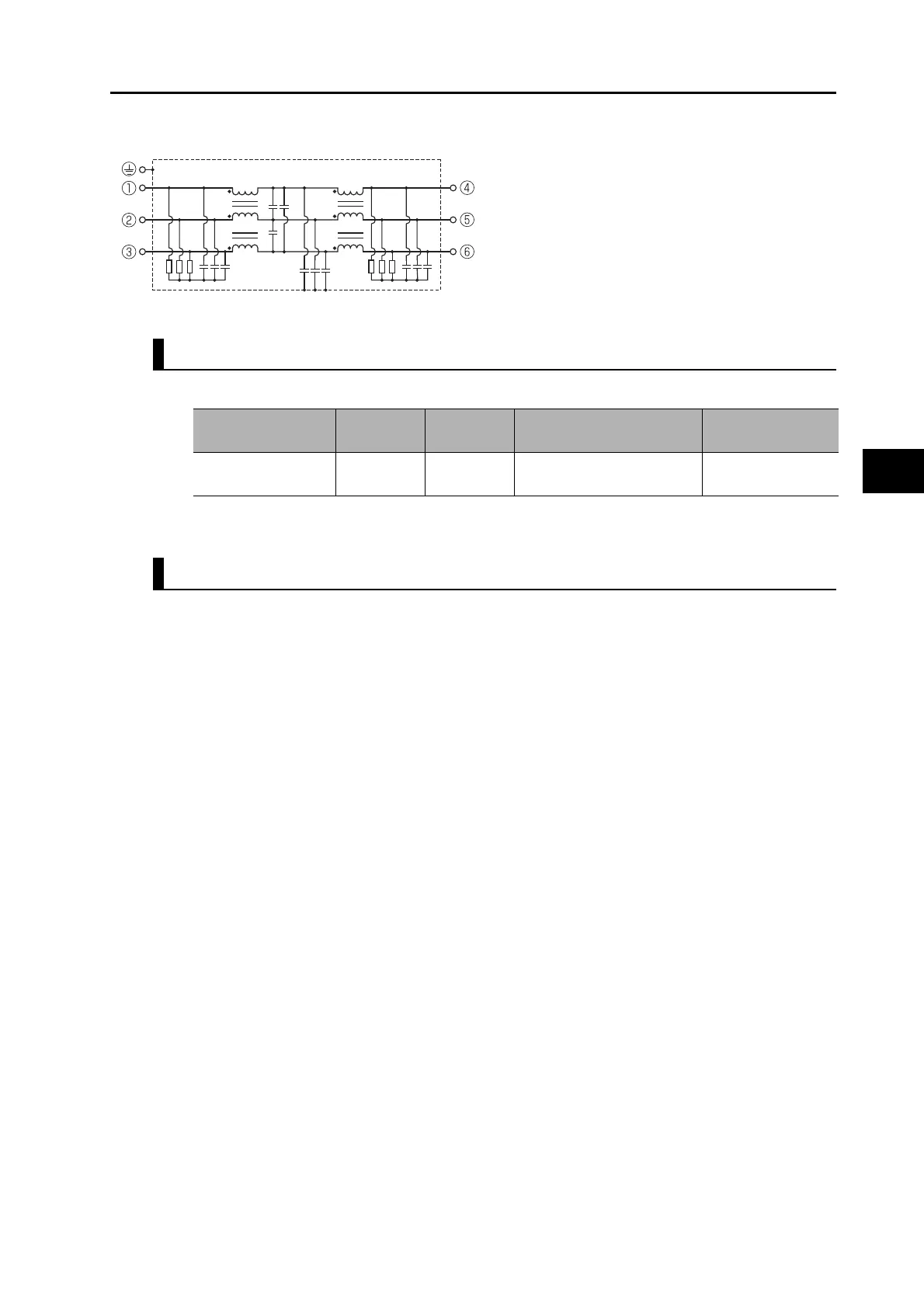

Noise Filter for the Brake Power Supply
We recommend using a noise filter for the Servo Drive.
Note. Noise can also be reduced by 1.5 turns with the ZCAT3035-1330 (TDK) Clamp Core.
Control Panel Structure
Openings in the control panel, such as holes for cables, panel mounting holes, and gaps
around the door, may allow electromagnetic waves into the panel. To prevent this, observe the
recommendations described below when designing or selecting a control panel.
Case Structure
Use a metal control panel with welded joints at the top, bottom, and sides so that the surfaces are
electrically conductive.
If assembly is required, strip the paint off the joint areas (or mask them during painting), to make
them electrically conductive.
The panel may warp and gaps may appear when screws are tightened. Be sure that no gaps
appear when tightening screws.
Do not leave any conductive part unconnected.
Ground all units within the case to the case itself.
LOADLINE
Model
Rated
current
Rated
voltage
Leakage current Manufacturer
SUP-EK5-ER-6 5 A 250 V 1.0 mA (at 250 Vrms, 60 Hz)
Okaya Electric
Industries Co., Ltd.
