9-25
9-4 Setting the Mode
OMNUC G5-SERIES AC SERVOMOTOR AND SERVO DRIVE USER'S MANUAL
9
Operation
Auxiliary Function Mode
Auxiliary Function Mode includes the alarm clear, analog input automatic offset adjustment,
absolute encoder reset, jog operation, parameter initialization, and front panel lock/release.

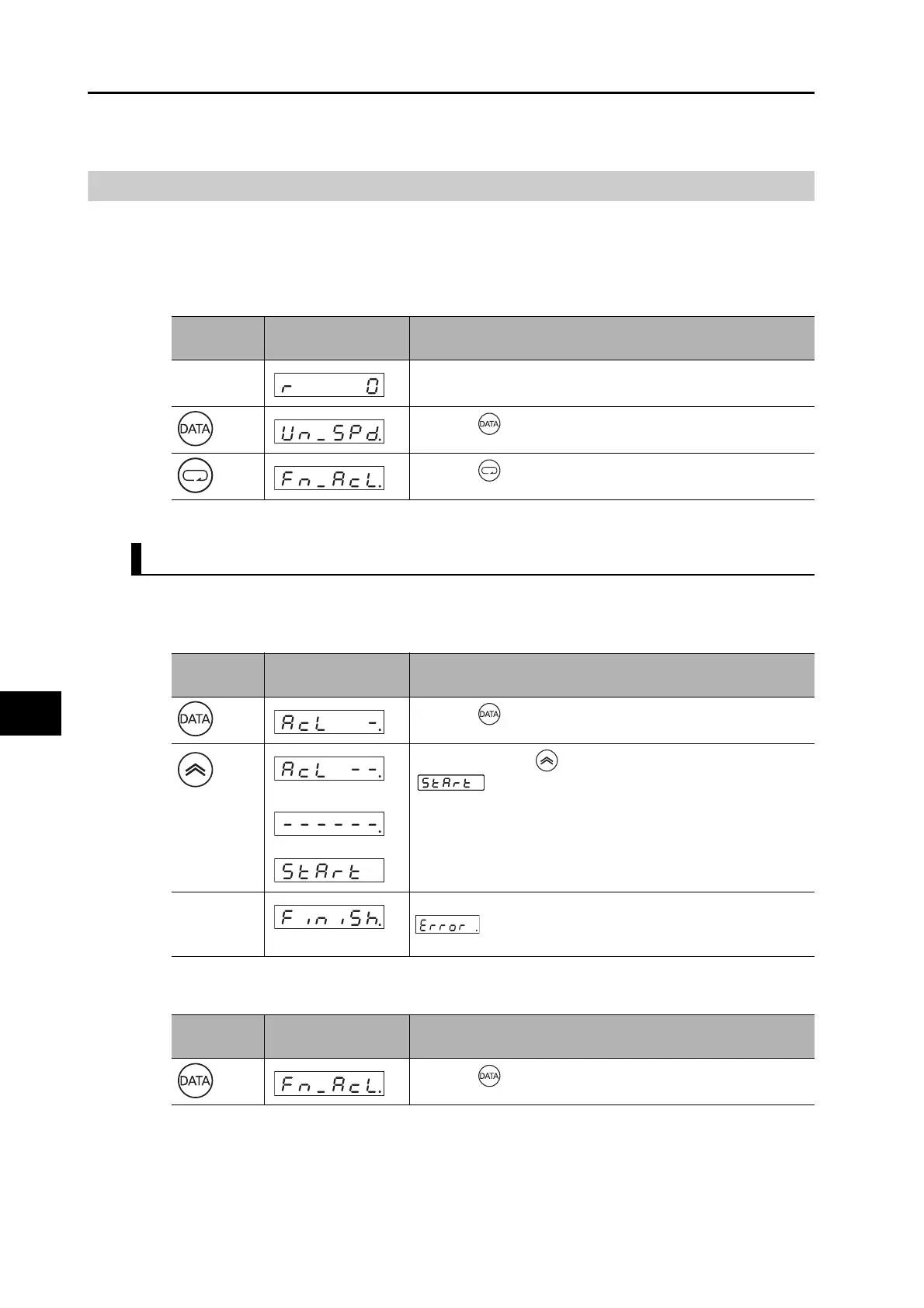

Displaying Auxiliary Function Mode
Alarm Clear
This releases the alarm generation status.
Some alarms cannot be released. Refer to "11-3 Alarm List" (P.11-5) for details.
1. Execute alarm clear
2. Returning to Auxiliary Function Mode display
Key
operation
Display example Explanation
The item set for the Default Display (Pn528) is displayed.
Press the key to display Monitor Mode.
Press the key 3 times to display Auxiliary Function Mode.
Key
operation
Display example Explanation
Press the key to enter Alarm Clear Mode.
Press and hold the key for 5 seconds or longer until
is displayed.
The bar indicator will increase.
Alarm clear will start.
This indicates a normal completion.
will be displayed if the alarm could not be cleared.
Reset the power supply to clear the alarm.
Key
operation
Display example Explanation
Press the key to return to Auxiliary Function Mode.
To Next Page
