11-5 Periodic Maintenance
OMNUC G5-SERIES AC SERVOMOTOR AND SERVO DRIVE USER'S MANUAL
11
Troubleshooting and Maintenance
Battery Unit Mounting Method

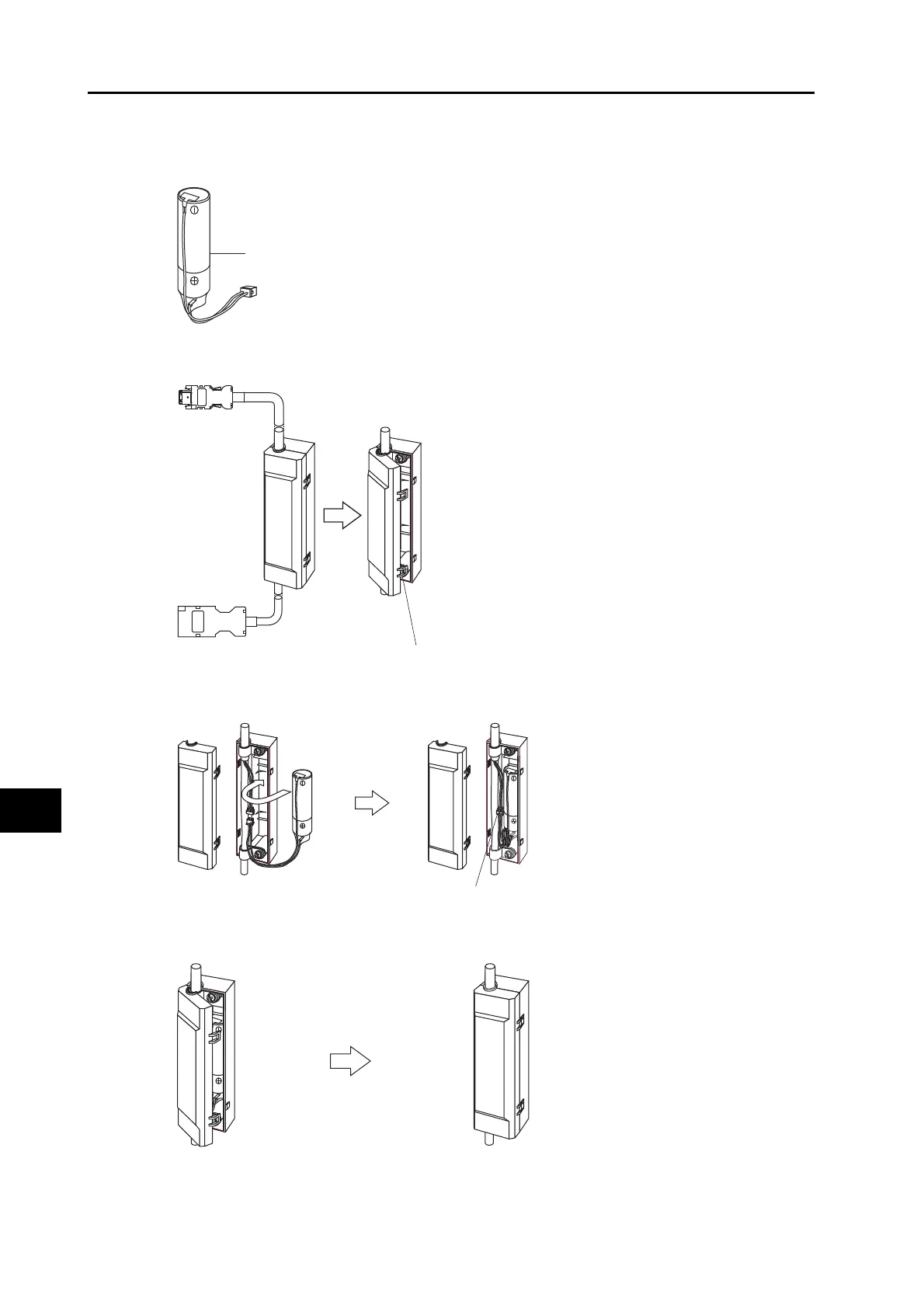

1. Prepare the replacement Battery Unit (R88A-BAT01G).
2. Remove the Battery Unit box cover.
3. Put the Battery Unit into the battery box.
4. Close the cover to the battery box.
Raise the tabs and remove the cover.
Plug in the connector.Insert the Battery Unit.
Close the battery box cover
by making sure the connector
wires are not pinched.
