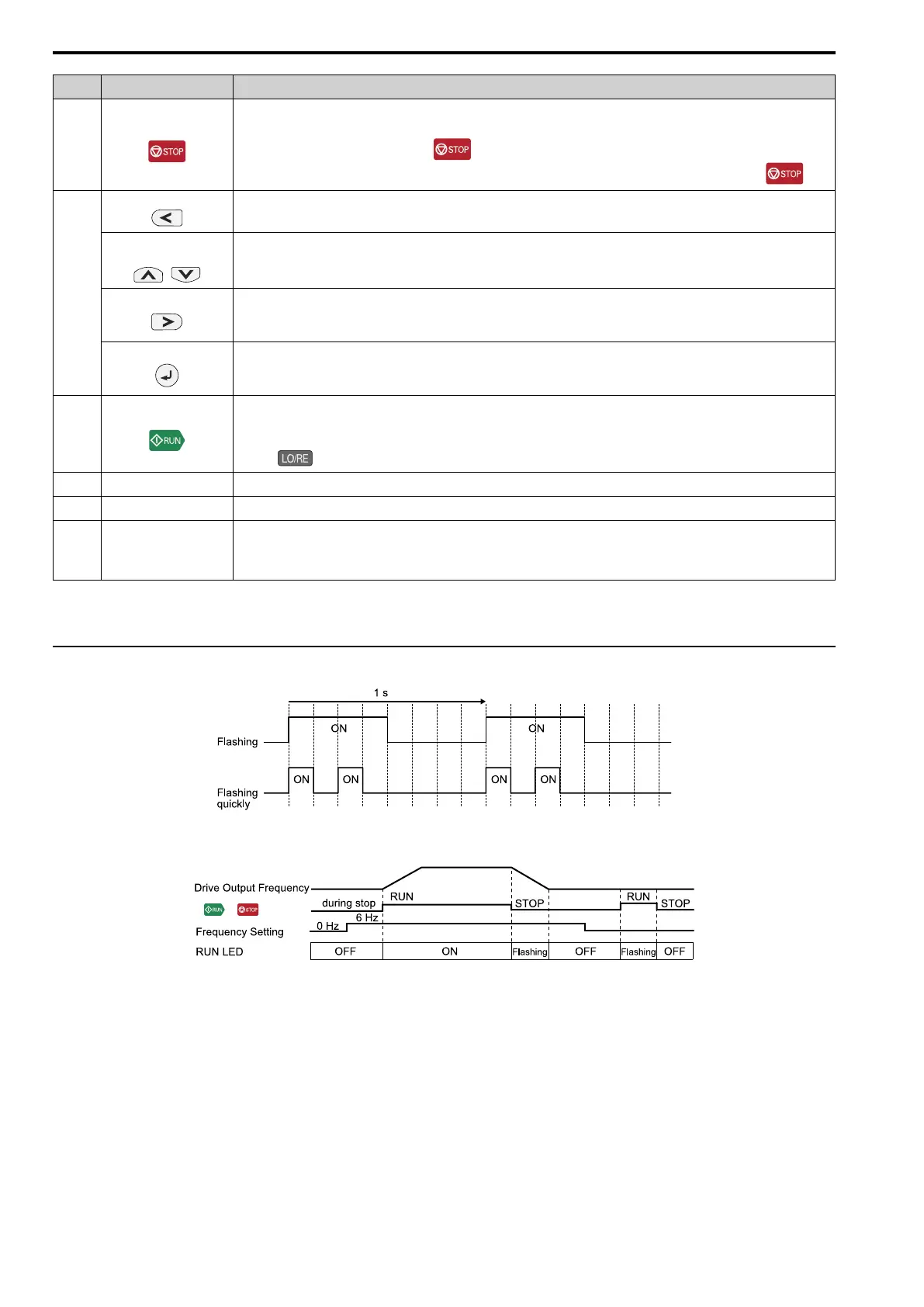

4.2 Component Names and Functions
120 SIEPYEUOQ2A01A AC Drive Q2A Technical Manual
No. Name Function
G
STOP Key
Stops drive operation.
Note:
The STOP key has highest priority. Push to stop the motor even when a Run command (REMOTE Mode) is active at any
external Run command source. Set o2-02 = 0 [STOP Key Selection of Function = Disabled] to disable the priority in .
H
Left Arrow Key Moves the cursor to the left.
In the Manual Setup menu, it is possible to navigate MANUAL1 to MANUAL3 menus using the Left and Right keys.
Up Arrow Key/Down
Arrow Key
/
• Scrolls up or down to display the next item or the previous item.
• Selects parameter numbers, and increments or decrements setting values.
Right Arrow Key (RESET)
• Moves the cursor to the right.
• Continues to the next screen.
• Clears drive faults.
ENTER Key
• Enters parameter values and settings.
• Selects menu items to move the user between keypad displays.
• Selects each mode, parameter, and set value.
I
RUN Key
Starts the drive in LOCAL mode.
Starts the motor tuning procedure in Auto-Tuning Mode.
Note:
Push on the keypad to set the drive to LOCAL Mode before using the keypad to operate the motor.
J
USB Terminal
Insertion point for a mini USB cable. Uses a USB cable (USB standard 2.0, type A - mini-B) to connect the keypad to a PC.
K RJ-45 Connector
Connects to the drive using an RJ-45 8-pin straight through UTP CAT5e extension cable or keypad connector.
L Clock Battery Cover
Cover for the customer-supplied clock battery.
Note:
• Make sure to prepare the type CR2016 clock battery with a nominal voltage of 3 V. The clock battery is not supplied as
accessories.
WARNING! Sudden Movement Hazard. The drive may start unexpectedly if switching control sources when setting b1-07 = 2
[LO/RE Run Selection = Accept RUN]. Clear all personnel from rotating machinery and electrical connections prior to switching
control sources. Failure to comply may cause death or serious injury.
◆ LED Flashing Statuses
Figure 4.2 LED Flashing Statuses
Figure 4.3 Relation between RUN LED and Drive Operation
