10.6 Drive Exterior and Mounting Dimensions
376 SIEPYEUOQ2A01A AC Drive Q2A Technical Manual
◆ Enclosed Wall-mounted Type (UL Type 1)
■ 4002 to 4023

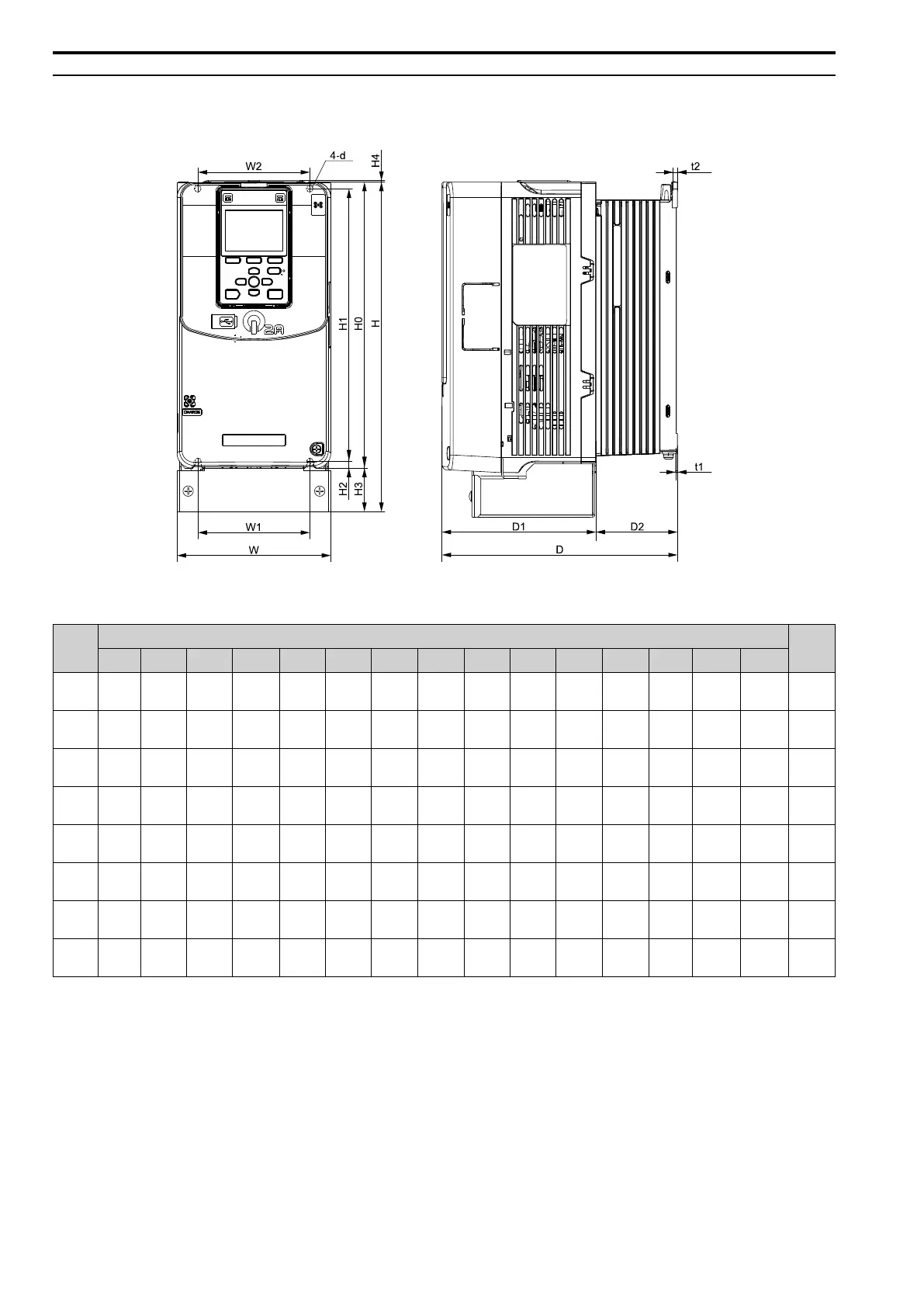

Figure 10.10 Exterior and Mounting Dimensions Diagram 1
Table 10.27 400 V Class (UL Type 1)
Model
Dimensions mm (in.)
Weight
kg (lb.)
W H D D1 D2 W1 W2 H0 H1 H2 H3 H4 t1 t2 d
4002
140
(5.51)
300
(11.81)
176
(6.93)
138
(5.43)
38
(1.50)
102
(4.02)
102
(4.02)
260
(10.24)
248
(9.76)
6
(0.236)
40
(1.57)
1.5
(0.059)
1.6
(0.063)
5
(0.197)
M5
4.1
(9.04)
4004
140
(5.51)
300
(11.81)
176
(6.93)
138
(5.43)
38
(1.50)
102
(4.02)
102
(4.02)
260
(10.24)
248
(9.76)
6
(0.236)
40
(1.57)
1.5
(0.059)
1.6
(0.063)
5
(0.197)
M5
4.1
(9.04)
4005
140
(5.51)
300
(11.81)
176
(6.93)
138
(5.43)
38
(1.50)
102
(4.02)
102
(4.02)
260
(10.24)
248
(9.76)
6
(0.236)
40
(1.57)
1.5
(0.059)
1.6
(0.063)
5
(0.197)
M5
4.1
(9.04)
4007
140
(5.51)
300
(11.81)
211
(8.31)
138
(5.43)
73
(2.87)
102
(4.02)
102
(4.02)
260
(10.24)
248
(9.76)
6
(0.236)
40
(1.57)
1.5
(0.059)
1.6
(0.063)
5
(0.197)
M5
4.5
(9.92)
4009
140
(5.51)
300
(11.81)
211
(8.31)
138
(5.43)
73
(2.87)
102
(4.02)
102
(4.02)
260
(10.24)
248
(9.76)
6
(0.236)
40
(1.57)
1.5
(0.059)
1.6
(0.063)
5
(0.197)
M5
4.5
(9.92)
4012
140
(5.51)
300
(11.81)
211
(8.31)
138
(5.43)
73
(2.87)
102
(4.02)
102
(4.02)
260
(10.24)
248
(9.76)
6
(0.236)
40
(1.57)
1.5
(0.059)
1.6
(0.063)
5
(0.197)
M5
4.5
(9.92)
4018
140
(5.51)
300
(11.81)
211
(8.31)
138
(5.43)
73
(2.87)
102
(4.02)
102
(4.02)
260
(10.24)
248
(9.76)
6
(0.236)
40
(1.57)
1.5
(0.059)
1.6
(0.063)
5
(0.197)
M5
4.8
(10.58)
4023
140
(5.51)
300
(11.81)
211
(8.31)
138
(5.43)
73
(2.87)
102
(4.02)
102
(4.02)
260
(10.24)
248
(9.76)
6
(0.236)
40
(1.57)
1.5
(0.059)
1.6
(0.063)
5
(0.197)
M5
4.8
(10.58)
