Omron Q2A Series - Sub-Chart A-1: Induction Motor Auto-Tuning and Test Run Procedure; Sub-Chart A-2: PM Motor Auto-Tuning and Test Run Procedure

4.3 Start-up Procedures
124 SIEPYEUOQ2A01A AC Drive Q2A Technical Manual
◆ Sub-Chart A-1: Induction Motor Auto-Tuning and Test Run Procedure

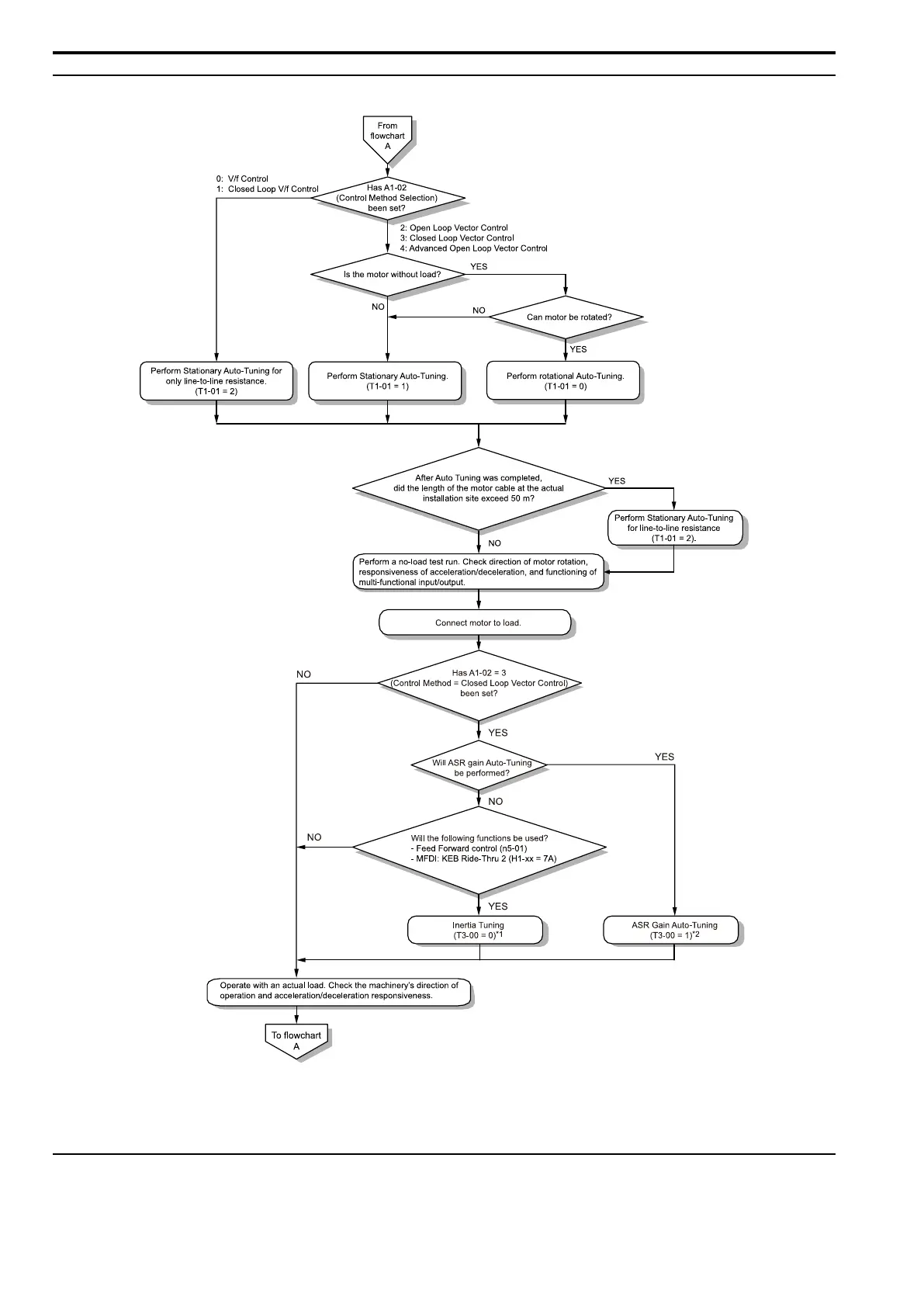

Figure 4.6 Induction Motor Auto-Tuning and Test Run Procedure
*1 Be sure to release the holding brake before doing Inertia Tuning.
*2 In ASR Tuning, the drive will automatically tune Feed Forward control and KEB Ride-Thru 2 parameters.
◆ Sub-Chart A-2: PM Motor Auto-Tuning and Test Run Procedure
Sub-Chart A-2 gives the basic steps to start up the drive for a PM motor.
