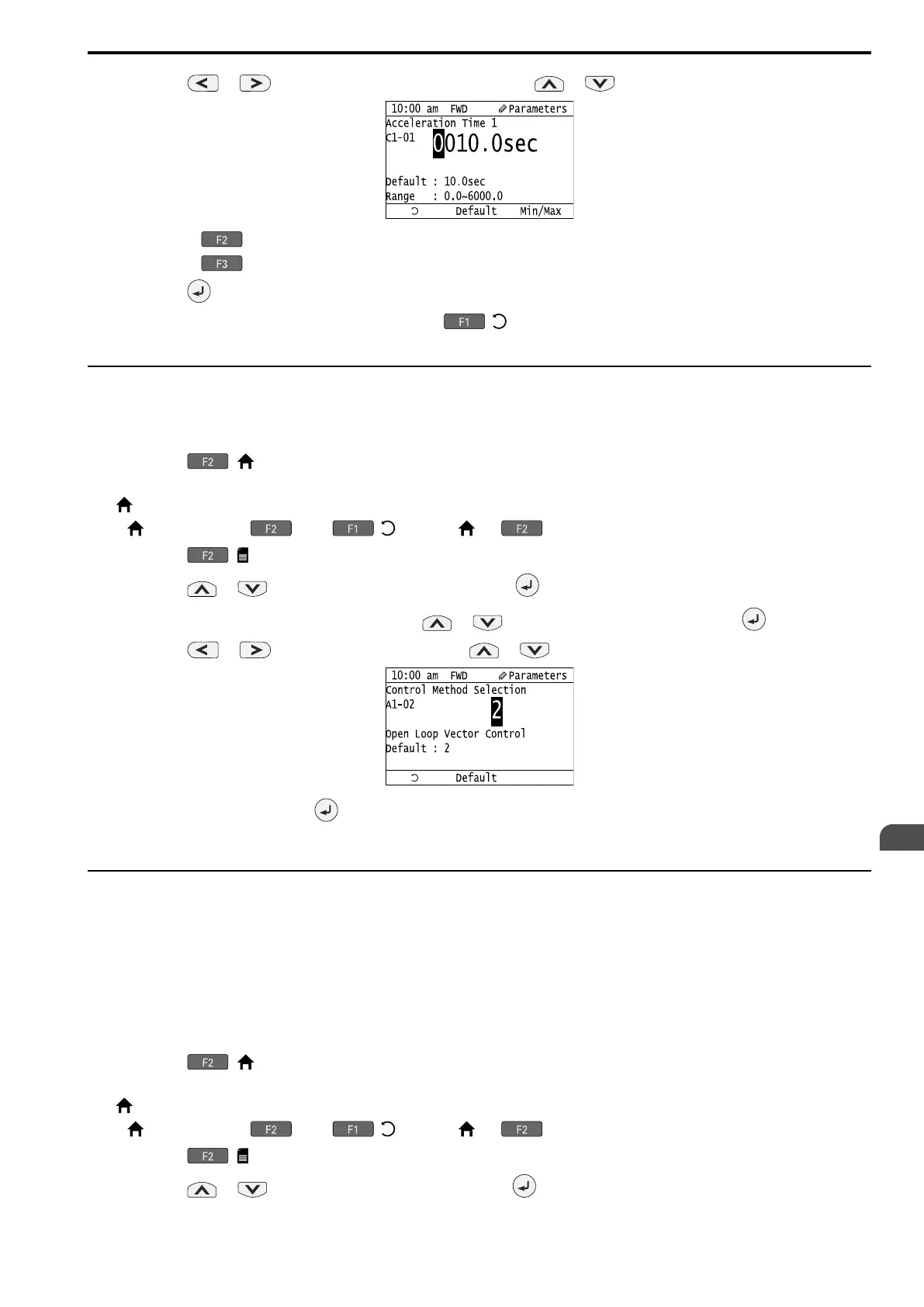

4.5 Keypad Operation
SIEPYEUOQ2A01A AC Drive Q2A Technical Manual 135
7. Push or to select the specified digit. then push or to select the correct number.
• Push [Default] to set the parameters to factory defaults.
• Push [Min/Max] to show the minimum value or the maximum value on the display.
8. Push to keep the changes.
9. Continue to change parameters, then push [ ] to go back to the home screen after you change all
the applicable parameters.
◆ Examine Manual Setup Parameters
The Manual Setup Parameters show the parameters set in A2-01 to A2-32 [MAN1 Param1 to MAN3 Param12].
This lets users to quickly access and change settings to these parameters.
1. Push ( ) to show the HOME screen.
Note:
• [ Home] appears in the upper right hand corner of the screen when in HOME mode.
• If [ ] is not shown on , push ( ) to show [ ] on .
2. Push ( ).
3. Push or to select [Manual Setup], then push .
4. To change the parameter settings, push or to select the parameter, then push .
5. Push or to select the digit, then push or to change the value.
6. Change the value, push .
The parameter setting procedure is complete.
◆ Save a Backup of Parameters
You can save a backup of the drive parameters to the keypad. The keypad can store parameter setting values for a
maximum of four drives in different storage areas. Making backups of the parameter settings can save time when
setting parameters after replacing a drive. If you set up more than one drive, you can copy the parameter settings
from a drive that completed a test run to the other drives.
Note:
• Always stop the motor before making a backup of the parameters.
• When making a backup, the drive will not accept Run commands.
1. Push ( ) to show the HOME screen.
Note:
• [ Home] appears in the upper right hand corner of the screen when in HOME mode.
• If [ ] is not shown on , push ( ) to show [ ] on .
2. Push ( ).
3. Push or to select [Configuration], then push .
To Next Page
