5.2 European Standards
184 SIEPYEUOQ2A01A AC Drive Q2A Technical Manual
A - SW (ON) B - Screw (OFF)

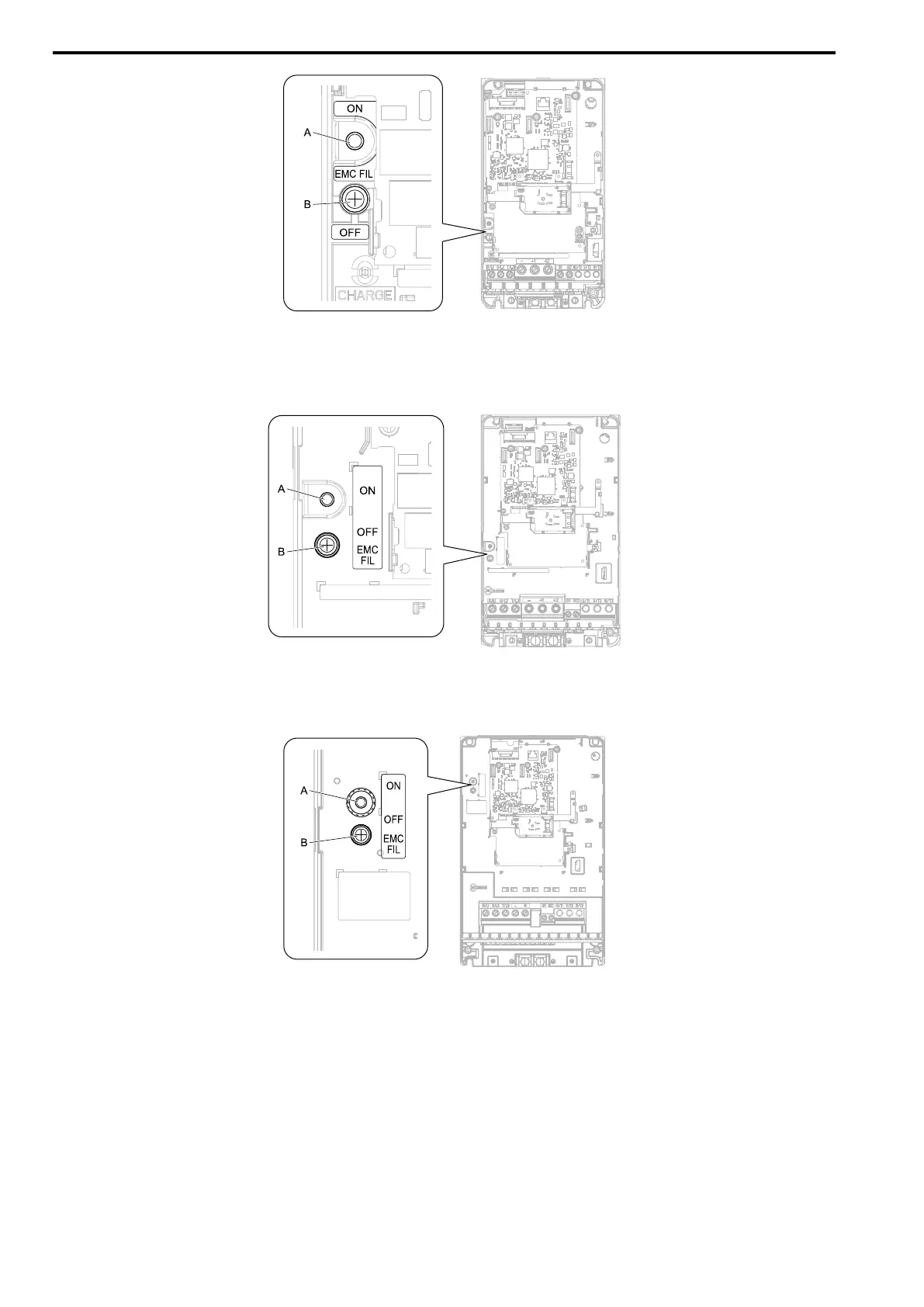

Figure 5.8 EMC Filter Switch Location (4002 - 4023)
A - SW (ON) B - Screw (OFF)
Figure 5.9 EMC Filter Switch Location (4031, 4038)
A - SW (ON) B - Screw (OFF)
Figure 5.10 EMC Filter Switch Location (4044, 4060)
