Periodic Inspection and
Maintenance
8
8.4 Replace a Cooling Fan and Circulation Fan
SIEPYEUOQ2A01A AC Drive Q2A Technical Manual 329
A - Screws A
B - Screws B
C - Slide panel

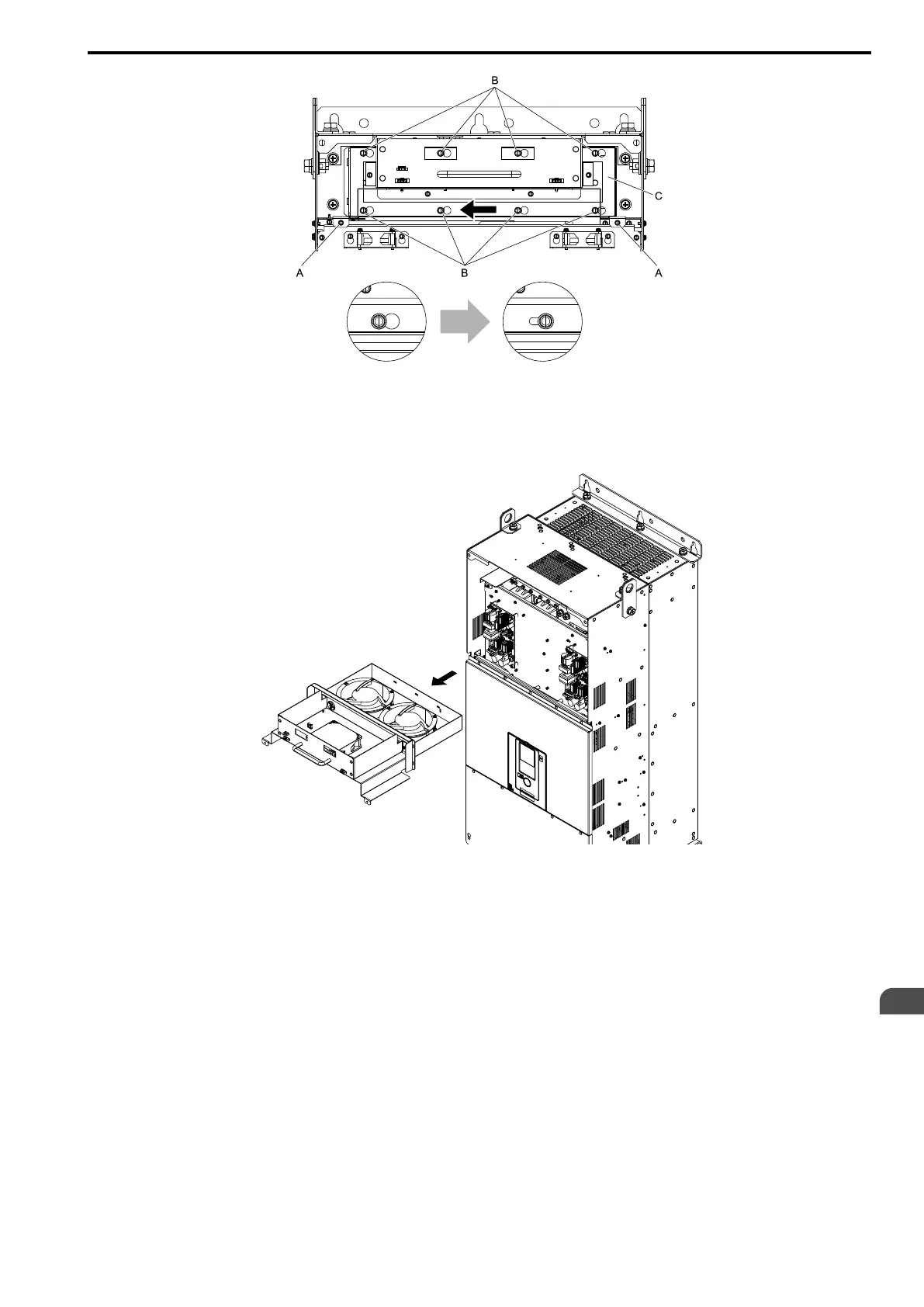

Figure 8.49 Slide the Slide Panel
4. Remove the fan unit and the slide panel at the same time.
Figure 8.50 Remove the Fan Unit
