Mechanical Installation
2
2.4 Moving the Drive
SIEPYEUOQ2A01A AC Drive Q2A Technical Manual 35
WARNING! Crush Hazard. Do not try to flip over a hanging drive or leave a hanging drive unattended. Failure to obey can
cause death or serious injury from falling equipment.
NOTICE: If you attach a horizontal wire to the drive, the wire can scratch and damage the drive if touches the drive. Use a jig or
pad to prevent damage to the drive.

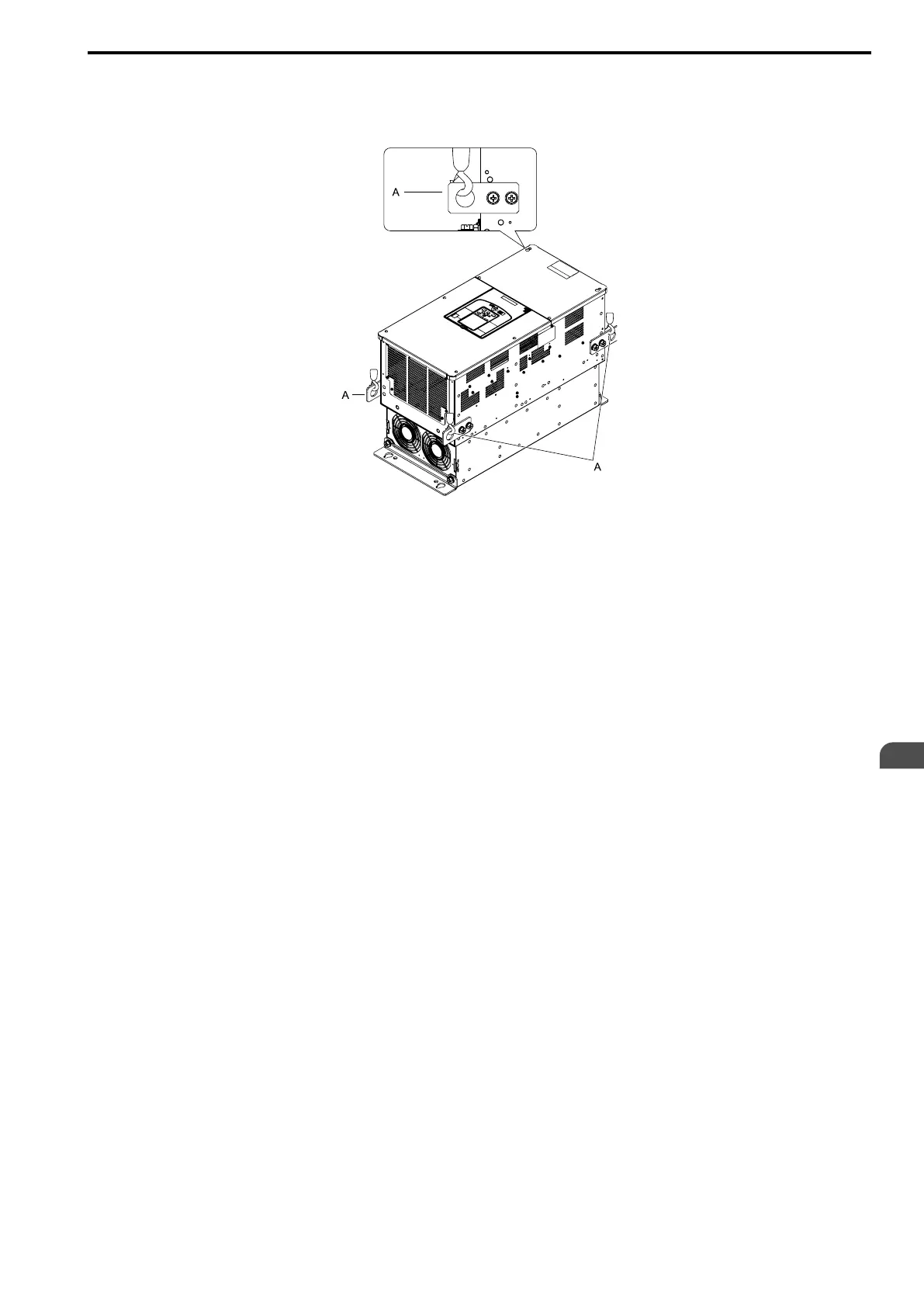

A - Hanging bracket (4)
Figure 2.6 Horizontal Suspension
