Omron Q2A Series Technical Manual

10.6 Drive Exterior and Mounting Dimensions
368 SIEPYEUOQ2A01A AC Drive Q2A Technical Manual
■ 4031, 4038

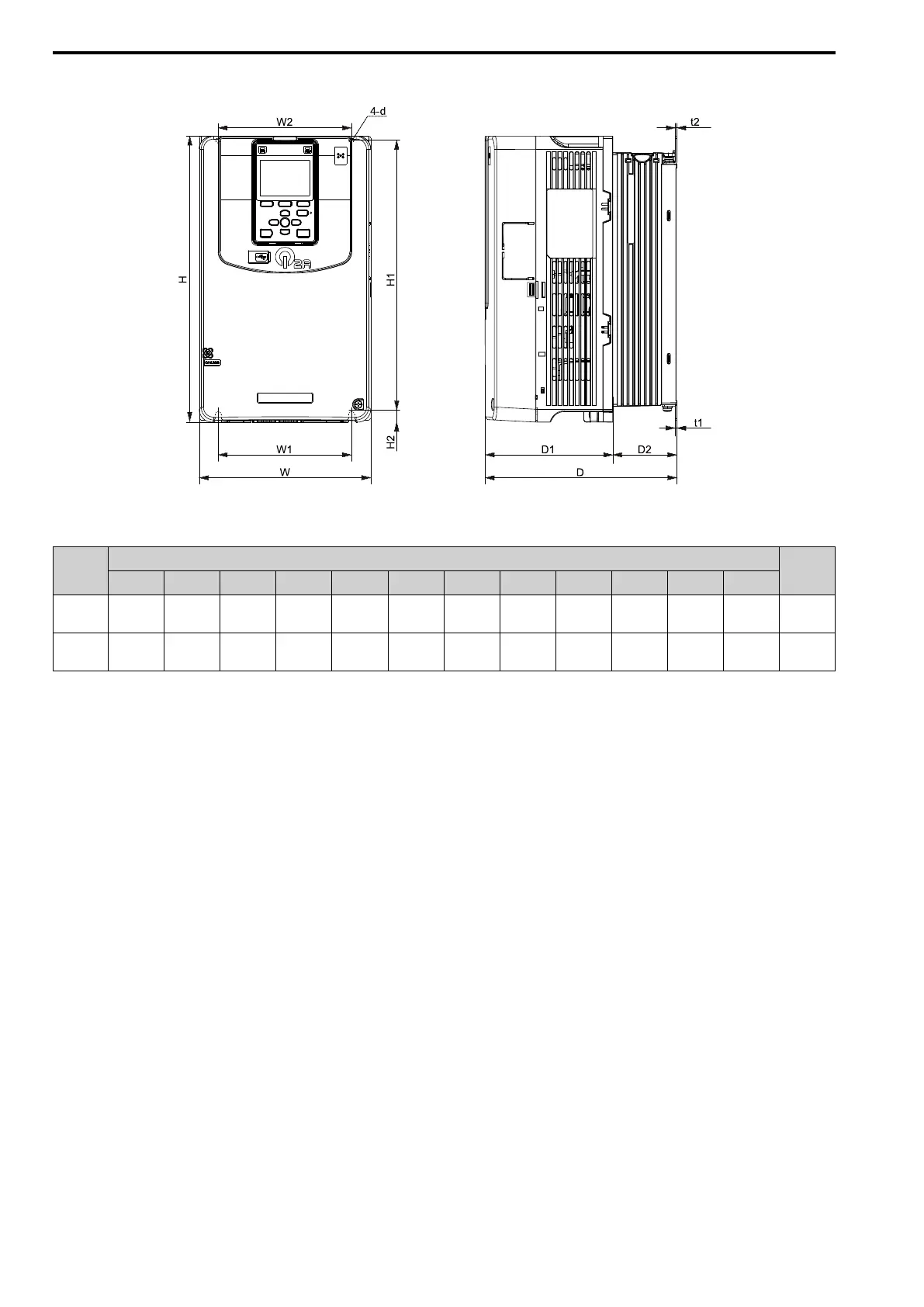

Figure 10.2 Exterior and Mounting Dimensions Diagram 2
Table 10.19 400 V class (IP20)
Model
Dimensions mm (in.)
Weight
kg (lb.)
W H D D1 D2 W1 W2 H1 H2 t1 t2 d
4031
180
(7.09)
300
(11.81)
202
(7.95)
134
(5.28)
68
(2.68)
140
(5.51)
140
(5.51)
284
(11.18)
8
(0.315)
1.6
(0.063)
1.6
(0.063)
M5
6
(13.23)
4038
180
(7.09)
300
(11.81)
202
(7.95)
134
(5.28)
68
(2.68)
140
(5.51)
140
(5.51)
284
(11.18)
8
(0.315)
1.6
(0.063)
1.6
(0.063)
M5
6
(13.23)
