12.2 b: APPLICATION
SIEPYEUOQ2A01A AC Drive Q2A Technical Manual 545
Configuration Parameter Description
b5-95 = 1 [EZsleep Wake Mode = Absolute] When the PID feedback is less than the value of b5-94 [EZsleep Wake Level] for longer than the time set in
b5-96 [EZsleep Wake Time], the drive restarts operation from sleep.
b5-95 = 0 [EZsleep Wake Mode = Setpoint Delta] When the PID feedback is less than the value set as the PID setpoint value minus b5-94 for the time set in
b5-96, the drive restarts operation from sleep.

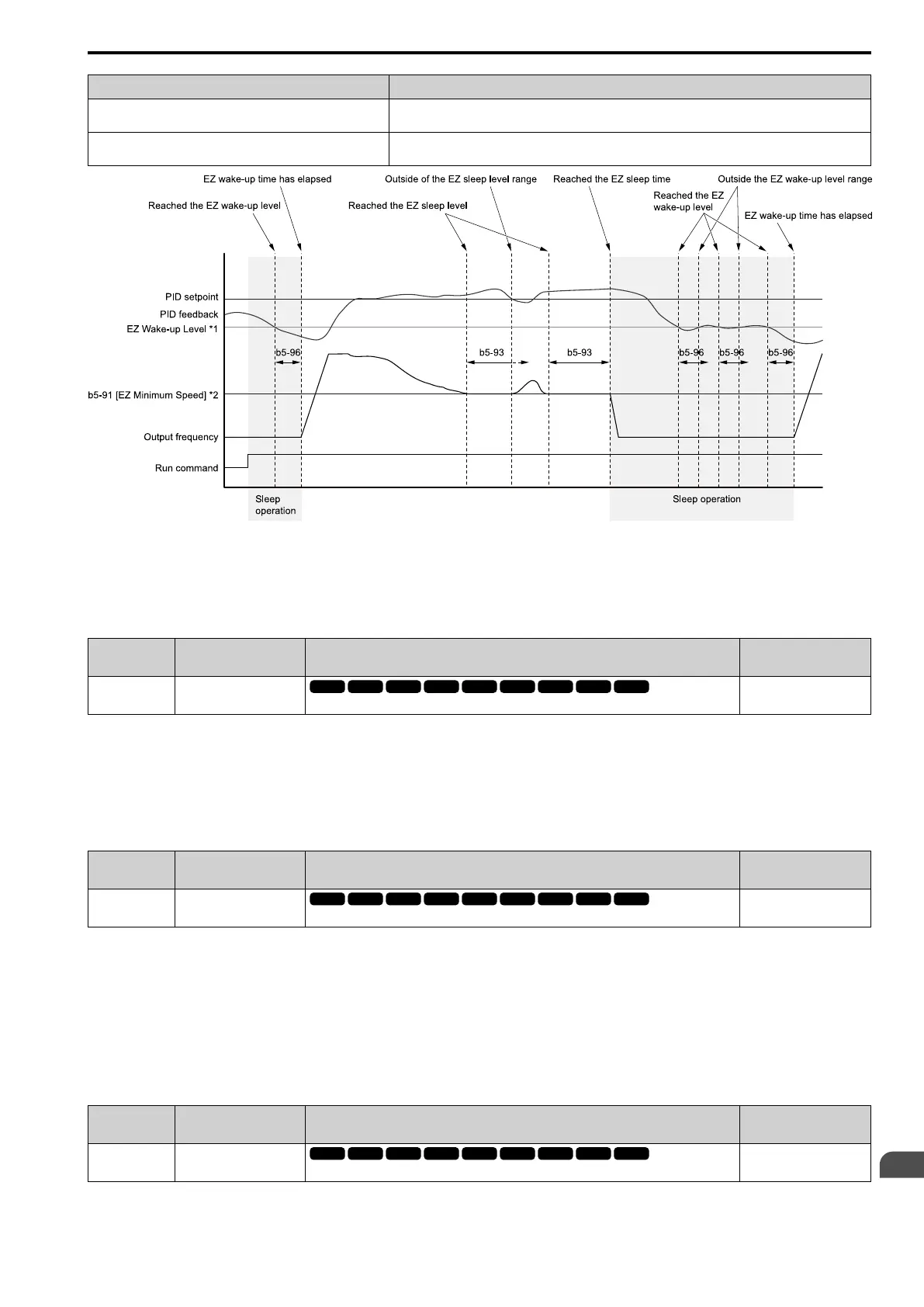

Figure 12.32 EZ Sleep/Wake-up Operation: PID Output is Normal and b5-92 = 0.0 Hz
*1 The values of b5-94 and b5-95 set operation.
*2 In the example, b5-92 is at the default setting of 0.0 Hz. b5-91 is the EZ sleep level.
■ b5-01 PID Enable
No.
(Hex.)
Name Description
Default
(Range)
b5-01
(01A5)
PID Enable
Enables PID control.
0
(0,1)
0 : Disabled
1 : Enabled
The drive does D control on the difference between the feedback value and the PID setpoint output through U5-02
[PID Input].
■ b5-70 PID MainRefMode
No.
(Hex.)
Name Description
Default
(Range)
b5-70
(01E5)
PID MainRefMode
Sets the PID main reference mode.
0
(0, 1)
0 : PID only
The drive does D control on the difference between the feedback value and the PID setpoint output through U5-02
[PID Input].
1 : Fref + PID
The drive adds the frequency reference to the PID output. The drive does D control on the feedback output
through U5-06 [PID AdjustFeedback].
■ b5-71 PID Fdbk 1/2 Selection
No.
(Hex.)
Name Description
Default
(Range)
b5-71
(01E6)
PID Fdbk 1/2 Selection
Selects the feedback configuration for PID control.
0
(0, 1)
0 : Feedback 1
