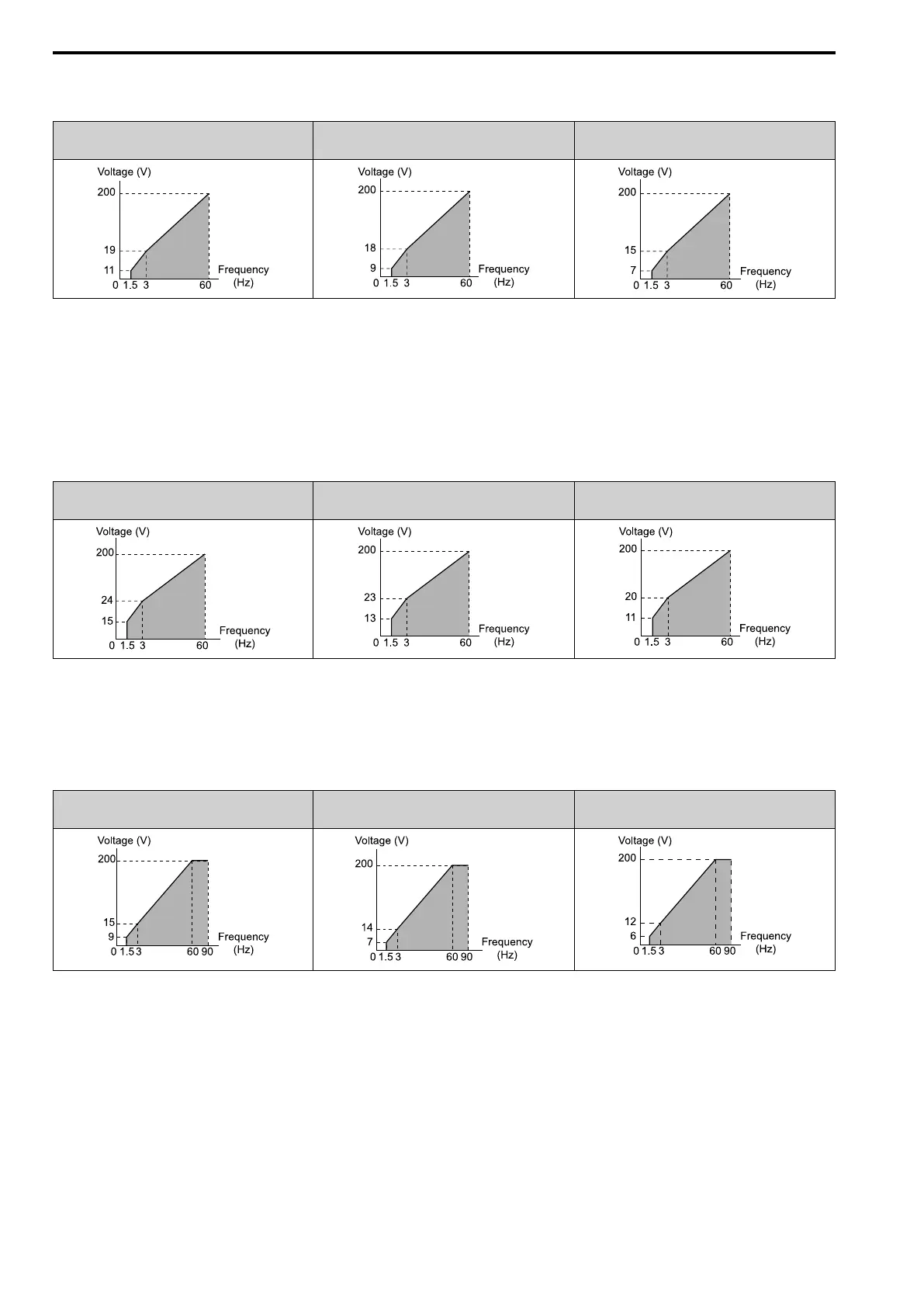

12.5 E: MOTOR
614 SIEPYEUOQ2A01A AC Drive Q2A Technical Manual
Note:
The voltage values in the figures are for 200 V class drives. Multiply the values by 2 for 400 V class drives.
HD: 4002 - 4012
ND: 4002 - 4009
HD: 4018 - 4103
ND: 4012 - 4089
HD: 4140 - 4675
ND: 4103 - 4675
B : HT_60Hz-165V
Use this pattern when high torque is necessary during start up.
Select this pattern only in these conditions:
• The wiring distance between the drive and motor is 150 m (492.1 ft.) minimum.
• There is an AC reactor connected to the drive output.
Note:
The voltage values in the figures are for 200 V class drives. Multiply the values by 2 for 400 V class drives.
HD: 4002 - 4012
ND: 4002 - 4009
HD: 4018 - 4103
ND: 4012 - 4089
HD: 4140 - 4675
ND: 4103 - 4675
C : HF_60-90Hzmax
Use this constant output pattern to rotate motors at more than 60 Hz. Output voltage is constant when you operate
at more than 60 Hz.
Note:
The voltage values in the figures are for 200 V class drives. Multiply the values by 2 for 400 V class drives.
HD: 4002 - 4012
ND: 4002 - 4009
HD: 4018 - 4103
ND: 4012 - 4089
HD: 4140 - 4675
ND: 4103 - 4675
D : HF_60-120Hzmax
Use this constant output pattern to rotate motors at more than 60 Hz. Output voltage is constant when you operate
at more than 60 Hz.
Note:
The voltage values in the figures are for 200 V class drives. Multiply the values by 2 for 400 V class drives.
