Parameter Details
12
12.7 H: TERMINALS
SIEPYEUOQ2A01A AC Drive Q2A Technical Manual 699

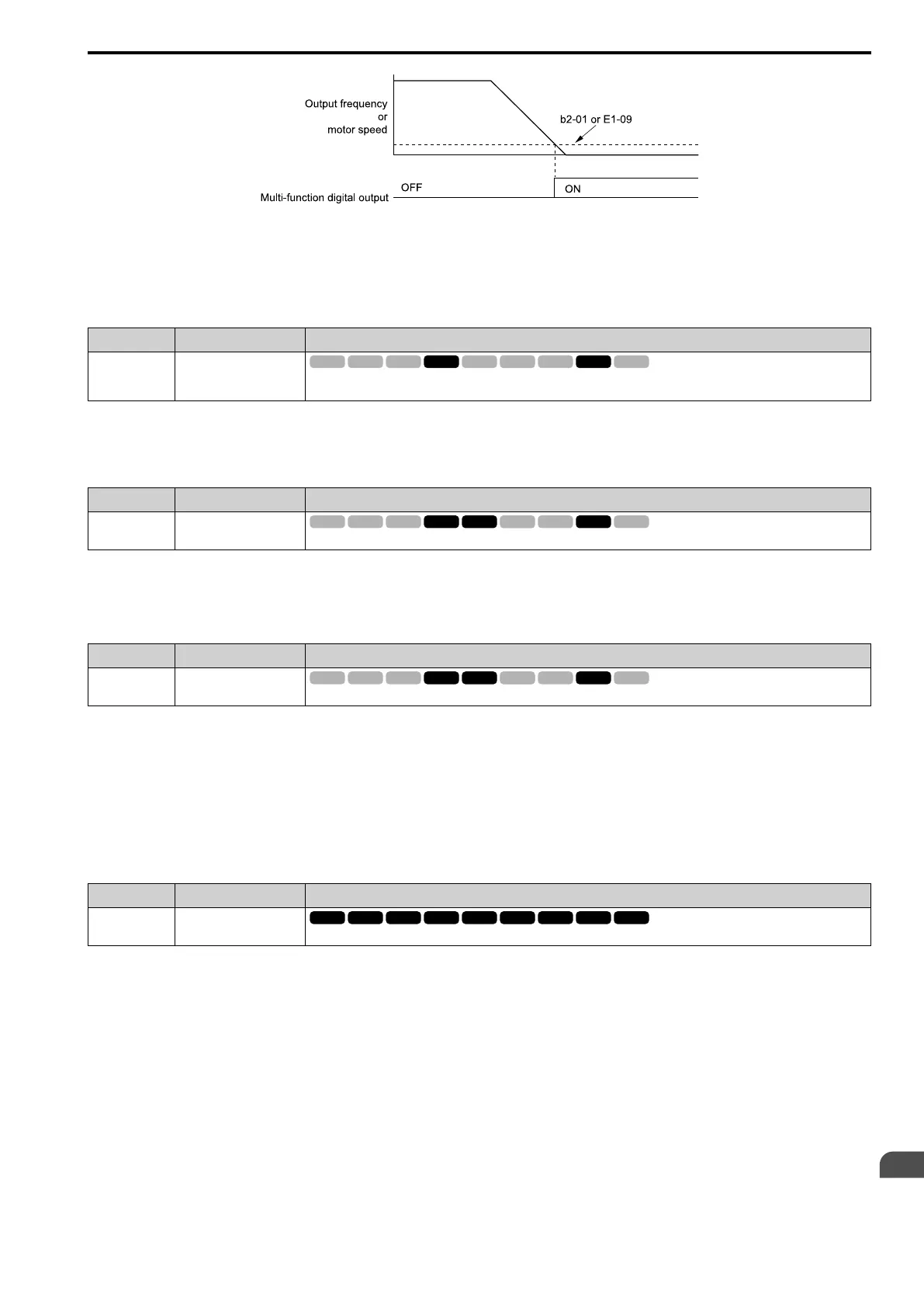

Figure 12.86 Zero Speed Time Chart
ON : Output frequency < value of E1-09 or b2-01.
OFF : Output frequency ≥ value of E1-09 or b2-01.
■ 8: ZeroServo ok
Setting Function Description
8 ZeroServo ok
The terminal activates when positioning in the range set with b9-02 [Zero Servo Width for Completion] completes after sending
the Zero-Servo command.
Note:
Refer to “b9: ZERO SERVO” for more information.
■ 9: @Regeneration
Setting Function Description
9 @Regeneration
The terminal activates on when the motor is regenerating.
ON : Motor is regenerating.
OFF : Motor is operating or stopped.
■ A: @SpeedLimit
Setting Function Description
A @SpeedLimit
The terminal activates when the speed limit is active.
The frequency limit activates and the terminal activates in these conditions:
• The frequency reference ≥ d2-01 [FRef Upper Limit]
• The frequency reference ≤ d2-02 [FRef Lower Limit] or d2-03 [Analog FRef Lower Limit].
• The frequency reference ≤ E1-09 [Min Output Frequency] when b1-05 = 2, 3, or 4 [Below Min. Freq.
Operation = Baseblock coast, Min. Frequency, or Zero Speed].
• The frequency reference ≤ FW Trq Lim [H3-xx = 9] through analog input.
■ B: @FreqOutput
Setting Function Description
B @FreqOutput
The terminal activates when the drive outputs frequency.
ON : The drive outputs frequency.
OFF : The drive does not output frequency.
Note:
The terminal deactivates in these conditions:
• During Stop
• During baseblock
• During DC Injection Braking (initial excitation)
• During Short Circuit Braking
