3.3 Main Circuit Wiring
78 SIEPYEUOQ2A01A AC Drive Q2A Technical Manual

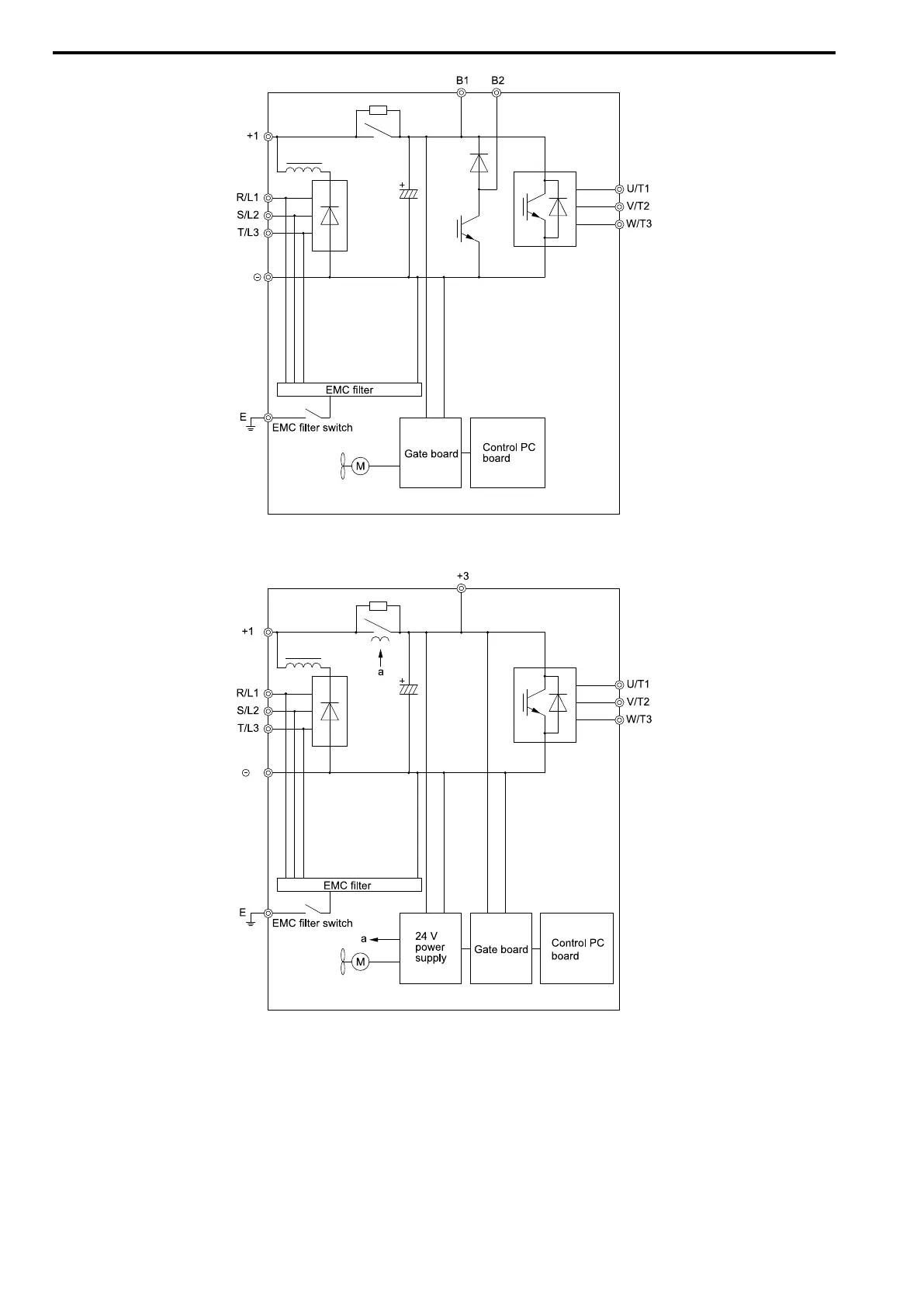

Figure 3.16 Drive Main Circuit Configuration for Drive Models 4060 to 4168
Figure 3.17 Drive Main Circuit Configuration for Drive Models 4208 to 4250
