15-31
15 Ethernet
CP2E CPU Unit Software User’s Manual(W614)
15-4 FINS Communications
15
15-4-6 New FINS Commands
Parameters
Number of Records (Command)
The number of records to write is specified in hexadecimal between 0000 and 0008 in the com-
mand. If this value is set to 0, the IP router table will be cleared so that no records are registered.
IP Router Table Records (Command)
Specify the IP router table records. The number of records specified must be provided. The total
number of bytes in the IP router table records is calculated as the number of records × 8

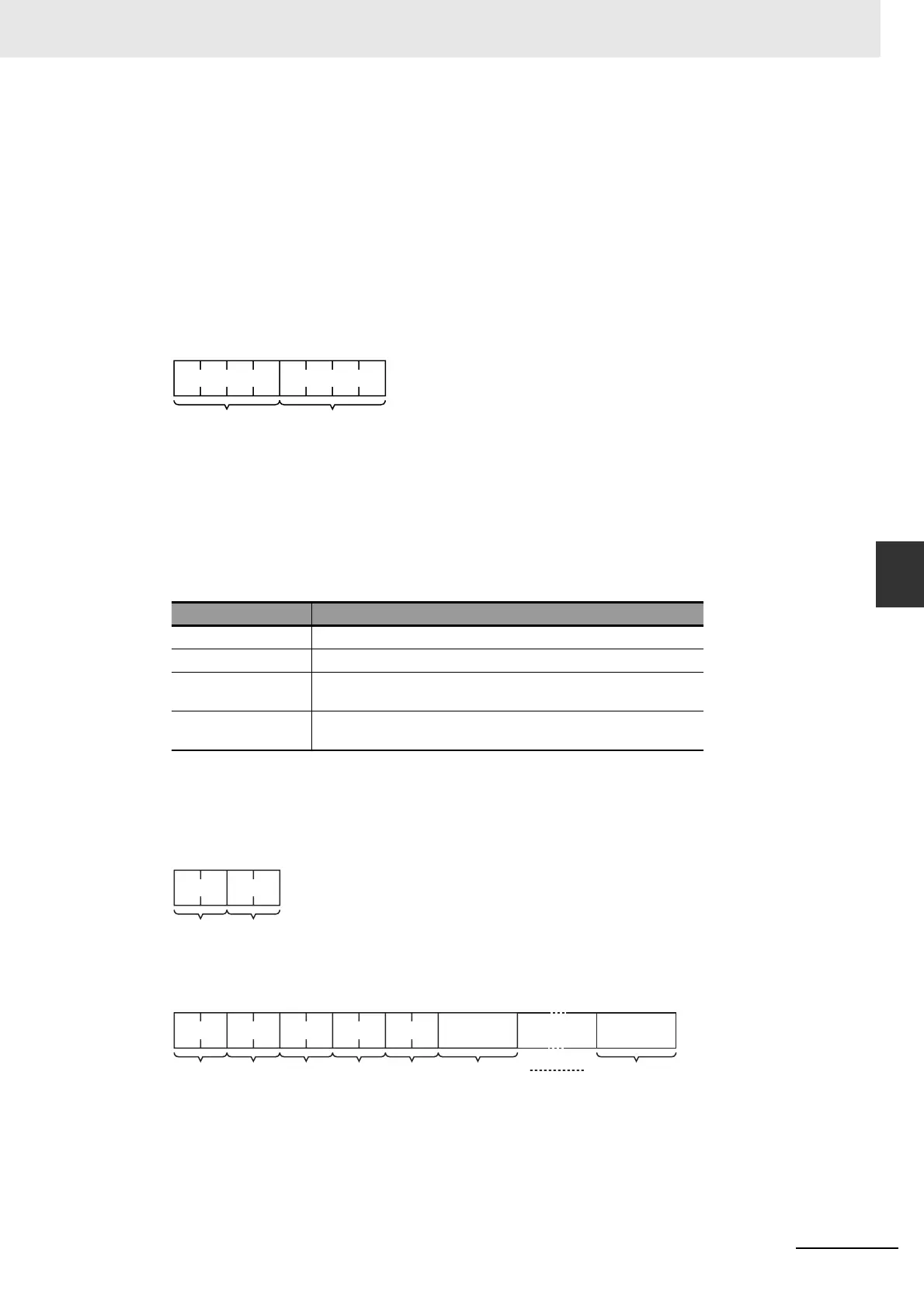

bytes/record. The configuration of the 8 bytes of data in each record is as shown in the following dia-
gram.
• IP Network Address
The network ID from the IP address in hexadecimal. The network ID part corresponding to the
address class (determined by the leftmost 3 bits) set here, is enabled.
• Router IP Address
The IP address (in hexadecimal) of a router connected to a network specified with IP addresses.
Response Codes
z IP ADDRESS TABLE READ: 2760
Reads the IP address table.
Command Block
Response Block
Response code Description
0000 Normal
1004 Command format error
1003 The number of records specified does not match the sent data
length.
110C The number of records is not between 0 and 8.
The router IP address is 0.
IP Network address
(Network ID)
Router IP address
1
8 bytes
Number of
records
Command
code
27 60
Maximum
number
of stored
records
Number
of stored
records
Number
of records
IP address
table records
Response
code
Command
code
27 60
IP address
table records
6 bytes 6 bytes
