12

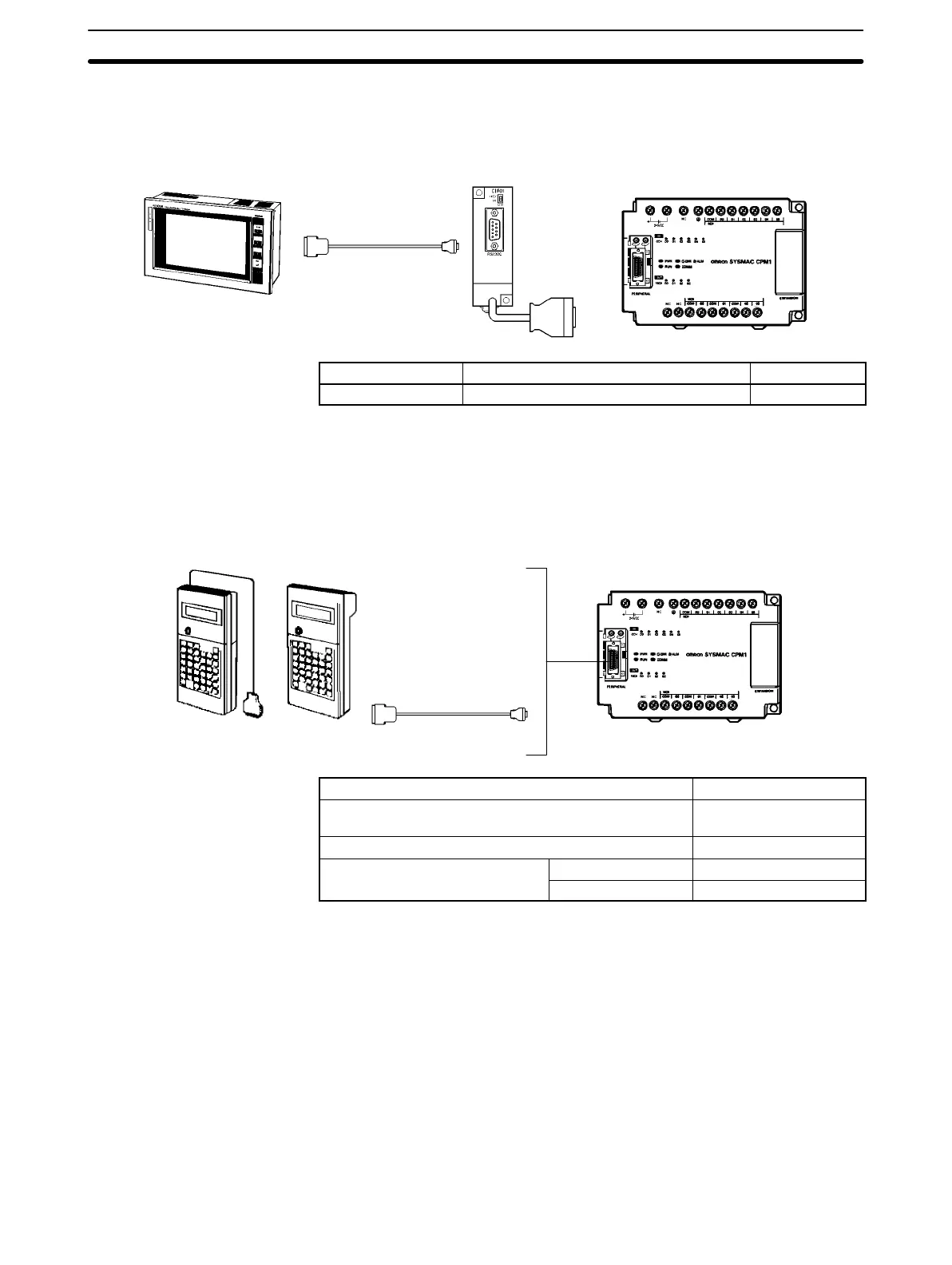

1-2-4 NT Link Communications
Using the NT Link, the CPM1 PC can connected to the Programmable Terminal
(NT Link Interface) through an RS-232C Adapter.
Programmable Terminal
RS-232C Cable
CPM1 CPU UnitRS-232C Adapter
Name Usage Model Number
RS-232C Adapter Converts to the Peripheral Port format. CPM1-CIF01
1-2-5 Peripheral Device Connections
CPM1 programming can be created or edited with a Programming Console or a
personal computer running the SYSMAC Support Software (SSS).
Programming Console A CQM1-PRO01-E or C200H-PRO27-E Programming Console can be con-
nected to the CPM1 as shown in the following diagram.
CQM1-PRO01-E C200H-PRO27-E
C200H-CN222
CPM1 CPU Unit
Name Model Number
CQM1-series Programming Console
(The Connecting Cable is attached.)
CQM1-PRO01-E
C200H-series Programming Console C200H-PRO27-E
C200H-series Connecting Cables
Cable length: 2 m C200H-CN222
Cable length: 4 m C200H-CN422
System Configuration
Section 1-2
