55
4-2 Using a Programming Console
This section provides information on connecting and using a Programming Con-
sole. Refer to 5-4 Programming Console Operation Errors for details on errors
that might occur during Programming Console operations.
4-2-1 Compatible Programming Consoles
There are two Programming Consoles that can be used with the CPM1: the
CQM1-PRO01-E and the C200H-PRO27-E. The key functions for these Pro-
gramming Consoles are identical.
Press and hold the Shift Key to input a letter shown in the upper-left corner of the
key or the upper function of a key that has two functions. For example, the
CQM1-PRO01-E’s AR/HR key can specify either the AR or HR Area; press and
release the Shift Key and then press the AR/HR Key to specify the AR Area.

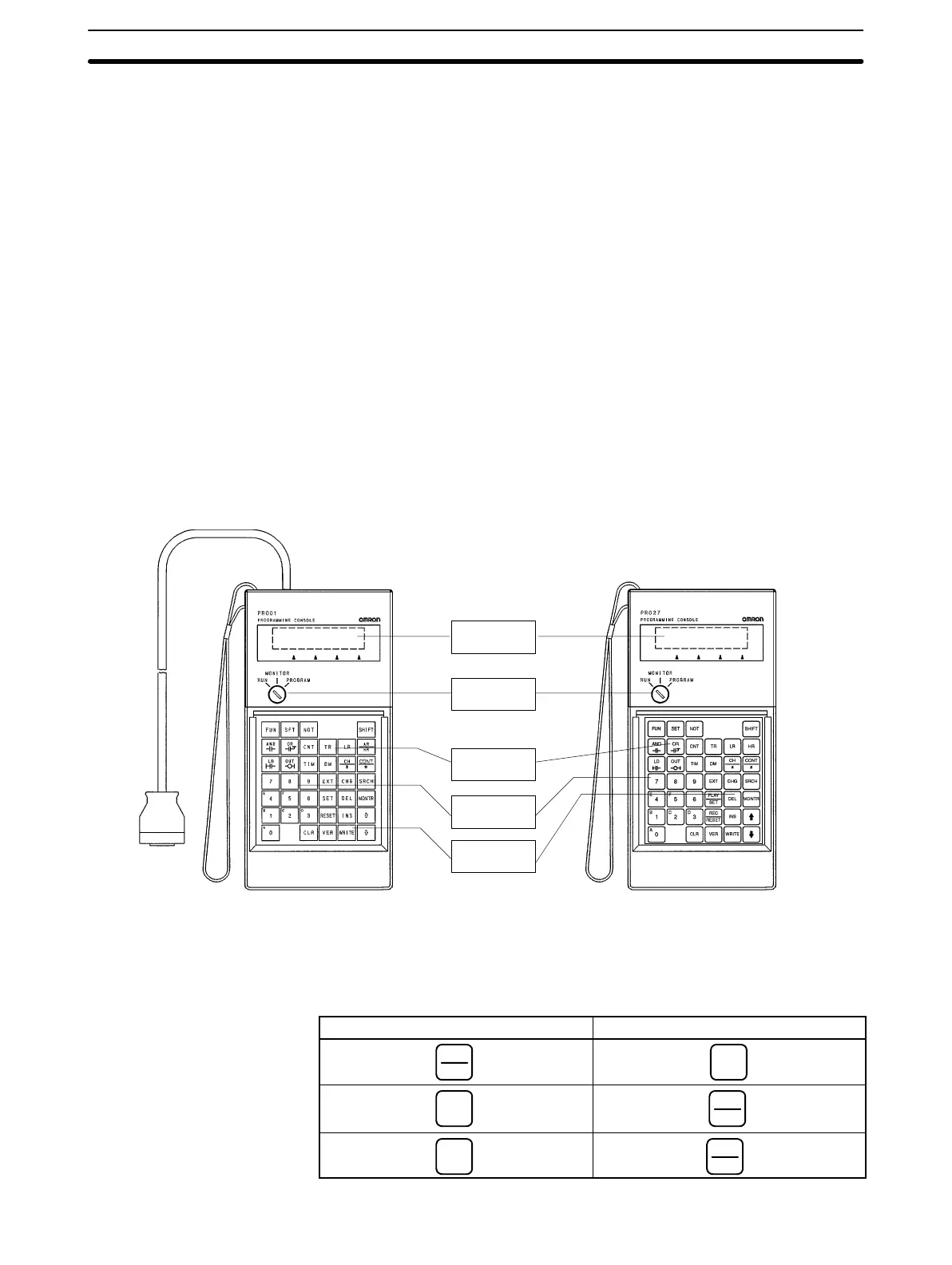

CQM1-PRO01-E
(A 2-m connecting cable is attached.)
C200H-PRO27-E
(Use a C200H-CN222 (2 m) or
C200H-CN422 (4 m) Connecting
Cable.)
LCD display
Mode
selector
CPM1 operating mode
Instruction
keys
Numeric
keys
Operation
keys
The following keys are labeled differently on the CQM1-PRO01-E and the
C200H-PRO27-E, but the operation of the keys in each pair is identical.
CQM1-PRO01-E Keys C200H-PRO27-E Keys
AR
HR
HR
SET
PLAY
SET
RESET
REC
RESET
Using a Programming Console
Section 4-2
