Omron SYSMAC CPM1 User Manual

56

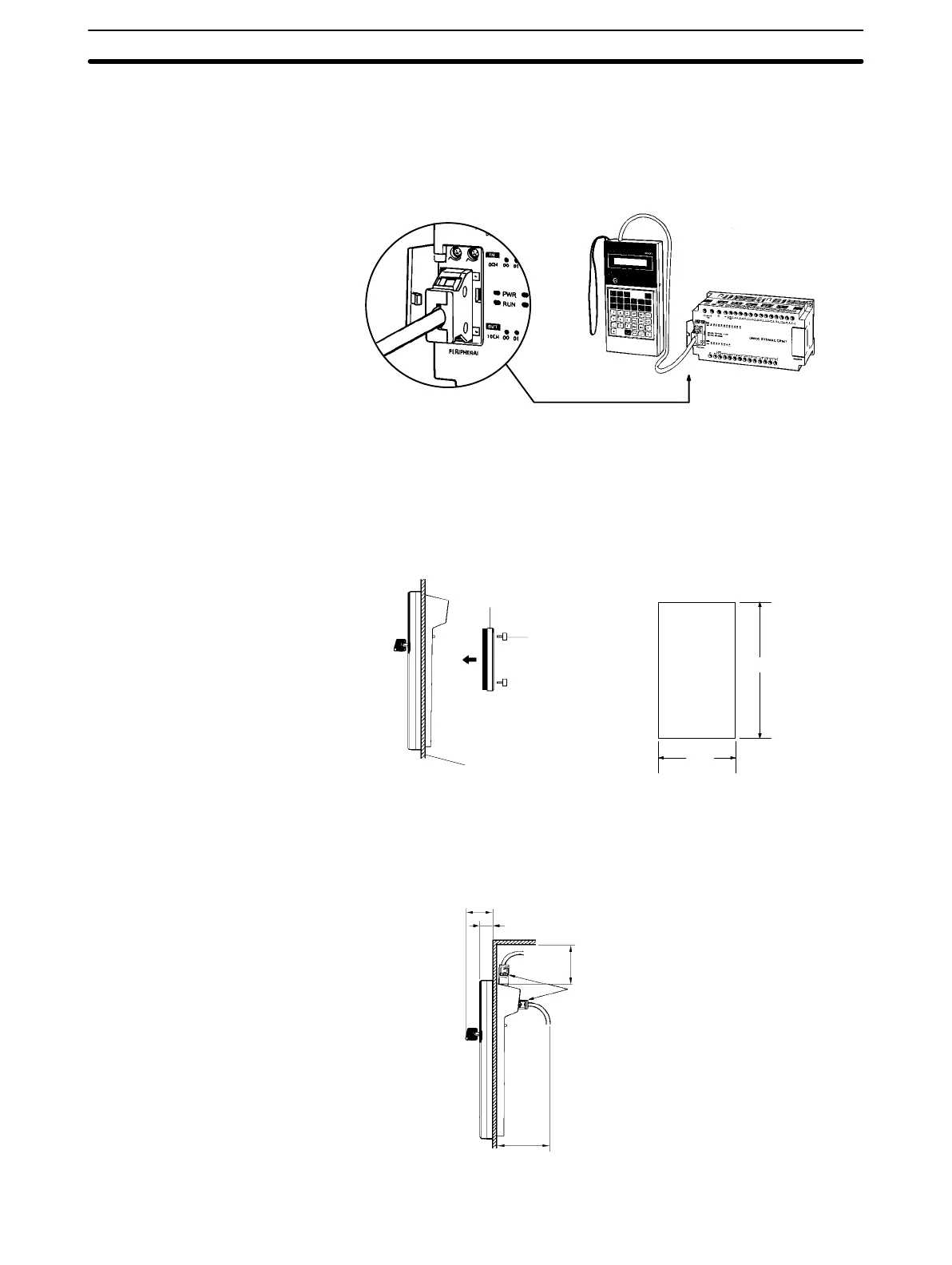

4-2-2 Connecting the Programming Console
Connect the Programming Console’s connecting cable to the CPM1’s periph-
eral port, as shown below.
Panel Installation The C200H-PRO27-E Programming Console can be installed in a control panel
as shown in the following diagram. (The C200H-ATT01 Mounting Bracket is sold
separately.)
Mounting Bracket
Two screws
Panel thickness: 1.0 to 3.2 mm
Mounting hole dimensions
(DIN43700 standards)
186
+1.1
–0
92
+0.8
–0
Allow at least 80 mm for the cable connector above the Programming Console.
About 70 mm is required.
At least 80 mm is required.
Either connector may
be used.
37
15
Using a Programming Console
Section 4-2

Omron SYSMAC CPM1 Specifications

General

Input Voltage	100-240V AC
Supply Voltage	24 VDC or 100-240 VAC (depending on model)
Number of Inputs	6 points
Number of Outputs	4 points
Communication Ports	RS-232
Operating Temperature	0°C to 55°C
Programming Language	Ladder Diagram
Timer/Counter	128 timers/counters
Storage Temperature	-25°C to 70°C
Humidity	10% to 90% (non-condensing)
Type	Programmable Logic Controller (PLC)
