6-18
6
îš„Related parameters
îš„Simple Short Floor Operation Setup
• The short floor function can be activated by setting parameter S3-01 to 1.
• If parameter d1-18 is set to 0 or 3 (multispeed input), the set value of parameter S3-05 is taken as nominal
speed reference for the short floor calculation. Additionally it is required to use the nominal/leveling speed
detection (refer to page 6-6, Nominal / Leveling Speed Detection with Multi Speed Inputs).
• If parameter d1-18 is set to 1 or 2 (dedicated speed inputs), the value of parameter d1-09 is taken as nomi-
nal speed. The set value of S3-05 has no meaning. The nominal/leveling speed detection must not be used.
îš„Advanced Short Floor Operation Setup
• The advanced short floor operation can be activated by setting parameter S3-01 to 2.
• If parameter d1-18 is set to 0 or 3 (multispeed input), the speed reference value, which was selected at the
start, is taken as nominal speed for the speed pattern calculation. Parameter S3-04 is used for the leveling
speed detection (refer to page -6).
• If parameter d1-18 is set to 1 or 2 (dedicated speed input), the value of parameter d1-09 is taken as nominal
speed for the speed pattern calculation.

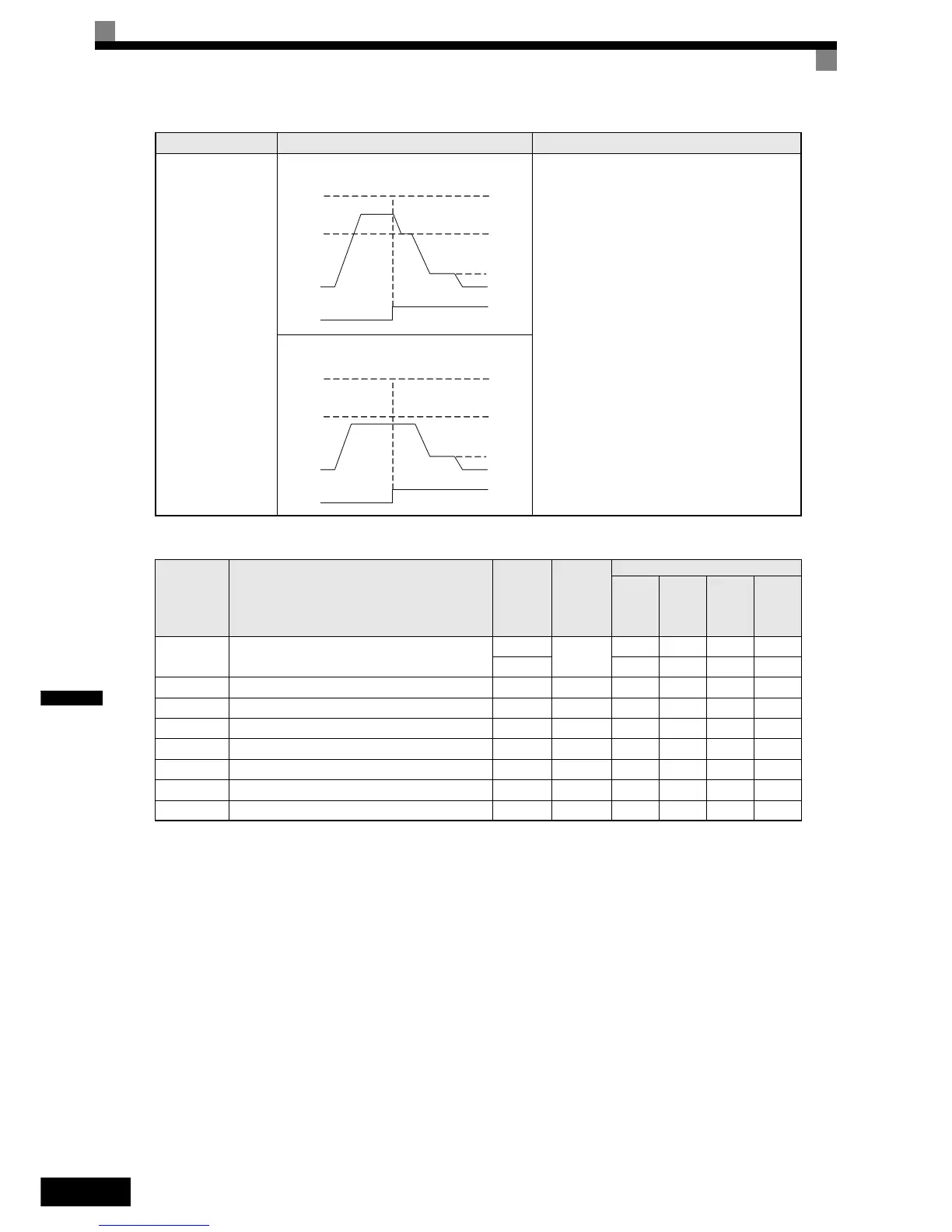

During Run with con-
stant speed
Leveling command during run with constant speed
higher than 40%
No effect
Leveling command during run with constant speed
lower than 40%
Parameter
No.
Name
Factory
Setting
Change
during
Operation
Control Methods
V/f
Open
Loop
Vector
Closed
Loop
Vector
Closed
Loop
Vector
(PM)
d1-09 Nominal Speed
50.00 Hz
No
QQQ -
100.00% - - - Q
d1-18 Speed reference priority selection 1 No A A A A
S3-01 Short floor operation 0 No A A A A
S3-04 Nominal / Leveling Speed detection level 0.0 Hz No A A A A
S3-05 Nominal speed for short floor calculation 0.0Hz No A A A A
S3-20 Minimum constant speed time 0.0 sec. No A A A A
S3-21 Distance calculation acceleration time gain 150.0% No A A A A
S3-22 Distance calculation deceleration time gain 150.0% No A A A A
Condition Standard Short Floor Advanced Short Floor
v
Nominal
V
Leveling
f
out
Leveling
command
40% x
V
Nominal
v
Nominal
V
Leveling
f
out
Leveling
command
40% x
V
Nominal
To Next Page
