6-24
6
îš„Time Chart
The following figure shows the output frequency characteristics when L3-01 is set to 1.

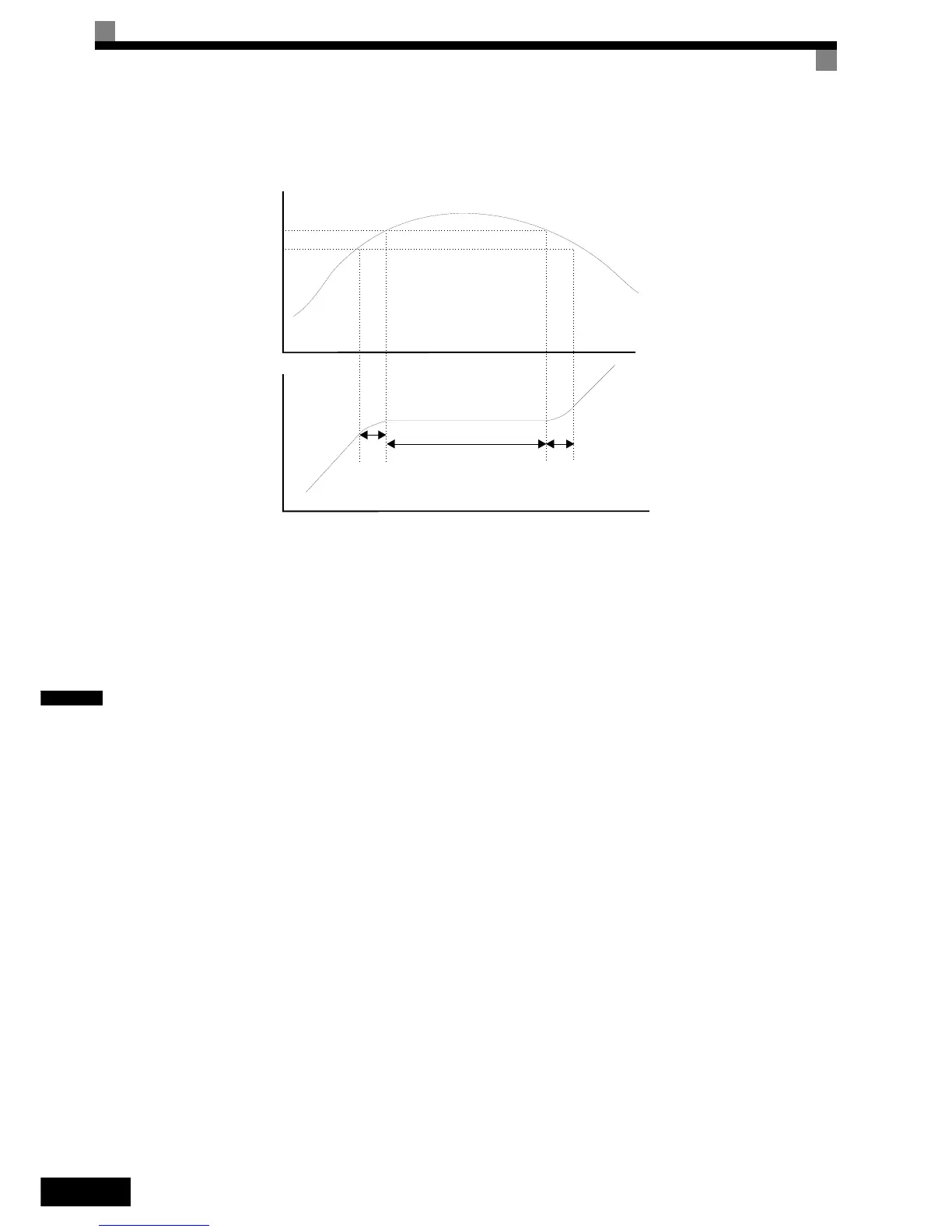

Fig 6.8 Time Chart for Stall Prevention During Acceleration
îš„Setting Precautions
• Set the parameters as a percentage taking the inverter rated current to be 100%.
• Do not increase the stall prevention level unnecessarily. An extremely high setting can reduce the inverter
lifetime. Also do not disable the function.
• If the motor stalls with the factory settings check the V/f pattern settings (E1-) and the motor setup
(E2-).
• If the stall level has to be increased very much to get the elevator running, consider to use a one size bigger
inverter.
Output current
Stall level during
acceleration
Time
Time
Output frequency
* 1. The acceleration rate is lowered.
* 2. The acceleration is stopped to reduce the output current.
*1.
*2.
L3-02
85% of L3-02
