Section 1 FEATURES
ZN
System Manual
Section 1
System Configuration Examples

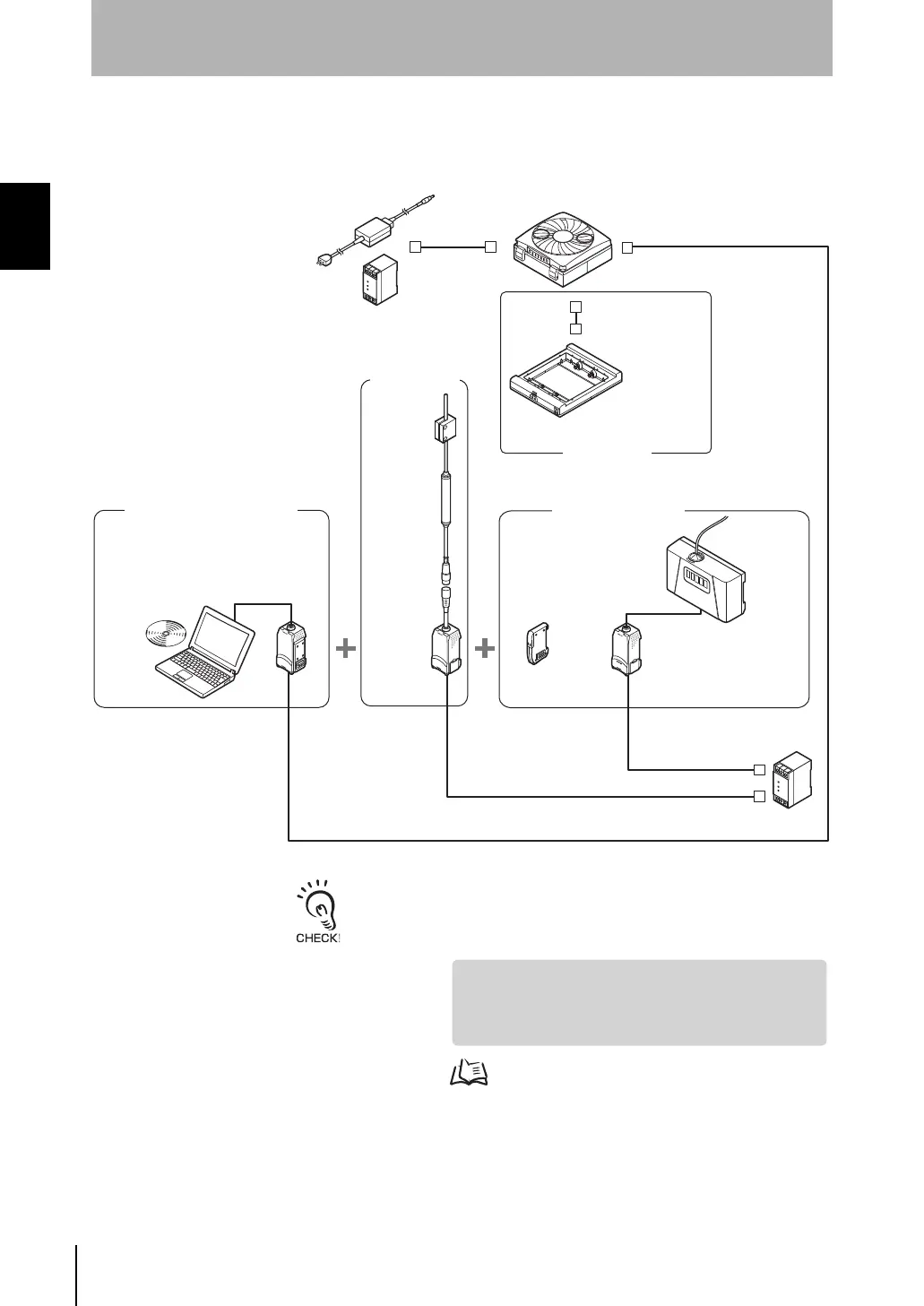

■ Dust Removal and Static Neutralization
Connection Example with Different Models (Electrostatic Sensor)
ZERO ENABLE
(kV)
OPE1
OPE2
OPE3
Z
J
-S
D
A
1
1
OPE1
OPE2
OPE3
ZN
-
SF
1
2
Electrostatic
Sensor
ZN-A2502
ZN-A4105
ZJ-SD100
Sensor
ZJ-SDA11
Amplifier
Unit
ZN-J25A
ZN-J41A
Connector cable
(provided)
DC power
supply
[Features]
• Simultaneous Monitoring of the Ion Balance
• Feedback-based Automatic Adjustment of Air Volume
• Monitoring/Logging the Amount of Particles
Air Clean Unit
Interface
Unit
Realtime
Clean Air Monitor
Clean Monitoring System
ZN-SFW12
Air Particle Sensor
ZN-PD03
Sensor
Amplifier
Unit
ZN-PDA11
Calculating
Unit
ZX-CAL2
Ionizer Unit
AC adapter (provided)
Or, DC power supply
Cable length: standard 2 m
For details on settings, see p.18, p.25.
To extend the cable mentioned above, a commercially available LAN
connector (female to female, straight type) and a LAN cable (straight type:
Category 5E or higher) must be used.
