18
Section 2 UPGRADING THE SYSTEM
ZN
System Manual
Section 2
Setup Methods Suited to Specific Applications
Setup Methods Suited to Specific Applications

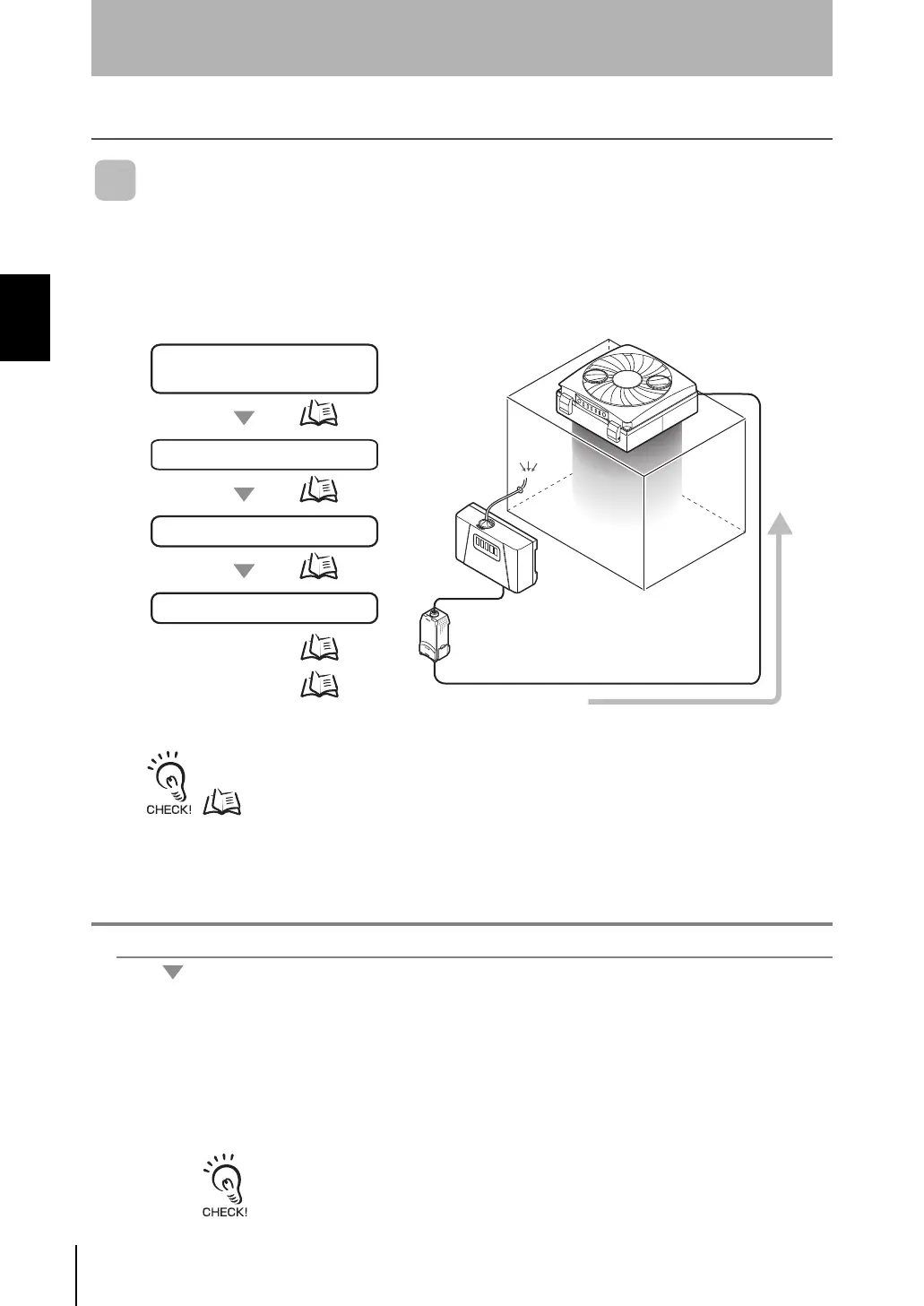

Automatically Adjusting the Air Volume Level
Feedback control is performed between the Air Particle Sensor and Air Clean Unit to
feed in highly clean air (i.e. air containing little dust).
The following describes an example where the air volume level of the Air Clean Unit is
automatically adjusted.
To use multiple Air Particle Sensors or multiple Air Clean Units to apply feedback on the control
loop, configure a multi-clean sensing system using the Interface Unit (ZN-SF12).
p.11
1. Setting the ID of the Air Clean Unit
1. Set DIP switch SW1 on the rear of the Air Clean Unit to ON (external
communications control enabled).
2. Set the ID rotary switch on the rear of the Air Clean Unit to 0 (0ch).
The ID rotary switch must always be set to "0" (0ch) when using the Air Particle Sensor
(ZN-PDA12). Feedback communications cannot be performed when the ID is set to
other than "0" (0ch).
1. Setting the ID of the Air Clean
Unit
2. Connecting peripheral devices
3. Checking communications
4. Setting the feedback conditions
p.18
p.19
p.19
p.20
4-1. Rapid feedback
4-2.
Constant feedback
p.23
2sysup.fm18ページ２００７年６月２８日 木曜日 午前９時１７分
