Section 2 UPGRADING THE SYSTEM
Section 2
Before Upgrading the System
■ Starting Up the Exclusive Monitoring Software
After installation is completed, start up Exclusive Monitoring Software by the following
procedure.

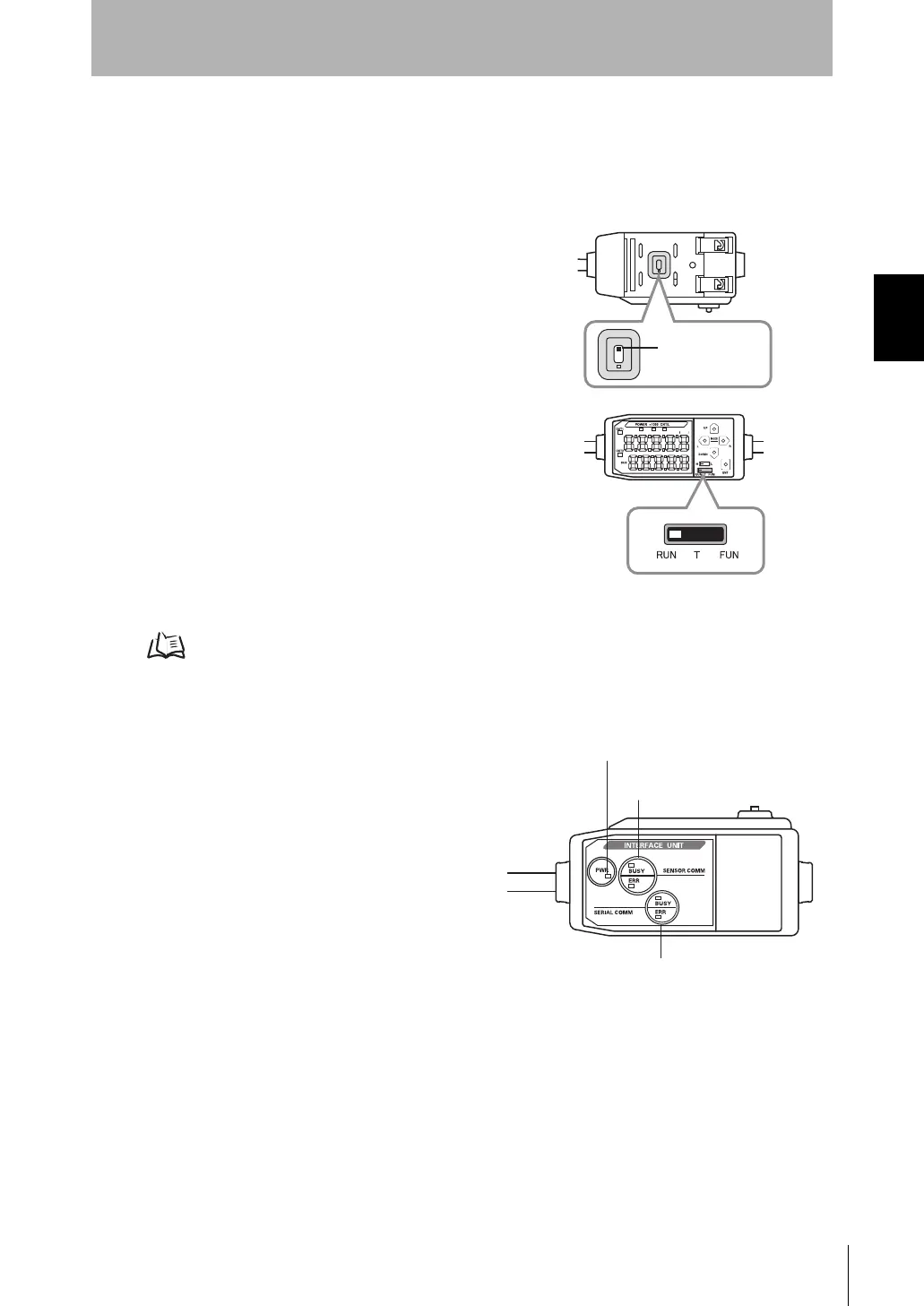

1. Check that the current/voltage switch on the
base of the Interface Unit is set to the side
that has no tab (default).
2. Set the Air Particle Sensor Amplifier Unit to
the RUN mode.
3. Connect the Interface Unit to the personal computer.
To connect to a personal computer (PC/AT compatible), use a 9-pin D-sub cross cable (female to female).
p.64
4. Connect the Interface Unit to the Amplifier Unit.
5.
Turn the power supply of each device ON.
On the ZN-SF11, the ERR indicators for the sensor
communications indicator and external terminal
communications indicator go out.
On the ZN-SF12, the model indication when it is
started up goes out, and the indication changes to
the normal display (measured value display, etc.).
The Interface Unit is now ready for communications.
6.
Start up the exclusive monitoring software.
Communications is automatically started.
■ Exiting the Exclusive Monitoring Software
Exit Exclusive Monitoring Software by the following procedure.
1. Select [File]-[Close] from the Exclusive Monitoring Software menu bar.
CNT/CF
Power indicator
Sensor communication
indicator (BUSY/ERR)
External terminal communication
indicator (BUSY/ERR)
