Dropping the generator set
creates the hazard
of
severe
personal injury or death. Make
sure
no
one
moves the vehicle during
this
procedure and that
the procedure is performed very carefully and
only as instructed.
2.
Use a fork
lift
truck to support the generator set
tray at the points shown in Figure
5-4.
Place a
wooden block on one fork
so
the set will remain
level.
,
3.
Lift the fork lift just
so
it makes contact with the
drip tray, then just put a little upward pressure
under the tray. Verify the weight
of
the generator
set supported by the forks before proceeding.
4.
Remove the bolts that secure the side support to
the drip tray and the underfloor bracket.
5.
Lift generator up slightly until safety catch on
side support is clear of tray. Pull support forward
and upward until disengaged from tray and
underfloor bracket.
6.
Remove the sidesupport to provide the clearance
needed for lowering the set.
7.
Remove the safety catch from the center of each
hinge assembly and then remove the U-shaped
binge pin.
8.
Slowly lower the generator until
it
is clear
of
all
obstructions and can be moved out from under
the recreational vehicle.
M-1601
FORK
LIFT
A'

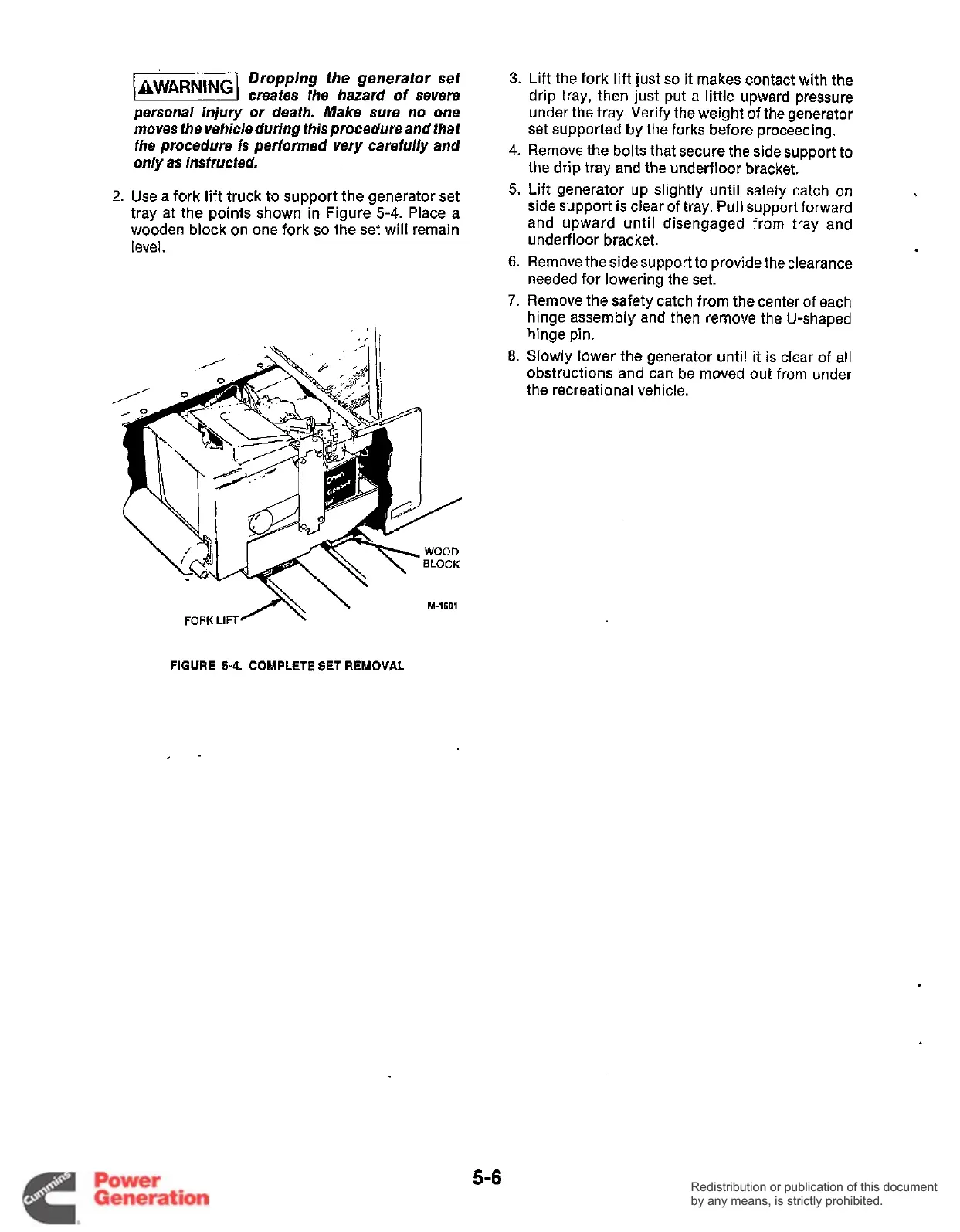

FIGURE
5-4.
COMPLETE SET
REMOVAL
5-6
