THROTTLE
-
FS-1406-2
FIGURE
2.
CARBURETOR ADJUSTMENTS
THROTTL5
SHAFT
AND LEVER
CARBURETOR
OVERHAUL
(Does
not
Apply
to
Spec
G
and
Later)
Carburetion problems that are not corrected by mixture
adjustments are usually a result of gummed-up fuel
passages or worn internal parts. The most effective
solution is a carburetor overhaul.
In general, overhauling a carburetor consists of disas-
sembly, a thorough cleaning, and replacement of worn
parts. Carburetor overhaul kits are available.
General instructions for overhauling a carburetor are
given below. Carefully notethe position of all parts while
removing to assure correct placement when reassemb-
ling. Read through all the instructions before beginning
for a better understanding of the procedures involved.
Carburetor components are shown in Figure
3.
-1
Ignition of fuel can result in severe
personal injury or death.
Do
nof
smoke or allow any spark, pilot light, or arcing equip-
ment near the fuel system.
Removal
1.
Remove air cleaner assembly.
2.
Disconnect governor and throttle linkage, choke
control, and fuel line from carburetor.
FLOAT ASSEMBLY
I
I1
I
FIXED
MAIN
JET
x
THROTTLE STOP
SCREW
:ADJUSTMENT
NEEDLE
'
CAP
FS-1440-3
FIGURE
3.

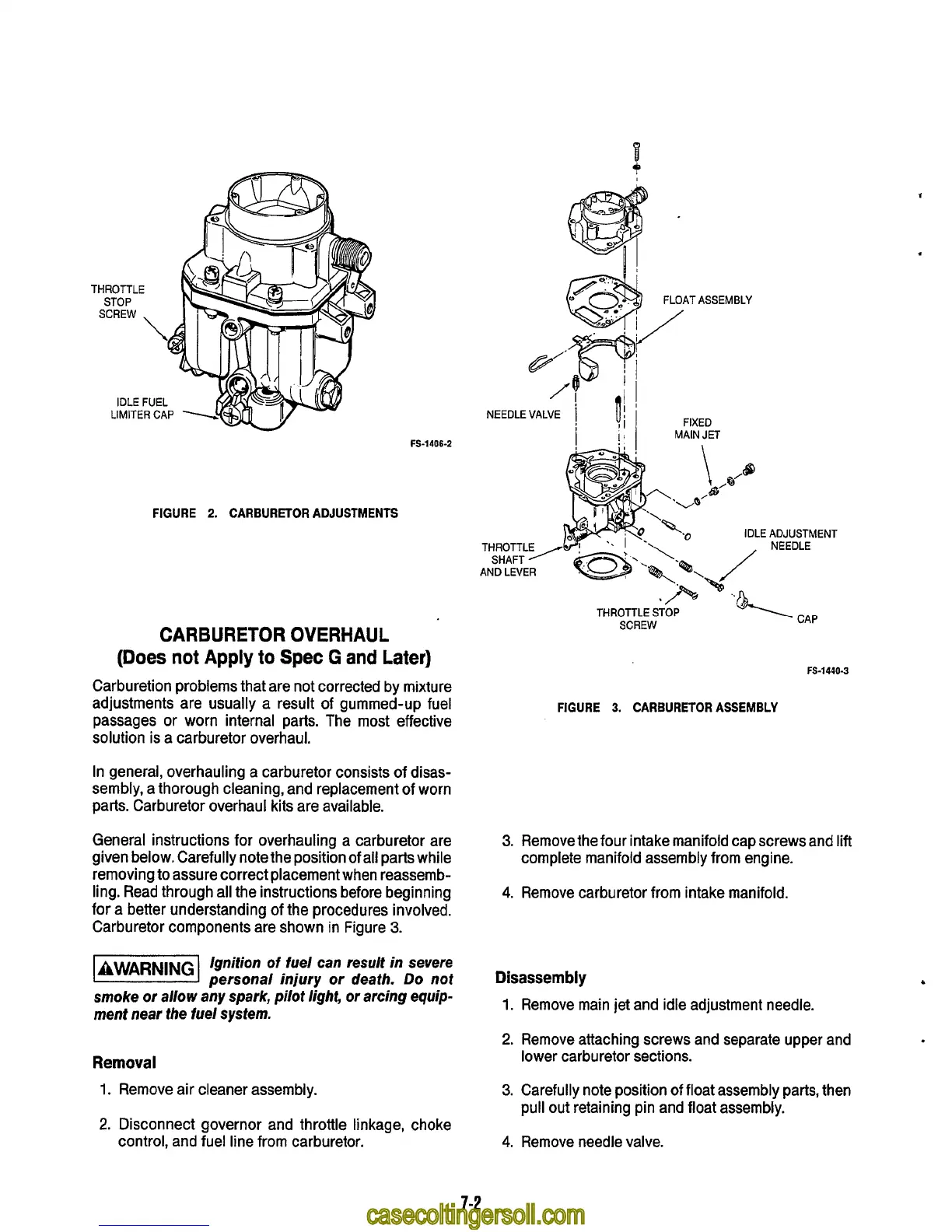

CARBURETOR ASSEMBLY
3.
Remove the four intake manifold cap screws and lift
complete manifold assembly from engine.
4.
Remove carburetor from intake manifold.
Disassembly
1.
Remove main jet and idle adjustment needle.
2.
Remove attaching screws and separate upper and
lower carburetor sections.
3.
Carefully note position of float assembly parts, then
4.
Remove needle valve.
pull out retaining pin and float assembly.
1
7-2
