REAR
BEARING END PLATE
LOCK PIN
ALIGN BEARING OIL HOLES
WITH
OIL
HOLES IN
BEARING BORE
THRUST
WASHER
In the rear bearing plate, install the bearing flush to
1
/64
inch
(0.40
mm) below the end of the bore. Be sure
to align the oil holes in the bearing with the
oil
holes in
the bearing bore (Figure
21).
The
oil
passage must beat
least half open. Lubricate bearing after installation.
If head of lock pin is damaged, use side cutters or Easy
Out tool to remove and install new pin. Oil grooves in
thrust washers must face the crankshaft, and washers
must be flat (not bent). The two notches on each washer
must fit over the two lock pins to prevent riding on the
crankshaft (Figure
21).
PIN 'SHIM
'
BEARING
Lubricate the front main bearing lightly with oil and
insert the crankshaft. With the rear bearing plate gasket
in place and the rear plate bearing lubricated, slide the
thrust washer (grooves toward crankshaft) and plate
over the end of the crankshaft.
A
light film of oil on the
thrust washer may hold it in place while installing
bearing plate over crankshaft. Line up notches of thrust
washer with lock pins before tightening end plate or
lock pins
will
be damaged.

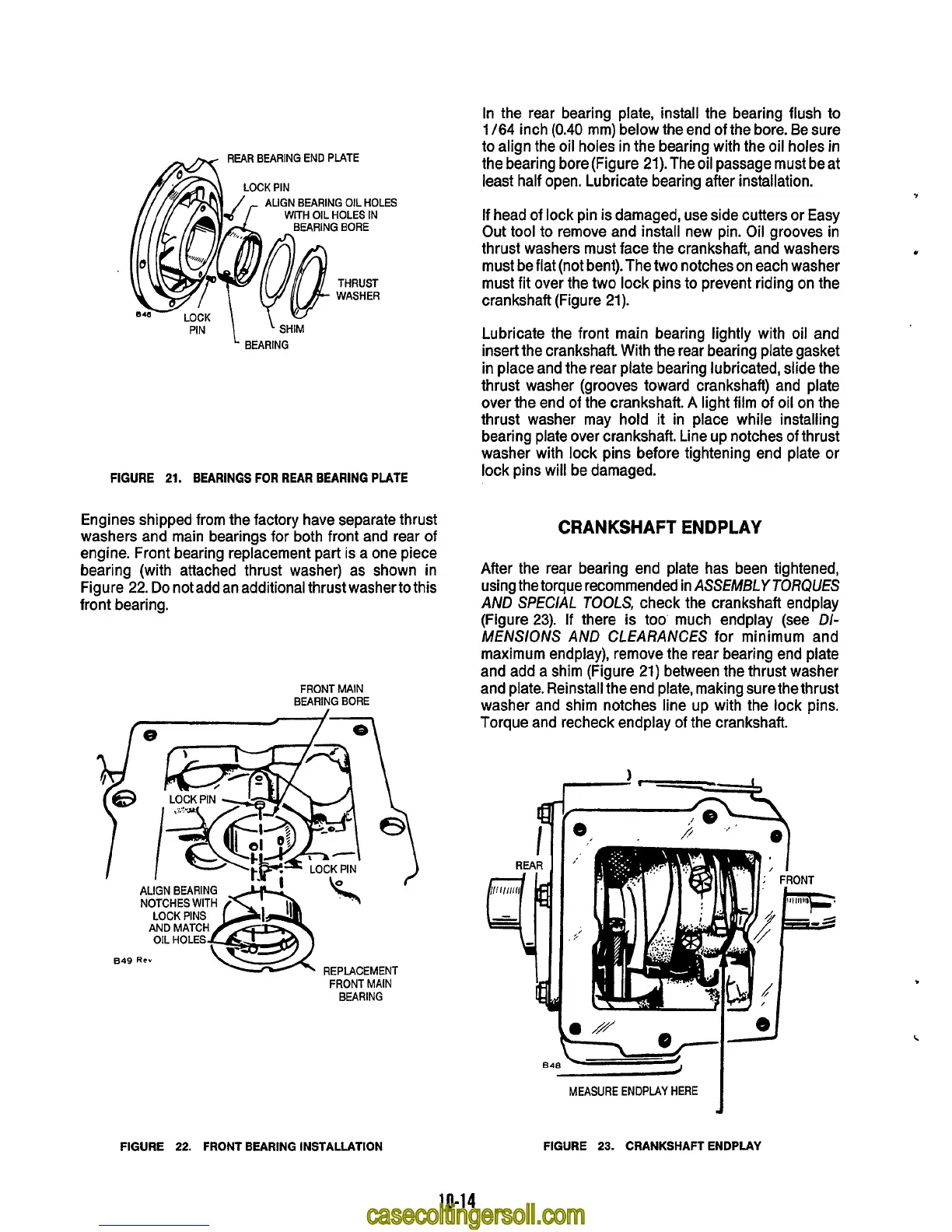

FIGURE
21.
BEARINGS FOR REAR BEARING
PLATE
Engines shipped from the factory have separate thrust
washers and main bearings for both front and rear of
CRANKSHAFT ENDPLAY
engine. Front bearing replacement part is a one piece
bearing (with attached thrust washer) as shown in
Figure
22.
Do
not add an additional thrust washer to this
front bearing.
After the rear bearing end plate has been tightened,
using the torque recommended in
ASSEM€LYTORQUES
AND
SPEClAL TOOLS,
check the crankshaft endplay
(Figure
23).
If
there is too' much endplay (see
DI-
MENSlONS
AND
CLEARANCES
for minimum and
maximum endplay), remove the rear bearing end plate
and add a shim (Figure
21)
between the thrust washer
and plate. Reinstall the end plate, making sure the thrust
washer and shim notches line up with the lock pins.
Torque and recheck endplay of the crankshaft.
FRONT MAIN
BEARING BORE
ALIGN BEARING
NOTCHES WITH
LOCK PINS
OIL HOLES
849
Rev
FRONT
MAIN
BEARING
J
MEASURE ENDPLAY HERE
FIGURE
22.
FRONT
BEARING
INSTALLATION
FIGURE
23.
CRANKSHAFT
ENDPLAY
10-14
