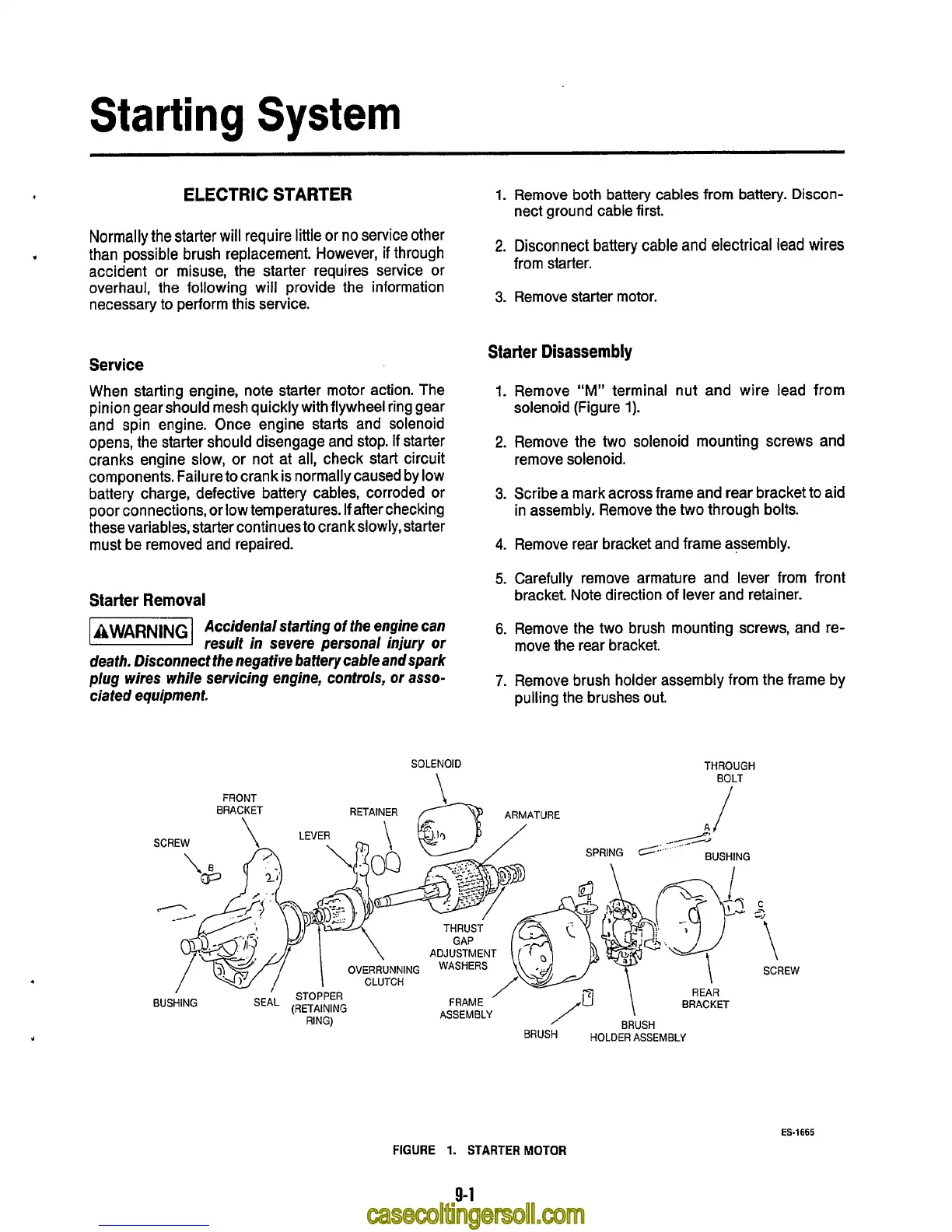

Starting
System
.
ELECTRIC STARTER
Normally the starter will require little or no service other
accident or misuse, the starter requires service or
overhaul, the following will provide the information
necessary to perform this service.
.
than possible brush replacement. However,
if
through
Service
When starting engine, note starter motor action. The
pinion gear should mesh quickly with flywheel ring gear
and spin engine. Once engine starts and solenoid
opens, the starter should disengage and stop.
If
starter
cranks engine slow, or not at all, check start circuit
components. Failure
to
crank is normally caused by low
battery charge, defective battery cables, corroded or
poor connections, or
low
temperatures. If after checking
these variables, starter continues to crank slowly, starter
must be removed and repaired.
Starter Removal
-1
Accidental starting
of
the engine can
result in severe personal injury or
death. Disconnect the negative battery cable andspark
plug wires while servicing engine, controls, or asso-
ciated equipment.
SOLENOID
\
Remove both battery cables from battery.
Discon-
nect ground cable first.
Disconnect battery cable and electrical lead wires
from starter.
Remove starter motor.
Starter Disassembly
1.
2.
3.
4.
5.
6.
7.
Remove
“M”
terminal nut and wire lead from
solenoid (Figure
1).
Remove the two solenoid mounting screws and
remove solenoid.
Scribe a mark across frame and rear bracket to aid
in assembly. Remove the two through
bolts.
Remove rear bracket and frame assembly.
Carefully remove armature and lever from front
bracket. Note direction
of
lever and retainer.
Remove the two brush mounting screws, and re-
move the rear bracket.
Remove brush holder assembly from the frame by
pulling the brushes out.
THROUGH
BOLT
/
FRONT
ADJUSTMENT
’
STOPPER
BUSHING
SEAL
(RETAINING
RING)
REAR
,B
\
BRACKET
BRUSH
/-
FRAME
ASSEMBLY
BRUSH HOLDER ASSEMBLY
C
.-==
-i
\
SCREW
ES-1665
FIGURE
1.
STARTER
MOTOR
9-1
