13
En
Connections
Connections
■ Screw-type speaker terminals
Strip 1/2" to 5/8" (12 to 15 mm) of insulation from the
ends of the speaker cables, and twist the bare wires
tightly, as shown.
■ Banana Plugs (North American models)
• If you are using banana plugs, tighten the speaker terminal before inserting the banana plug.
• Do not insert the speaker code directly into the center hole of the speaker terminal.

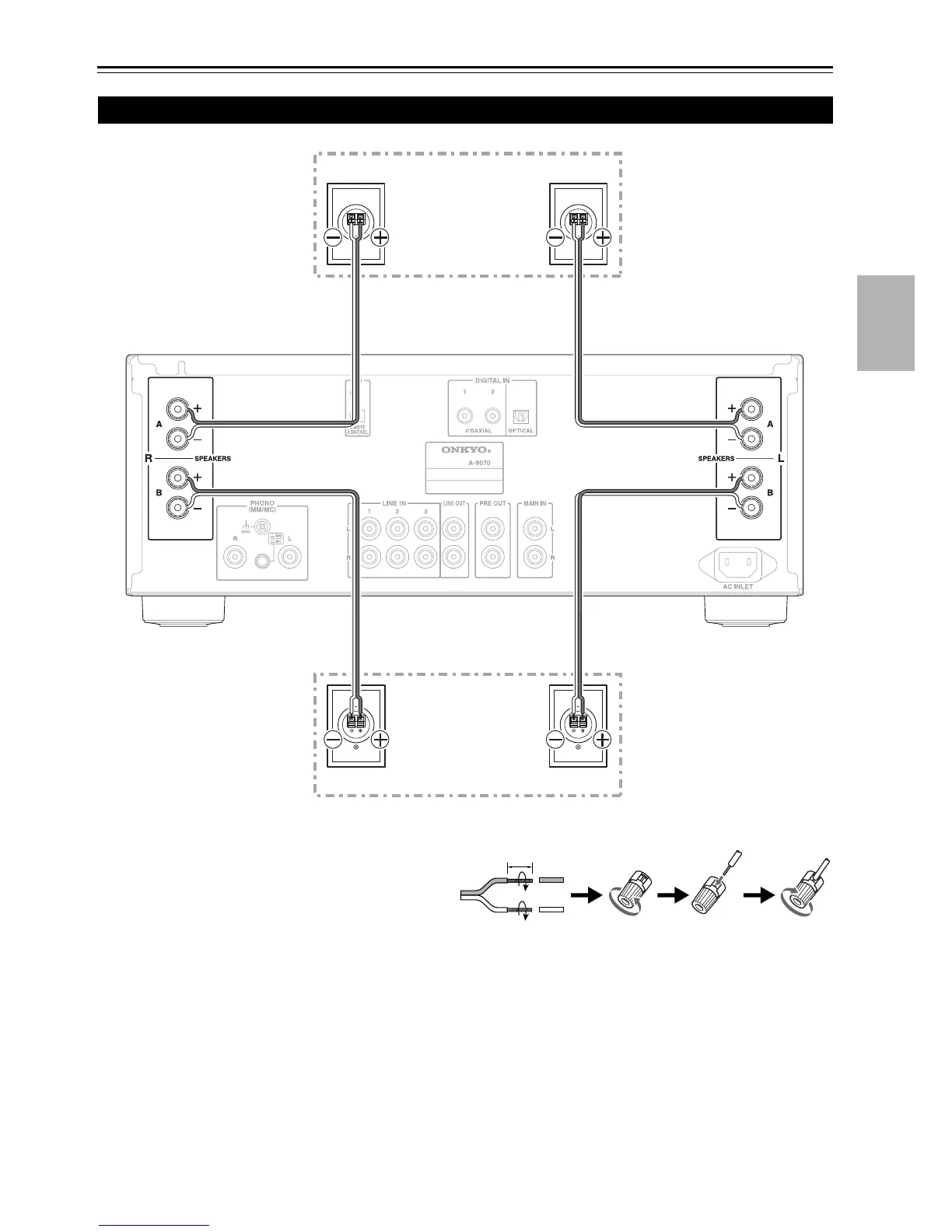

Connecting Your Speakers
Speakers A
Speakers B
Right Left
Right Left
1/2" to 5/8" (12 to 15 mm)
To Next Page
