Onkyo A-9070 User Manual

11
En
a SPEAKERS A terminals
Connect Speakers A.
b u REMOTE CONTROL jacks
Connect Onkyo components such as Onkyo Docks,
CD Players, or Network Tuner with u (Remote
Interactive) jacks.
c DIGITAL IN COAXIAL 1/2 jacks
Connect components such as CD players with coaxial
digital audio output.
d DIGITAL IN OPTICAL jack
Connects components such as CD players with optical
digital audio output.
e SPEAKERS B terminals
Connect Speakers B.
f PHONO (MM/MC) L/R jacks
Connect a turntable with analog audio output.
g MM/MC selector
Set this selector according to the turntable’s cartridge
format ( MM/ MC).
h GND screw
Connects the turntable’s ground wire.
i LINE IN 1/2/3 L/R jacks
Connect playback devices with analog audio output.
j LINE OUT L/R jacks
Connect components such as analog line-level
sources. The input signals are output with no level
adjustment.
k PRE OUT L/R jacks
Connect a power amplifier when the integrated
amplifier is used as a preamplifier (Pre mode).
l MAIN IN L/R jacks
Connect a preamplifier when the integrated amplifier
is used as a power amplifier (Main mode).
m AC INLET
Connects the supplied power cord. The other end of
the power cord should be connected to a suitable wall
outlet.

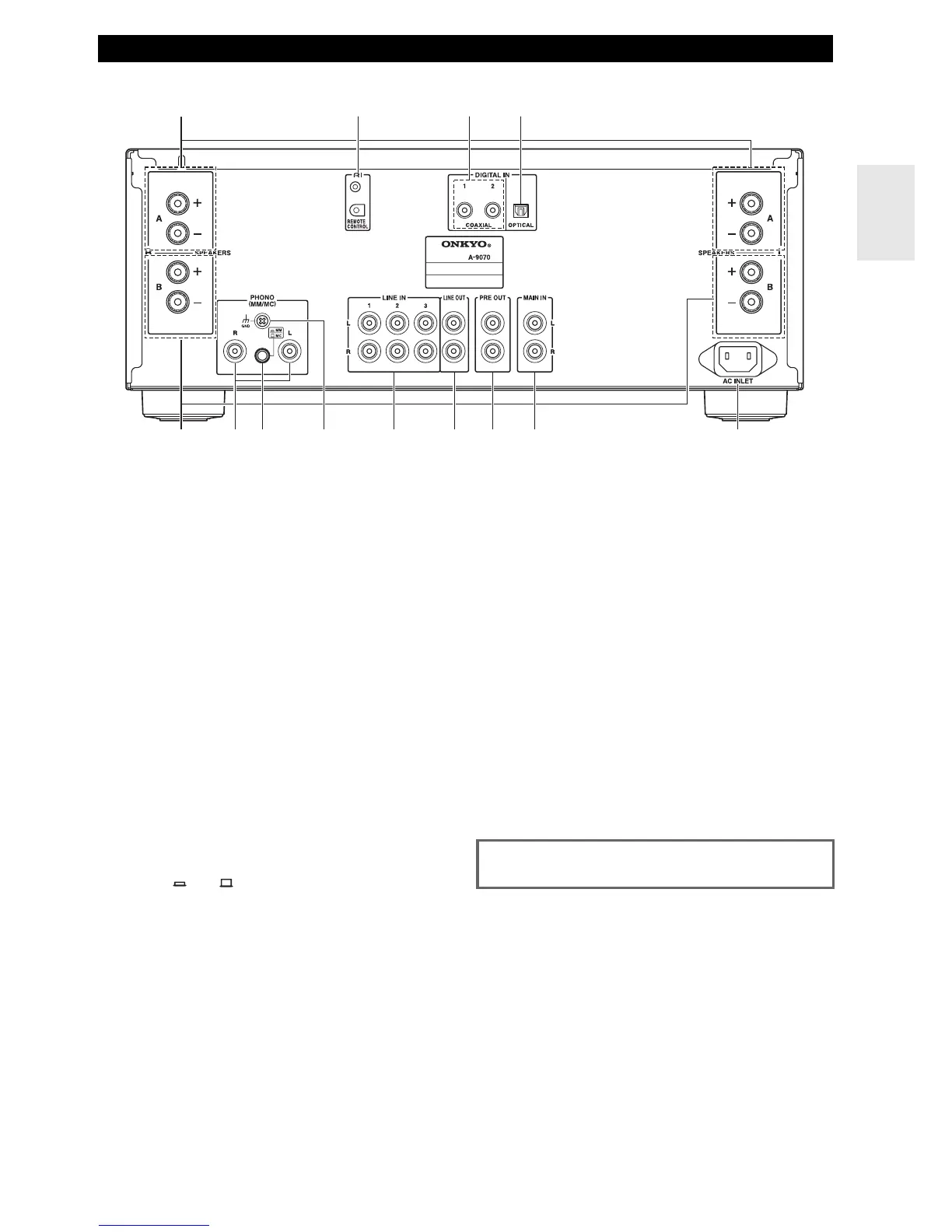

Rear Panel
a b
c
d
e f h i j k l mg
See “Connections” for connection information
(➔ pages 13 to 25).

Onkyo A-9070 Specifications

General

Damping factor	130
Amplifier class	-
Input sensitivity	150 mV
Audio output channels	2.0 channels
Peak power per channel	140 W
Signal-to-Noise Ratio (SNR)	107 dB
Total Harmonic Distortion (THD)	0.006 %
Dynamic power per channel (3 Ohm)	230 W
Dynamic power per channel (4 Ohm)	180 W
Dynamic power per channel (8 Ohm)	100 W
AC (power) in	Yes
Headphone connectivity	6.3 mm
Speakers connectivity type	RCA
Purpose	Home
Product color	Black
Volume control	Rotary
Cables included	AC
Connectivity technology	Wired
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (typical)	290 W

Weight and Dimensions

Depth	431 mm
Width	435 mm
Height	174.5 mm
Weight	18100 g
