Onkyo A-9070 User Manual

18
En
This is an example of connection using the Onkyo Digital Media Transport.
Note
• Use only an Onkyo Dock with digital connections.
• To use the
u (Remote Interactive) connection, you need to change the names of inputs (➔ pages 20, 35).
Tip
• Connect the Onkyo Dock to either of the following jacks: COAXIAL 1/2, OPTICAL.

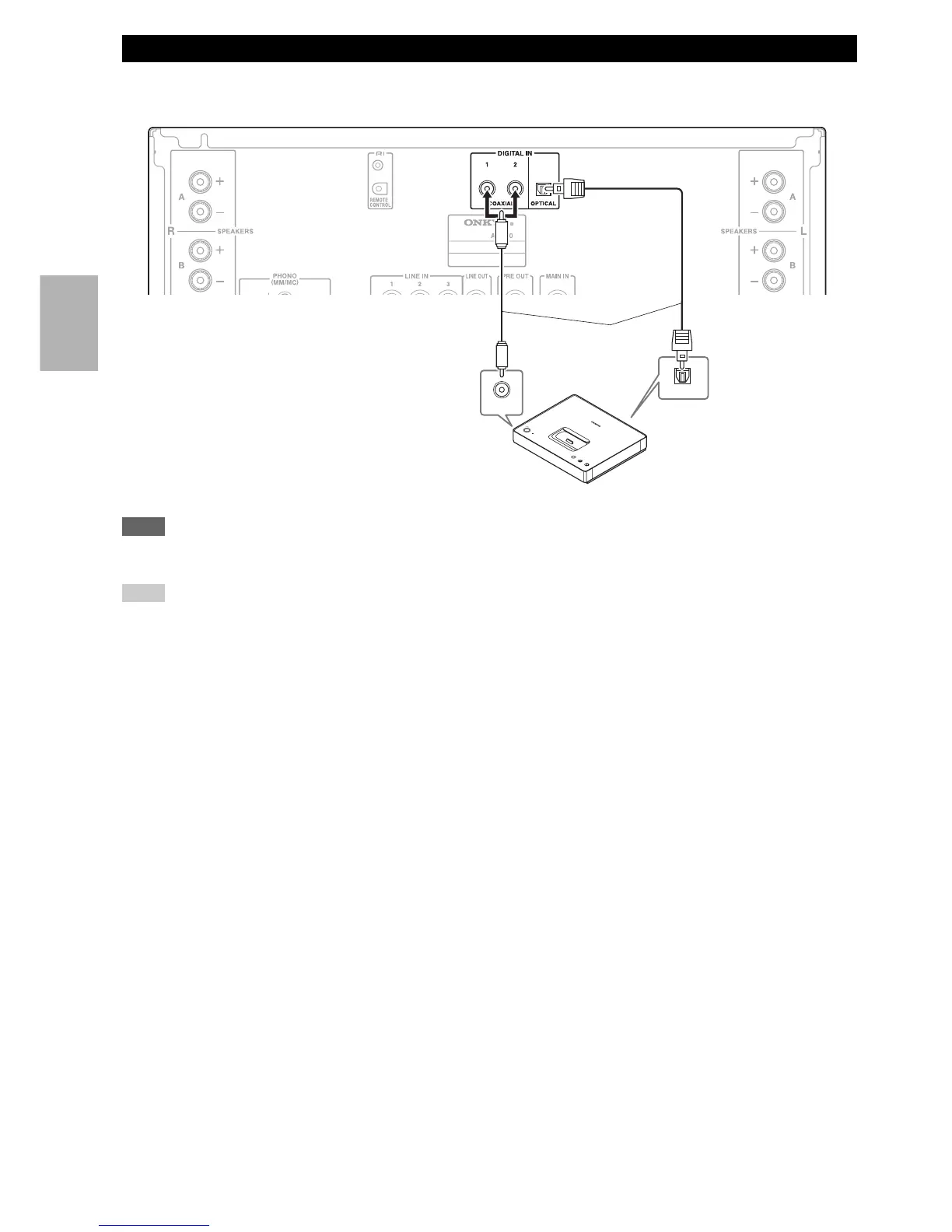

Connecting an Onkyo Dock
COAXIAL
OPTICAL
Y
B
D
N
A
T
S
/
NO
Y
B
D
N
A
T
S
d
o
P
i
C
P
/
C
N
Y
S
C
N
Y
S
N
U
Integrated Amplifier A-9070
Connect either of them.
Digital Media Transport

Onkyo A-9070 Specifications

General

Damping factor	130
Amplifier class	-
Input sensitivity	150 mV
Audio output channels	2.0 channels
Peak power per channel	140 W
Signal-to-Noise Ratio (SNR)	107 dB
Total Harmonic Distortion (THD)	0.006 %
Dynamic power per channel (3 Ohm)	230 W
Dynamic power per channel (4 Ohm)	180 W
Dynamic power per channel (8 Ohm)	100 W
AC (power) in	Yes
Headphone connectivity	6.3 mm
Speakers connectivity type	RCA
Purpose	Home
Product color	Black
Volume control	Rotary
Cables included	AC
Connectivity technology	Wired
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (typical)	290 W

Weight and Dimensions

Depth	431 mm
Width	435 mm
Height	174.5 mm
Weight	18100 g
