Bi-wiring Connection
Bi-wiring provides improved bass and treble performance. Using terminals of both SPEAKERS A and SPEAKERS B,
it separates high frequency from low frequency signals.
Tip
• As shown on the illustration, the wiring terminals of SPEAKERS A are connected to the woofer and SPEAKERS B are connected
to the tweeter. However, wiring them the other way around is also possible.
Important:
• Bi-wiring can be used only with speakers that support bi-wiring. Refer to your speaker manual.
• When making the bi-wiring connections, be sure to remove the jumper bars that link the speakers’ tweeter (high) and woofer (low)
terminals.
• When making the bi-wiring connections, set SPEAKERS to A+B (➔ page 27).

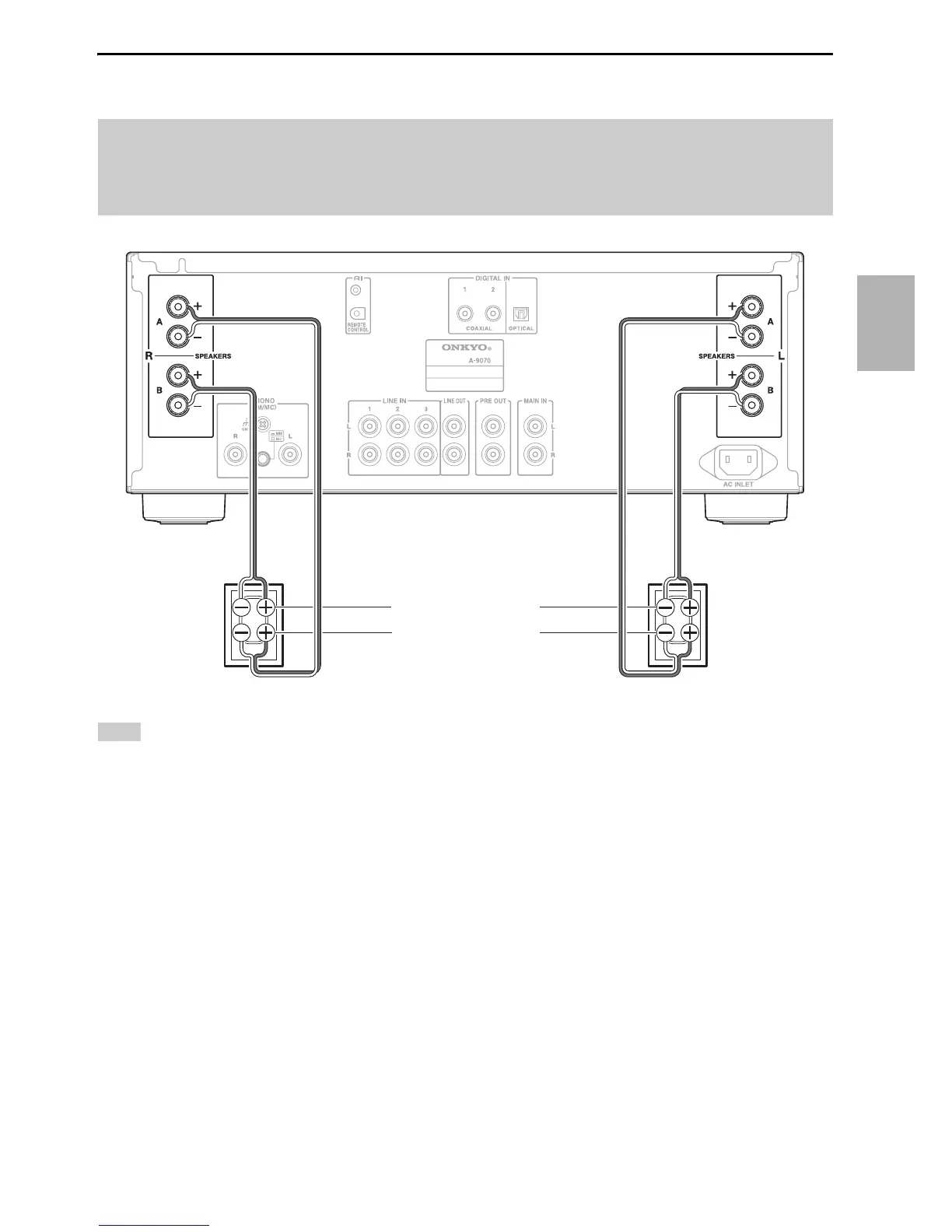

Right speaker Left speaker
Tweeter (high)
Woofer (low)
