Opengear ACM7000 User Manual

Chapter 6: Alerts, Auto-Response & Logging
106
5.1 Configuring for SSH Tunneling to Hosts

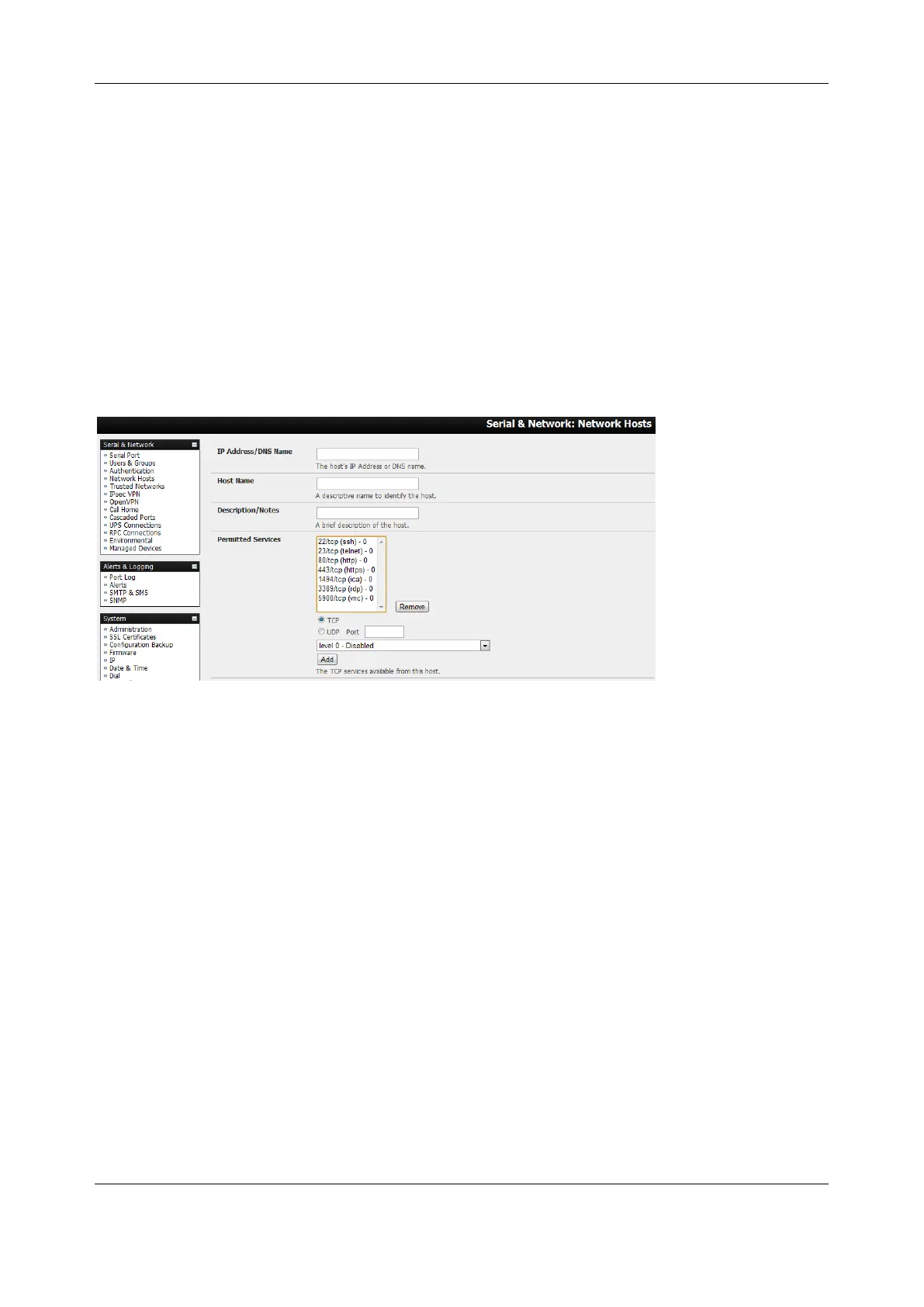

To set up the console server for SSH tunneled access a network attached host, add the new host and the
permitted services using the Serial & Network > Network Hosts menu as detailed in Network Hosts. Only
these permitted services are forwarded through by SSH to the host. All other services (TCP/UDP ports)
are blocked.
Some of the TCP Ports used by SDT in the console server:
22 SSH (All SDT Tunneled connections)
23 Telnet on local LAN (forwarded inside tunnel)
80 HTTP on local LAN (forwarded inside tunnel)
3389 RDP on local LAN (forwarded inside tunnel)
5900 VNC on local LAN (forwarded inside tunnel)
73XX RDP over serial from local LAN – where XX is the serial port number (i.e. 7301to 7348 on
a 48 port console server)
79XX VNC over serial from local LAN – where XX is the serial port number
Add new users using Serial & Network > Users & Groups menu as detailed in Network Hosts. Users can
be authorized to access the console server ports and specified network-attached hosts. To simplify
configuration, an administrator can first set up groups with group access permissions, users can be
classified as members of particular groups.
5.2 SDT Connector Client Configuration
The SDT Connector client works with all Opengear console servers. Each of these remote console servers
have an embedded OpenSSH based server which can be configured to port forward connections from the
SDT Connector client to hosts on their local network as detailed in the previous chapter. The SDT
Connector can also be pre-configured with the access tools and applications that are available to run
when access to a particular host has been established.
SDT Connector can connect to the console server using an alternate OOB access. It can also access the
console server and access devices connected to serial ports on the console server.
To operate SDT Connector, add new gateways to the client software by entering the access details for
each console server and let the client auto-configure with all host and serial port connections from each
console server. Point-and-click to connect to the Hosts and serial devices.
Or you can add network connected hosts and configure new services to be used in accessing the console
server and the hosts and configure clients to run on the PC that uses the service to connect to the hosts

Opengear ACM7000 Specifications

General

RS-232 ports	8
SIM card slot	Yes
USB 2.0 ports quantity	4
Number of simultaneous SIM cards	2
Certification	EN 55022:2010, CISPR 22:2008, FCC Part 15 B:2015, ICES-003 5 (2014), AS/NZS CISPR 22:2009+A1:2010, EN 61000-3-2:2006/A2:2009, EN 61000-3-3:2008 EN 55024:2010, CISPR 24:2010, EN 61000-4-2:2009, EN 61000-4-3:2006+A2:2010, EN 61000-4-4:2004+A1:2010, EN 61000-4-5:2006, EN 61000-4-6:2009, EN 61000-4-8:2010, EN 61000-4-11:2004 CE, UL 1950, TUV, C-Tick, RoHS
Mounting type	Rack mounting
Product color	Black, Red
Antenna connector type	SMA
Flash memory	32 MB
Internal memory	256 MB
Processor frequency	800 MHz
Control display unit	No
Internal memory type	DDR3
Input voltage	110 - 240 V
DC input voltage	12 V
Storage temperature (T-T)	-40 - 75 °C
Operating temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	5 - 90 %
Security algorithms	IPSec, SSH-2, SSL/TLS

Weight and Dimensions

Depth	120 mm
Width	130 mm
Height	35 mm
Weight	6000 g
