Opengear ACM7000 User Manual

Chapter 3: Serial Port, Device and User Configuration
42
There are no limits on the number of users you can set up or the number of users per serial port or host.
Multiple users can control/monitor the one port or host. There are no limits on the number of groups and
each user can be a member of a number of groups. A user does not have to be a member of any groups,
but if the user is a member of the default user group, they will not be able to use the Management Console
to manage ports.
While there are no limits, the time to re-configure increases as the number and complexity increases. We
recommend the aggregate number of users and groups be kept under 250.
The administrator can also edit the access settings for any existing users:
•
Select Serial & Network > Users & Groups and click Edit to modify the user access privileges
•
Click Delete to remove the user
•
Click Disable to temporarily block access privileges
3.3 Authentication
See Chapter 8 for authentication configuration details.
3.4 Network Hosts
To monitor and remotely access a locally networked computer or device (referred to as a Host) you must
identify the Host and specify the TCP or UDP ports/services used to control that Host:

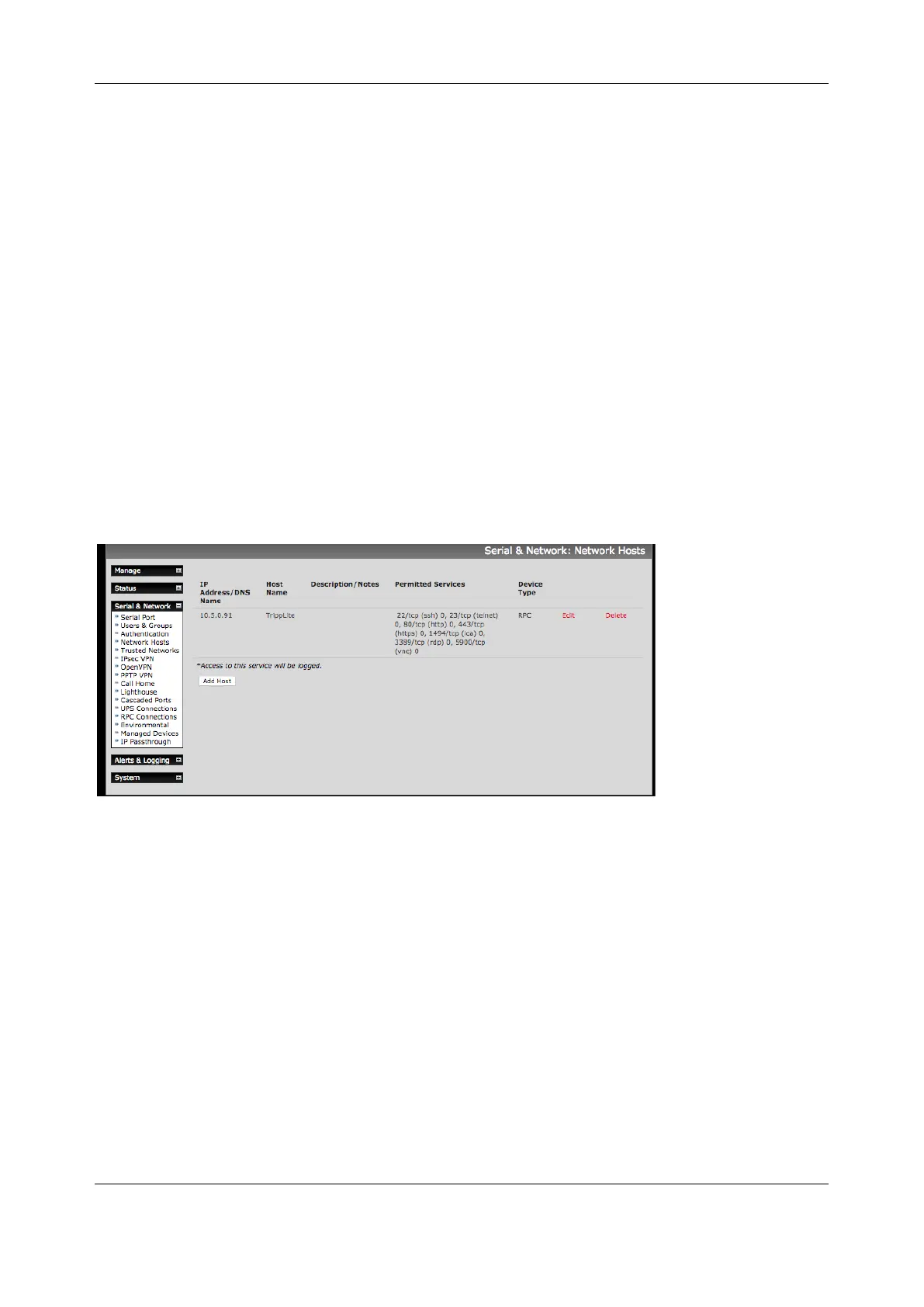

1. Selecting Serial & Network > Network Hosts presents all the network connected Hosts that have
been enabled for access, and the related access TCP ports/services
2. Click Add Host to enable access to a new Host (or select Edit to update the settings for existing
Host)

Opengear ACM7000 Specifications

General

RS-232 ports	8
SIM card slot	Yes
USB 2.0 ports quantity	4
Number of simultaneous SIM cards	2
Certification	EN 55022:2010, CISPR 22:2008, FCC Part 15 B:2015, ICES-003 5 (2014), AS/NZS CISPR 22:2009+A1:2010, EN 61000-3-2:2006/A2:2009, EN 61000-3-3:2008 EN 55024:2010, CISPR 24:2010, EN 61000-4-2:2009, EN 61000-4-3:2006+A2:2010, EN 61000-4-4:2004+A1:2010, EN 61000-4-5:2006, EN 61000-4-6:2009, EN 61000-4-8:2010, EN 61000-4-11:2004 CE, UL 1950, TUV, C-Tick, RoHS
Mounting type	Rack mounting
Product color	Black, Red
Antenna connector type	SMA
Flash memory	32 MB
Internal memory	256 MB
Processor frequency	800 MHz
Control display unit	No
Internal memory type	DDR3
Input voltage	110 - 240 V
DC input voltage	12 V
Storage temperature (T-T)	-40 - 75 °C
Operating temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	5 - 90 %
Security algorithms	IPSec, SSH-2, SSL/TLS

Weight and Dimensions

Depth	120 mm
Width	130 mm
Height	35 mm
Weight	6000 g
