Opengear ACM7000 User Manual

Chapter 12: Management
218

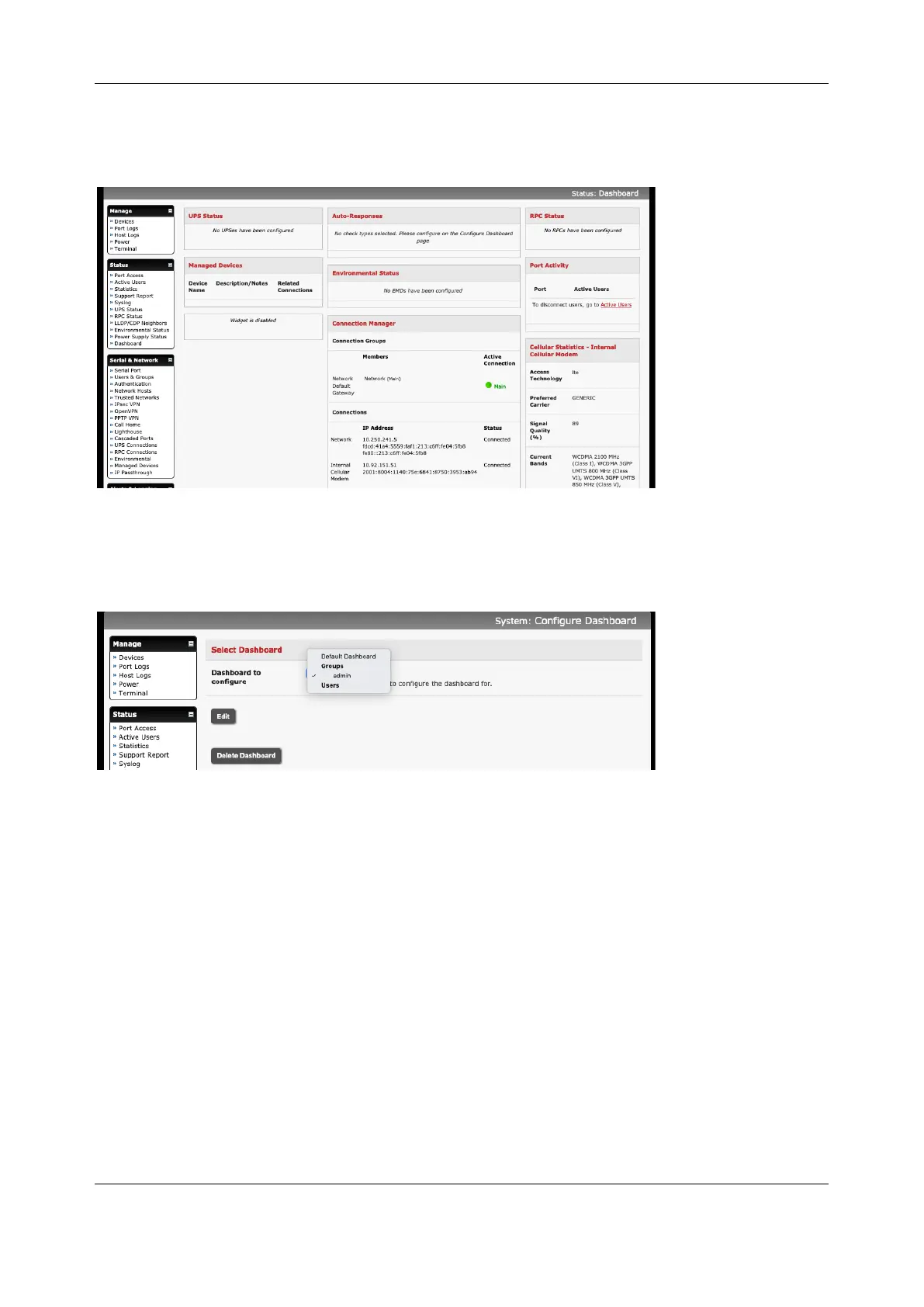

11.5 Dashboard
The Dashboard provides administrators with a summary of the status of the console server and its
managed devices. Custom dashboards can be configured for each user groups.
11.5.1 Configuring the Dashboard
Admin group users can configure and access the dashboard. To configure a custom dashboard:
Select System > Configure Dashboard and select the user (or group) you are configuring this custom
dashboard layout for
You can configure a custom dashboard for any admin user or for the admin group or you can reconfigure
the default dashboard.
The Status > Dashboard screen is the first screen displayed when admin users (other than root) log into
the console manager. If you log in as John, are in the admin group, and there is a dashboard layout
configured for John, the dashboard for John appears on log-in and when you click on the Status >
Dashboard menu item.
If there is no dashboard layout configured for John but there is an admin group dashboard configured, you
see the admin group dashboard. You will see the default dashboard if there is no user dashboard or admin
group dashboard configured.
The root user does not have its own dashboard.
The above configuration options are intended to enable admin users to setup their own custom
dashboards.

Opengear ACM7000 Specifications

General

RS-232 ports	8
SIM card slot	Yes
USB 2.0 ports quantity	4
Number of simultaneous SIM cards	2
Certification	EN 55022:2010, CISPR 22:2008, FCC Part 15 B:2015, ICES-003 5 (2014), AS/NZS CISPR 22:2009+A1:2010, EN 61000-3-2:2006/A2:2009, EN 61000-3-3:2008 EN 55024:2010, CISPR 24:2010, EN 61000-4-2:2009, EN 61000-4-3:2006+A2:2010, EN 61000-4-4:2004+A1:2010, EN 61000-4-5:2006, EN 61000-4-6:2009, EN 61000-4-8:2010, EN 61000-4-11:2004 CE, UL 1950, TUV, C-Tick, RoHS
Mounting type	Rack mounting
Product color	Black, Red
Antenna connector type	SMA
Flash memory	32 MB
Internal memory	256 MB
Processor frequency	800 MHz
Control display unit	No
Internal memory type	DDR3
Input voltage	110 - 240 V
DC input voltage	12 V
Storage temperature (T-T)	-40 - 75 °C
Operating temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	5 - 90 %
Security algorithms	IPSec, SSH-2, SSL/TLS

Weight and Dimensions

Depth	120 mm
Width	130 mm
Height	35 mm
Weight	6000 g
