Opengear ACM7000 User Manual

Chapter 3: Serial Port, Device and User Configuration
38
3.1.9 USB Consoles
Console servers with USB ports support USB console connections to devices from a wide range of
vendors, including Cisco, HP, Dell and Brocade. These USB ports can also function as plain RS-232 serial
ports when a USB-to-serial adapter is connected.
These USB ports are available as regular portmanager ports and are presented numerically in the web UI
after all RJ45 serial ports.
The ACM7008-2 has eight RJ45 serial ports on the rear of the console server and four USB ports on the
front. In Serial & Network > Serial Port these are listed as
Port # Connector
1 RJ45
2 RJ45
3 RJ45
4 RJ45
5 RJ45
6 RJ45
7 RJ45
8 RJ45
9 USB
10 USB
11 USB
12 USB

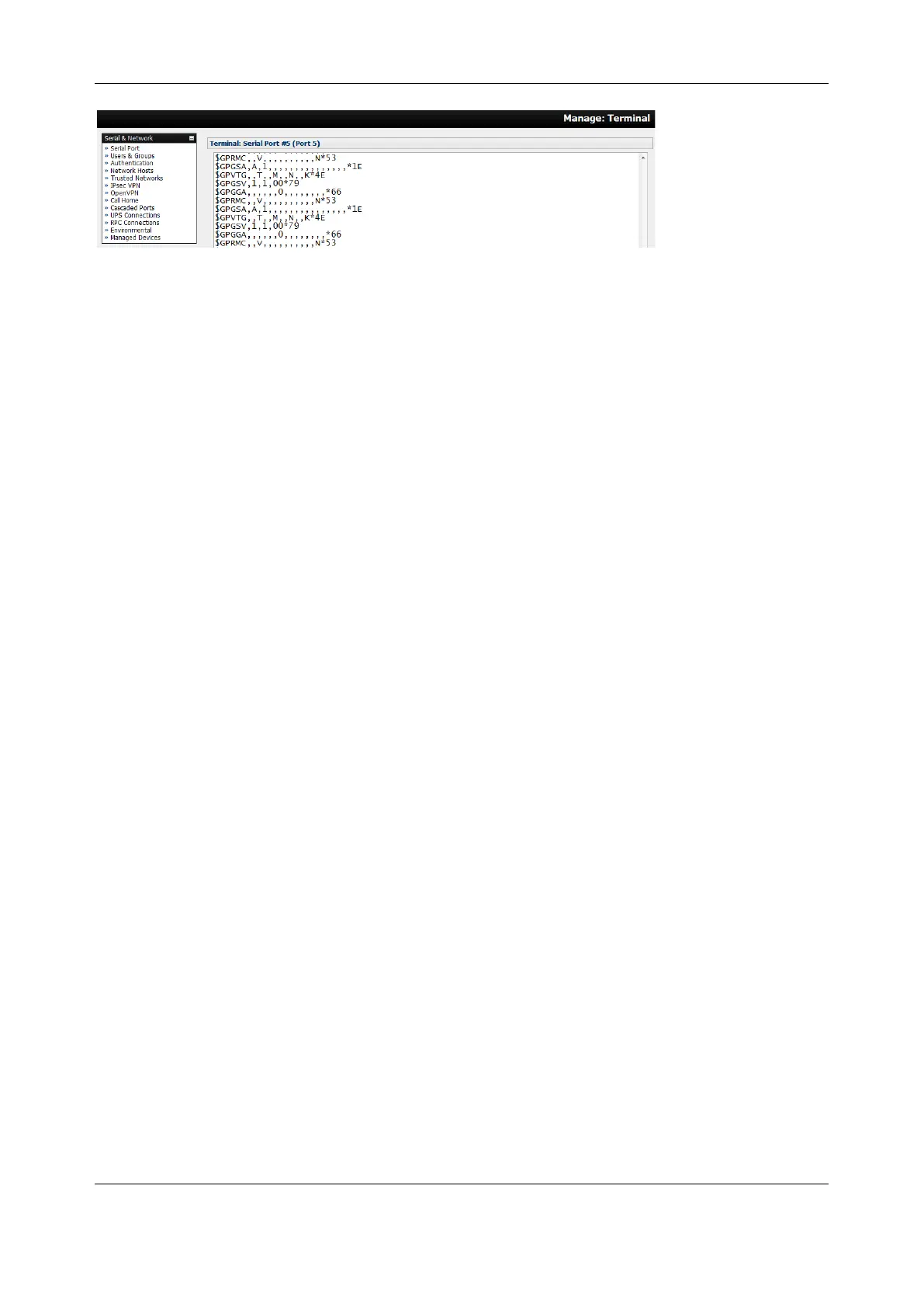

If the particular ACM7008-2 is a cellular model, port #13 — for the GPS — will also be listed.
The 7216-24U has 16 RJ45 serial ports and 24 USB ports on its rear-face as well as two front-facing USB
ports and (in the cellular model) a GPS.
The RJ45 serial ports are presented in Serial & Network > Serial Port as port numbers 1–16. The 24 rear-
facing USB ports take port numbers 17–40, and the front-facing USB ports are listed at port numbers 41
and 42 respectively. And, as with the ACM7008-2, if the particular 7216-24U is a cellular model, the GPS is
presented at port number 43.
The common settings (baud rate, etc.) are used when configuring the ports, but some operations may not
work depending on the implementation of the underlying USB serial chip.
3.2 Add and Edit Users
The administrator uses this menu selection to create, edit and delete users and to define the access
permissions for each of these users.

Opengear ACM7000 Specifications

General

RS-232 ports	8
SIM card slot	Yes
USB 2.0 ports quantity	4
Number of simultaneous SIM cards	2
Certification	EN 55022:2010, CISPR 22:2008, FCC Part 15 B:2015, ICES-003 5 (2014), AS/NZS CISPR 22:2009+A1:2010, EN 61000-3-2:2006/A2:2009, EN 61000-3-3:2008 EN 55024:2010, CISPR 24:2010, EN 61000-4-2:2009, EN 61000-4-3:2006+A2:2010, EN 61000-4-4:2004+A1:2010, EN 61000-4-5:2006, EN 61000-4-6:2009, EN 61000-4-8:2010, EN 61000-4-11:2004 CE, UL 1950, TUV, C-Tick, RoHS
Mounting type	Rack mounting
Product color	Black, Red
Antenna connector type	SMA
Flash memory	32 MB
Internal memory	256 MB
Processor frequency	800 MHz
Control display unit	No
Internal memory type	DDR3
Input voltage	110 - 240 V
DC input voltage	12 V
Storage temperature (T-T)	-40 - 75 °C
Operating temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	5 - 90 %
Security algorithms	IPSec, SSH-2, SSL/TLS

Weight and Dimensions

Depth	120 mm
Width	130 mm
Height	35 mm
Weight	6000 g
