Opengear ACM7000 User Manual

User Manual
For example, if the computer attached to serial port 3 should never send anything out on its serial console
port, the administrator can set the Facility for that port to local0 (local0 .. local7 are meant for site local
values), and the Priority to critical. At this priority, if the console server syslog server does receive a
message, it raises an alert. See Chapter 6.

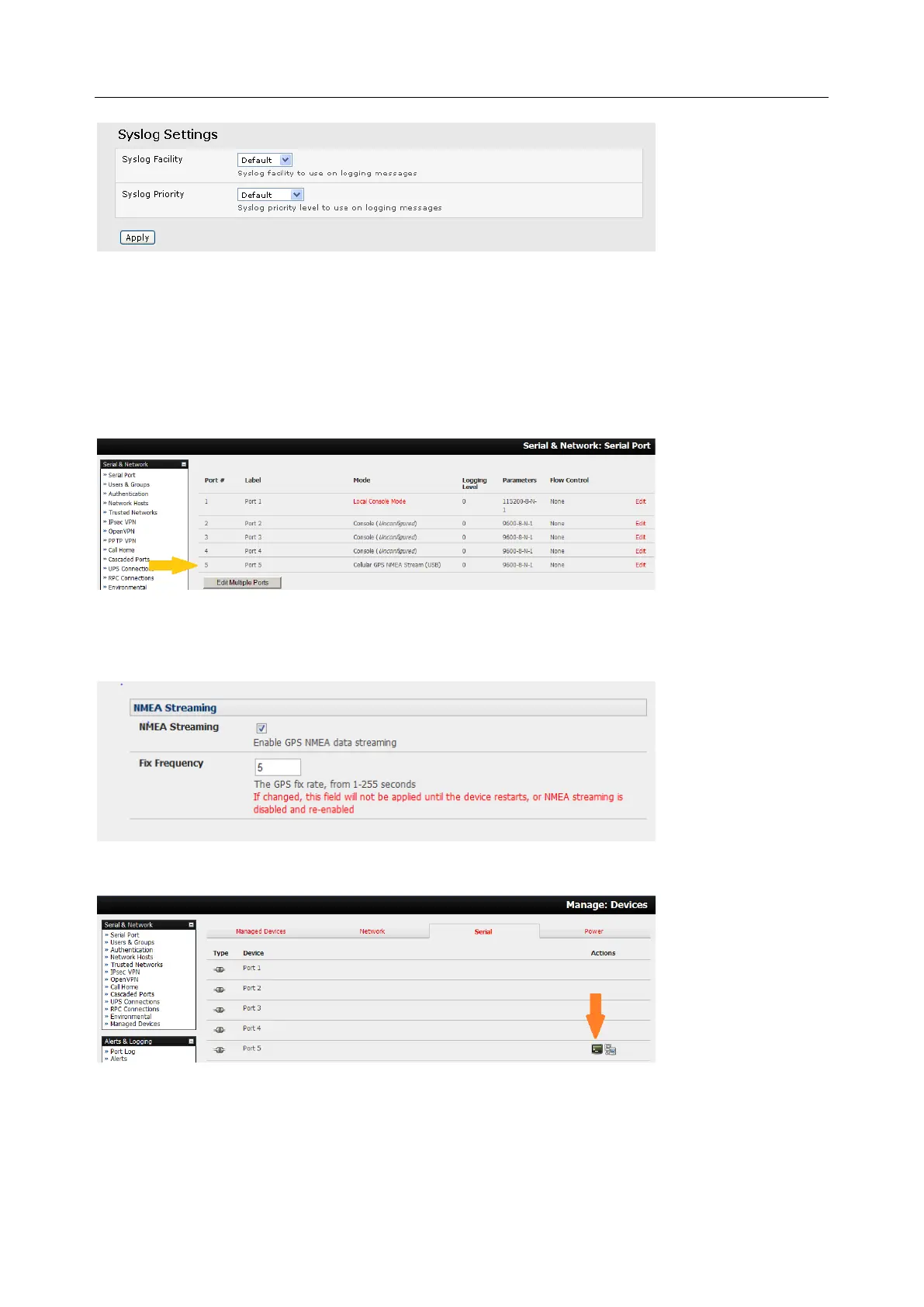

3.1.8 NMEA Streaming
The ACM7000-L can provide GPS NMEA data streaming from the internal GPS /cellular modem. This data
stream presents as a serial data stream on port 5 on the ACM models.
The Common Settings (baud rate etc.) are ignored when configuring the NMEA serial port. You can
specify the Fix Frequency (i.e. this GPS fix rate determines how often GPS fixes are obtained). You can
also apply all the Console Server Mode, Syslog and Serial Bridging settings to this port.
You can use pmshell, webshell, SSH, RFC2217 or RawTCP to get at the stream:
For example, using the Web Terminal:

Opengear ACM7000 Specifications

General

RS-232 ports	8
SIM card slot	Yes
USB 2.0 ports quantity	4
Number of simultaneous SIM cards	2
Certification	EN 55022:2010, CISPR 22:2008, FCC Part 15 B:2015, ICES-003 5 (2014), AS/NZS CISPR 22:2009+A1:2010, EN 61000-3-2:2006/A2:2009, EN 61000-3-3:2008 EN 55024:2010, CISPR 24:2010, EN 61000-4-2:2009, EN 61000-4-3:2006+A2:2010, EN 61000-4-4:2004+A1:2010, EN 61000-4-5:2006, EN 61000-4-6:2009, EN 61000-4-8:2010, EN 61000-4-11:2004 CE, UL 1950, TUV, C-Tick, RoHS
Mounting type	Rack mounting
Product color	Black, Red
Antenna connector type	SMA
Flash memory	32 MB
Internal memory	256 MB
Processor frequency	800 MHz
Control display unit	No
Internal memory type	DDR3
Input voltage	110 - 240 V
DC input voltage	12 V
Storage temperature (T-T)	-40 - 75 °C
Operating temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	5 - 90 %
Security algorithms	IPSec, SSH-2, SSL/TLS

Weight and Dimensions

Depth	120 mm
Width	130 mm
Height	35 mm
Weight	6000 g
