Opengear ACM7000 User Manual

Chapter 6: Alerts, Auto-Response & Logging
118
§ To initiate a pre-configured dial-up connection under Linux, use the following Start
Command:
pon network_connection
where network_connection is the name of the connection.
4. Enter the command or path to a script to stop the OOB connection in Stop Command
§ To stop a pre-configured dial-up connection under Windows, use the following Stop
Command:
cmd /c start "Stopping Out of Band Connection" /wait /min rasdial network_connection
/disconnect
where network connection is the name of the network connection as displayed in Control
Panel > Network Connections.
§ To stop a pre-configured dial-up connection under Linux, use the following Stop Command:
poff network_connection

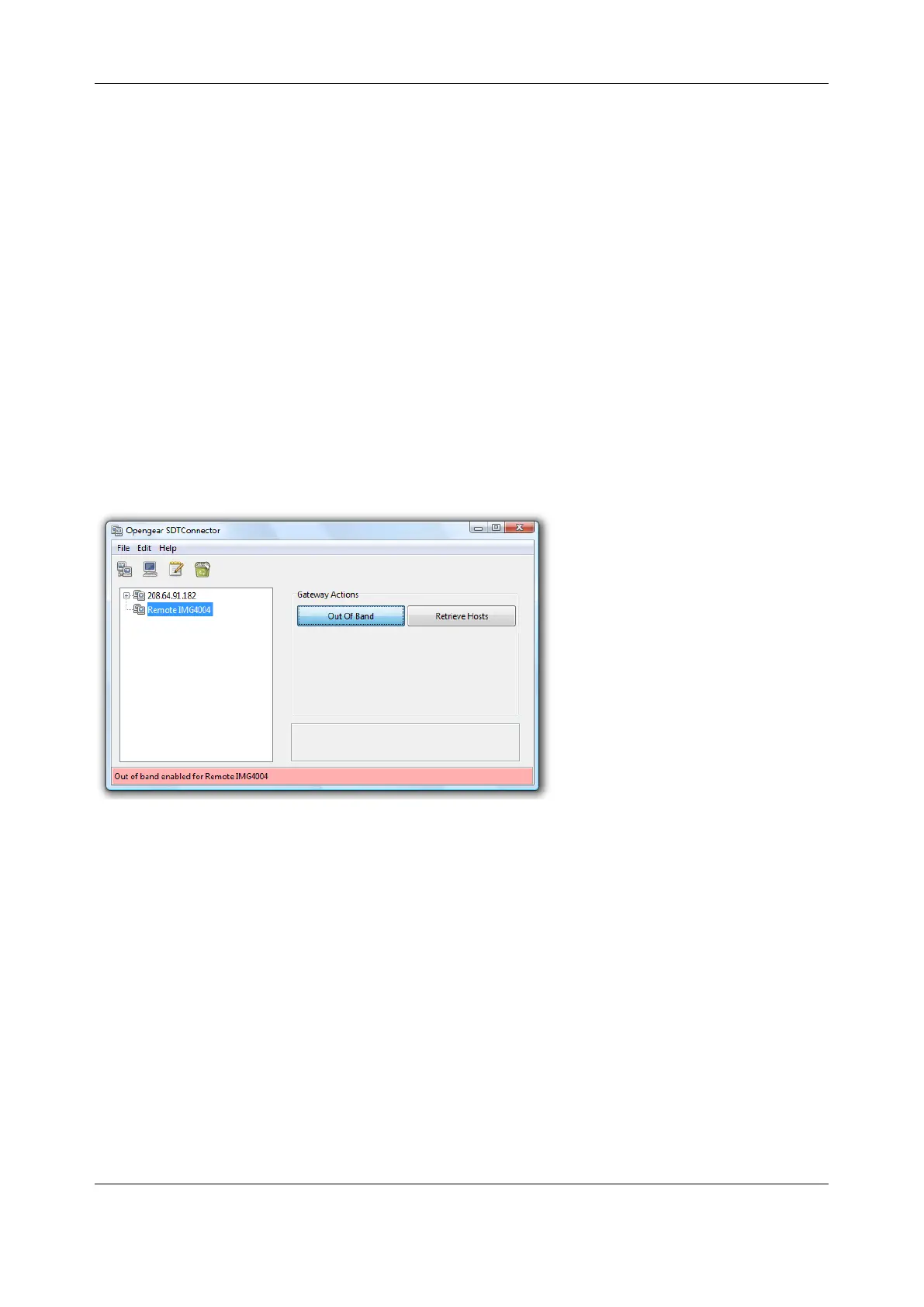

To make the OOB connection using SDT Connector, select the gateway and click Out Of Band. The status
bar changes color to indicate this gateway is being access using the OOB link rather than the primary link
When you connect to a service on a host behind the gateway, or to the console server gateway, SDT
Connector initiates the OOB connection using the provided Start Command. The OOB connection isn't
stopped (using the Stop Command) until Out-of-Band under Gateway Actions is clicked off, at which point
the status bar returns to its normal color.
5.6 Importing (and exporting) preferences
To enable the distribution of pre-configured client config files, SDT Connector has an Export/Import
facility:

Opengear ACM7000 Specifications

General

RS-232 ports	8
SIM card slot	Yes
USB 2.0 ports quantity	4
Number of simultaneous SIM cards	2
Certification	EN 55022:2010, CISPR 22:2008, FCC Part 15 B:2015, ICES-003 5 (2014), AS/NZS CISPR 22:2009+A1:2010, EN 61000-3-2:2006/A2:2009, EN 61000-3-3:2008 EN 55024:2010, CISPR 24:2010, EN 61000-4-2:2009, EN 61000-4-3:2006+A2:2010, EN 61000-4-4:2004+A1:2010, EN 61000-4-5:2006, EN 61000-4-6:2009, EN 61000-4-8:2010, EN 61000-4-11:2004 CE, UL 1950, TUV, C-Tick, RoHS
Mounting type	Rack mounting
Product color	Black, Red
Antenna connector type	SMA
Flash memory	32 MB
Internal memory	256 MB
Processor frequency	800 MHz
Control display unit	No
Internal memory type	DDR3
Input voltage	110 - 240 V
DC input voltage	12 V
Storage temperature (T-T)	-40 - 75 °C
Operating temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	5 - 90 %
Security algorithms	IPSec, SSH-2, SSL/TLS

Weight and Dimensions

Depth	120 mm
Width	130 mm
Height	35 mm
Weight	6000 g
