3.6 Serial Port Cascading

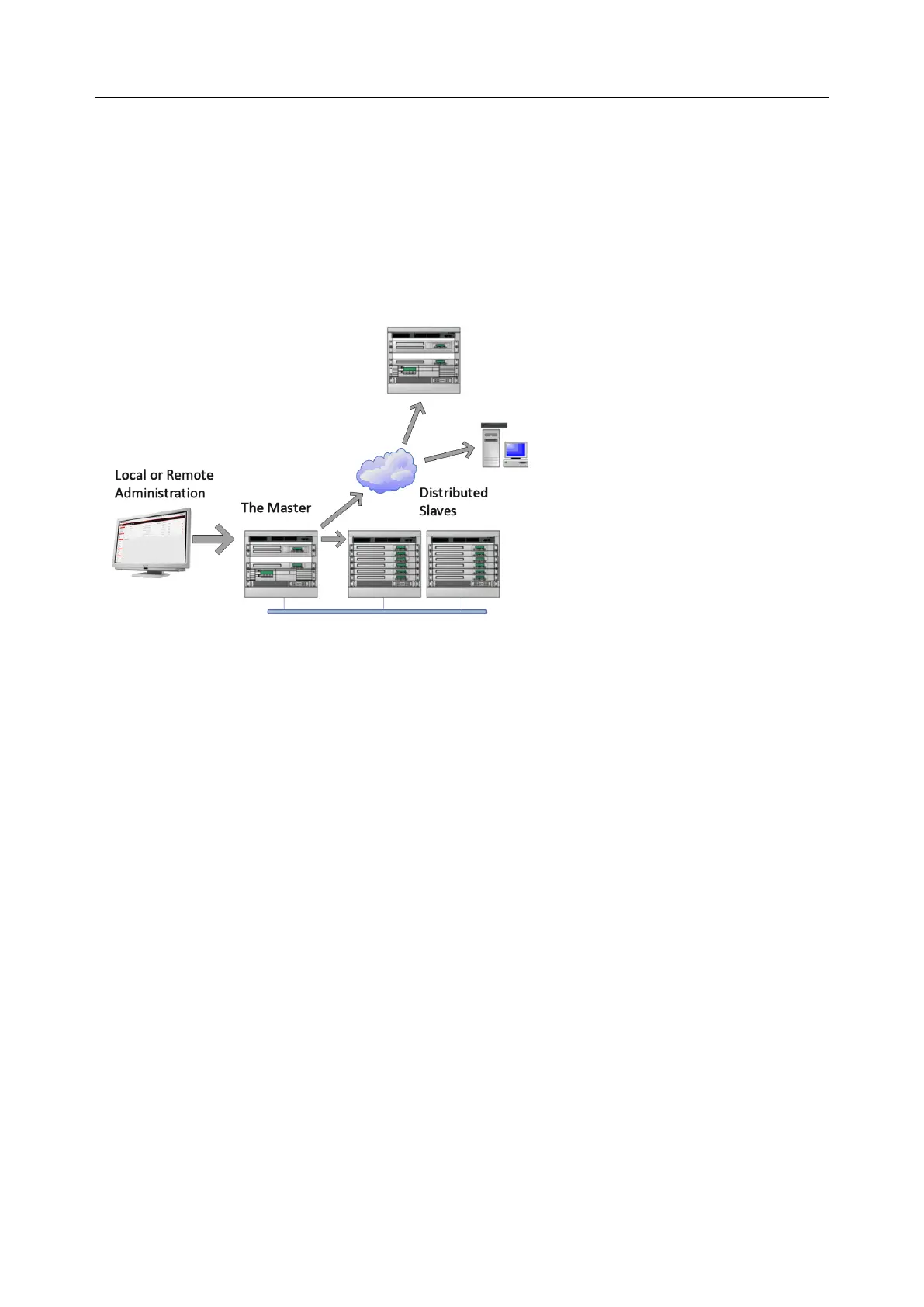

Cascaded Ports enables you to cluster distributed console servers so a large number of serial ports (up to
1000) can be configured and accessed through one IP address and managed through the one
Management Console. One console server, the Master, controls other console servers as Slave units and
all the serial ports on the Slave units appear as if they are part of the Master.
Opengear’s clustering connects each Slave to the Master with an SSH connection. This is done using
public key authentication, so the Master can access each Slave using the SSH key pair (rather than using
passwords). This ensures secure authenticated communications between Master and Slaves enabling the
Slave console server units to be distributed locally on a LAN or remotely around the world.
3.6.1 Automatically generate and upload SSH keys
To set up public key authentication you must first generate an RSA or DSA key pair and upload them into
the Master and Slave console servers. This can be done automatically from the Master:

Opengear ACM7000 Specifications

General

RS-232 ports	8
SIM card slot	Yes
USB 2.0 ports quantity	4
Number of simultaneous SIM cards	2
Certification	EN 55022:2010, CISPR 22:2008, FCC Part 15 B:2015, ICES-003 5 (2014), AS/NZS CISPR 22:2009+A1:2010, EN 61000-3-2:2006/A2:2009, EN 61000-3-3:2008 EN 55024:2010, CISPR 24:2010, EN 61000-4-2:2009, EN 61000-4-3:2006+A2:2010, EN 61000-4-4:2004+A1:2010, EN 61000-4-5:2006, EN 61000-4-6:2009, EN 61000-4-8:2010, EN 61000-4-11:2004 CE, UL 1950, TUV, C-Tick, RoHS
Mounting type	Rack mounting
Product color	Black, Red
Antenna connector type	SMA
Flash memory	32 MB
Internal memory	256 MB
Processor frequency	800 MHz
Control display unit	No
Internal memory type	DDR3
Input voltage	110 - 240 V
DC input voltage	12 V
Storage temperature (T-T)	-40 - 75 °C
Operating temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	5 - 90 %
Security algorithms	IPSec, SSH-2, SSL/TLS

Weight and Dimensions

Depth	120 mm
Width	130 mm
Height	35 mm
Weight	6000 g
