Opengear ACM7000 User Manual

Chapter 7: Power, Environmental & Digital I/O

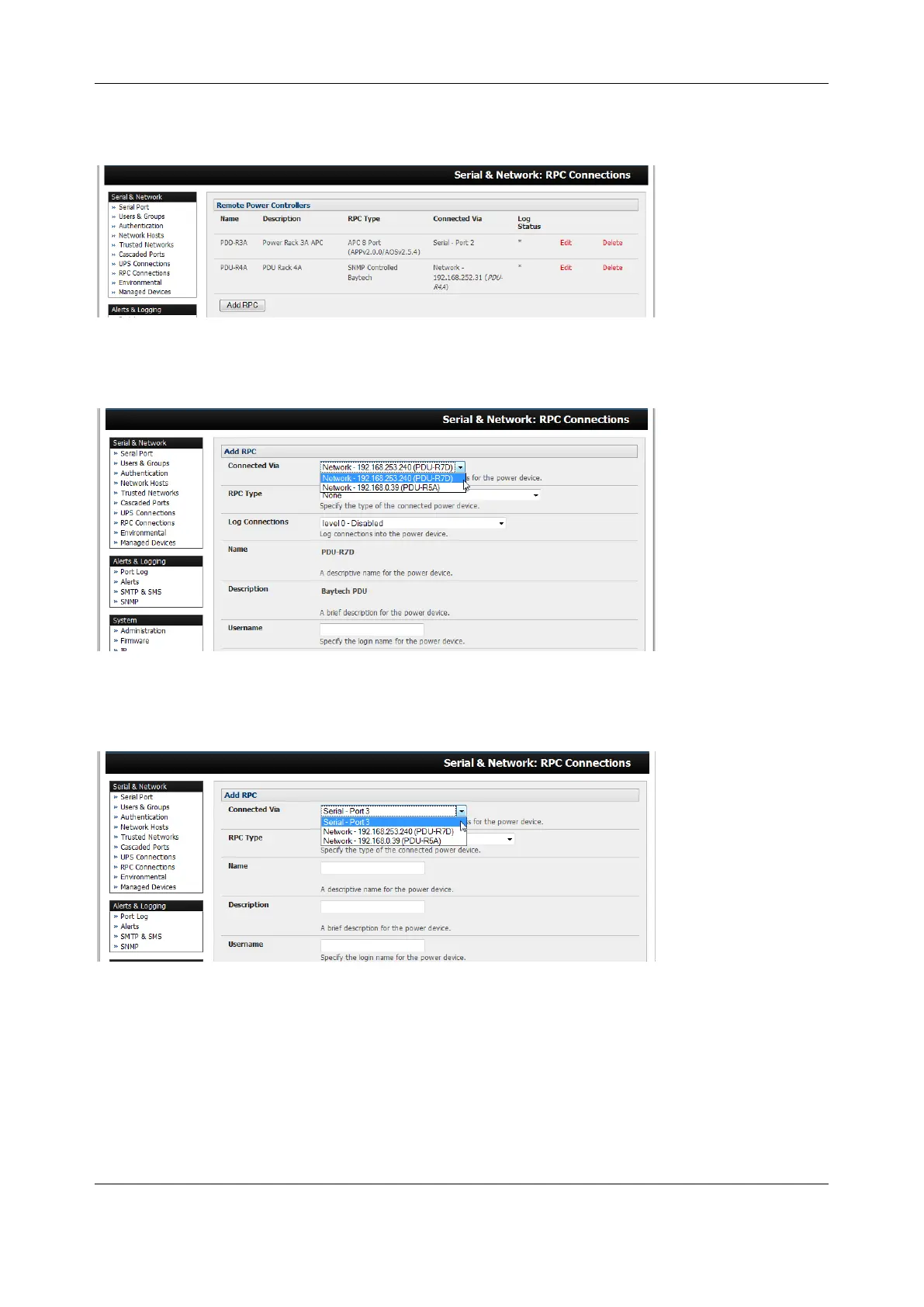

154
3. Select the Serial & Network > RPC Connections menu. This displays the RPC connections that
have already been configured
4. Click Add RPC
5. Connected Via presents a list of serial ports and network Host connections that you have set up
with device type RPC (but have yet to connect to a specific RPC device):
• If you select Connect Via for a Network RPC connection, enter the Host Name/Description
that you set up for that connection as the Name and Description for the power device
• If you select Connect Via a Serial connection, enter a Name and Description for the power
device
6. Select the appropriate RPC Type for the PDU (or IPMI) being connected:
• If you are connecting to the RPC via the network, you will be presented with the IPMI protocol
options and the SNMP RPC Types supported by the embedded Network UPS Tools

Opengear ACM7000 Specifications

General

RS-232 ports	8
SIM card slot	Yes
USB 2.0 ports quantity	4
Number of simultaneous SIM cards	2
Certification	EN 55022:2010, CISPR 22:2008, FCC Part 15 B:2015, ICES-003 5 (2014), AS/NZS CISPR 22:2009+A1:2010, EN 61000-3-2:2006/A2:2009, EN 61000-3-3:2008 EN 55024:2010, CISPR 24:2010, EN 61000-4-2:2009, EN 61000-4-3:2006+A2:2010, EN 61000-4-4:2004+A1:2010, EN 61000-4-5:2006, EN 61000-4-6:2009, EN 61000-4-8:2010, EN 61000-4-11:2004 CE, UL 1950, TUV, C-Tick, RoHS
Mounting type	Rack mounting
Product color	Black, Red
Antenna connector type	SMA
Flash memory	32 MB
Internal memory	256 MB
Processor frequency	800 MHz
Control display unit	No
Internal memory type	DDR3
Input voltage	110 - 240 V
DC input voltage	12 V
Storage temperature (T-T)	-40 - 75 °C
Operating temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	5 - 90 %
Security algorithms	IPSec, SSH-2, SSL/TLS

Weight and Dimensions

Depth	120 mm
Width	130 mm
Height	35 mm
Weight	6000 g
