Opengear ACM7000 User Manual

Chapter 9: Nagios Integration
198

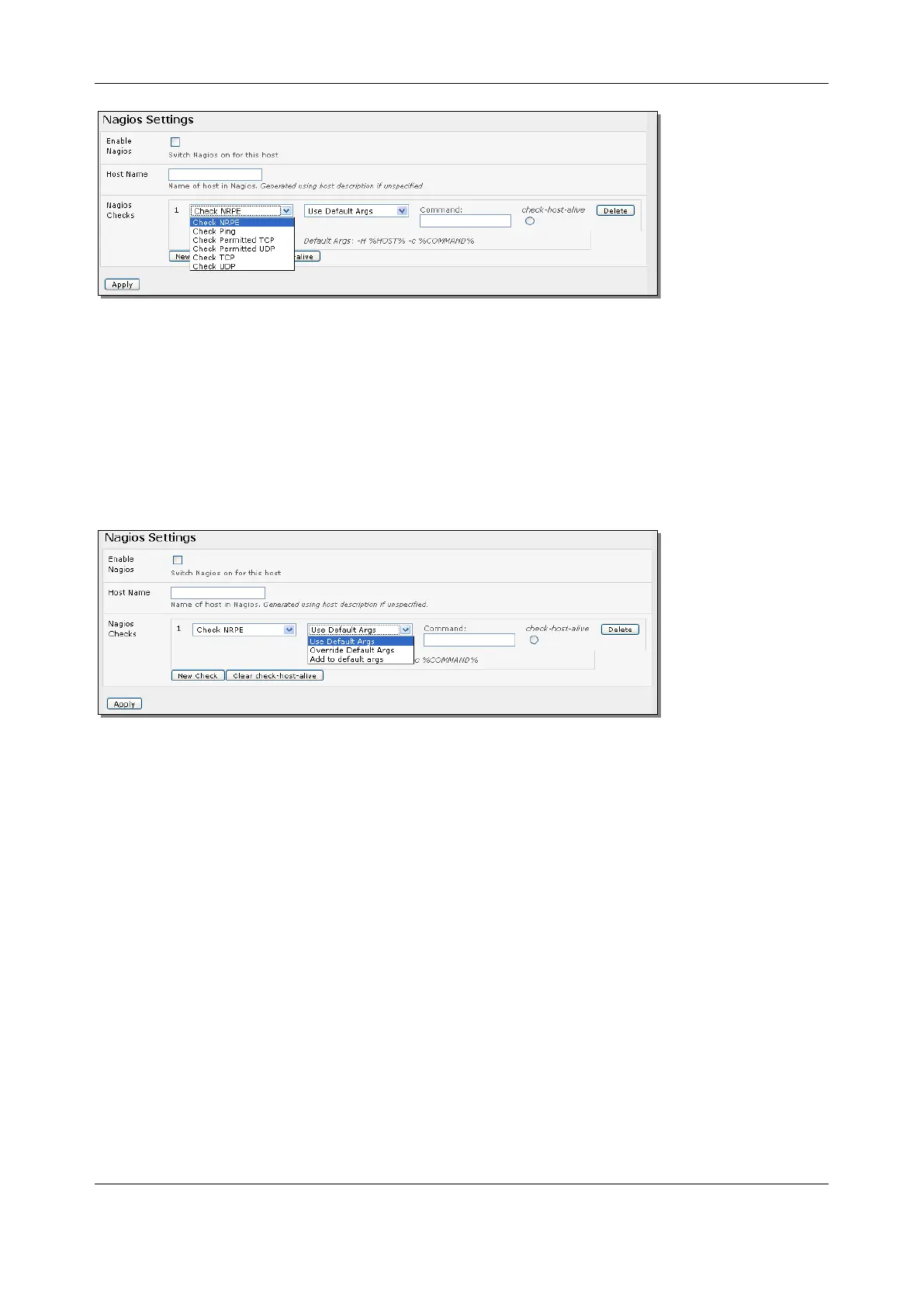

7. The Nagios Check nominated as the check-host-alive check is the check used to determine
whether the network host is up or down
8. This will be Check Ping – although in some cases the host will be configured not to respond to
pings
9. If no check-host-alive check is selected, the host will always be assumed to be up
10. You may deselect check-host-alive by clicking Clear check-host-alive
11. If required, customize the selected Nagios Checks to use custom arguments
12. Click Apply
9.2.6 Configure the upstream Nagios monitoring host
See the Nagios documentation (http://www.nagios.org/documentation/) for configuring the upstream
server:
The section entitled Distributed Monitoring steps through what you need to do to configure NSCA on the
upstream server (under Central Server Configuration)
NRPE Documentation has recently been added which steps through configuring NRPE on the upstream
server http://nagios.sourceforge.net/docs/nrpe/NRPE.pdf
At this stage, Nagios at the upstream monitoring server has been configured, and individual serial port and
network host connections on the console server configured for Nagios monitoring. If NSCA is enabled,
each selected check will be executed once over the period of the check interval. If NRPE is enabled, the
upstream server will be able to request status updates under its own scheduling.

Opengear ACM7000 Specifications

General

RS-232 ports	8
SIM card slot	Yes
USB 2.0 ports quantity	4
Number of simultaneous SIM cards	2
Certification	EN 55022:2010, CISPR 22:2008, FCC Part 15 B:2015, ICES-003 5 (2014), AS/NZS CISPR 22:2009+A1:2010, EN 61000-3-2:2006/A2:2009, EN 61000-3-3:2008 EN 55024:2010, CISPR 24:2010, EN 61000-4-2:2009, EN 61000-4-3:2006+A2:2010, EN 61000-4-4:2004+A1:2010, EN 61000-4-5:2006, EN 61000-4-6:2009, EN 61000-4-8:2010, EN 61000-4-11:2004 CE, UL 1950, TUV, C-Tick, RoHS
Mounting type	Rack mounting
Product color	Black, Red
Antenna connector type	SMA
Flash memory	32 MB
Internal memory	256 MB
Processor frequency	800 MHz
Control display unit	No
Internal memory type	DDR3
Input voltage	110 - 240 V
DC input voltage	12 V
Storage temperature (T-T)	-40 - 75 °C
Operating temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	5 - 90 %
Security algorithms	IPSec, SSH-2, SSL/TLS

Weight and Dimensions

Depth	120 mm
Width	130 mm
Height	35 mm
Weight	6000 g
