Opengear ACM7000 User Manual

211

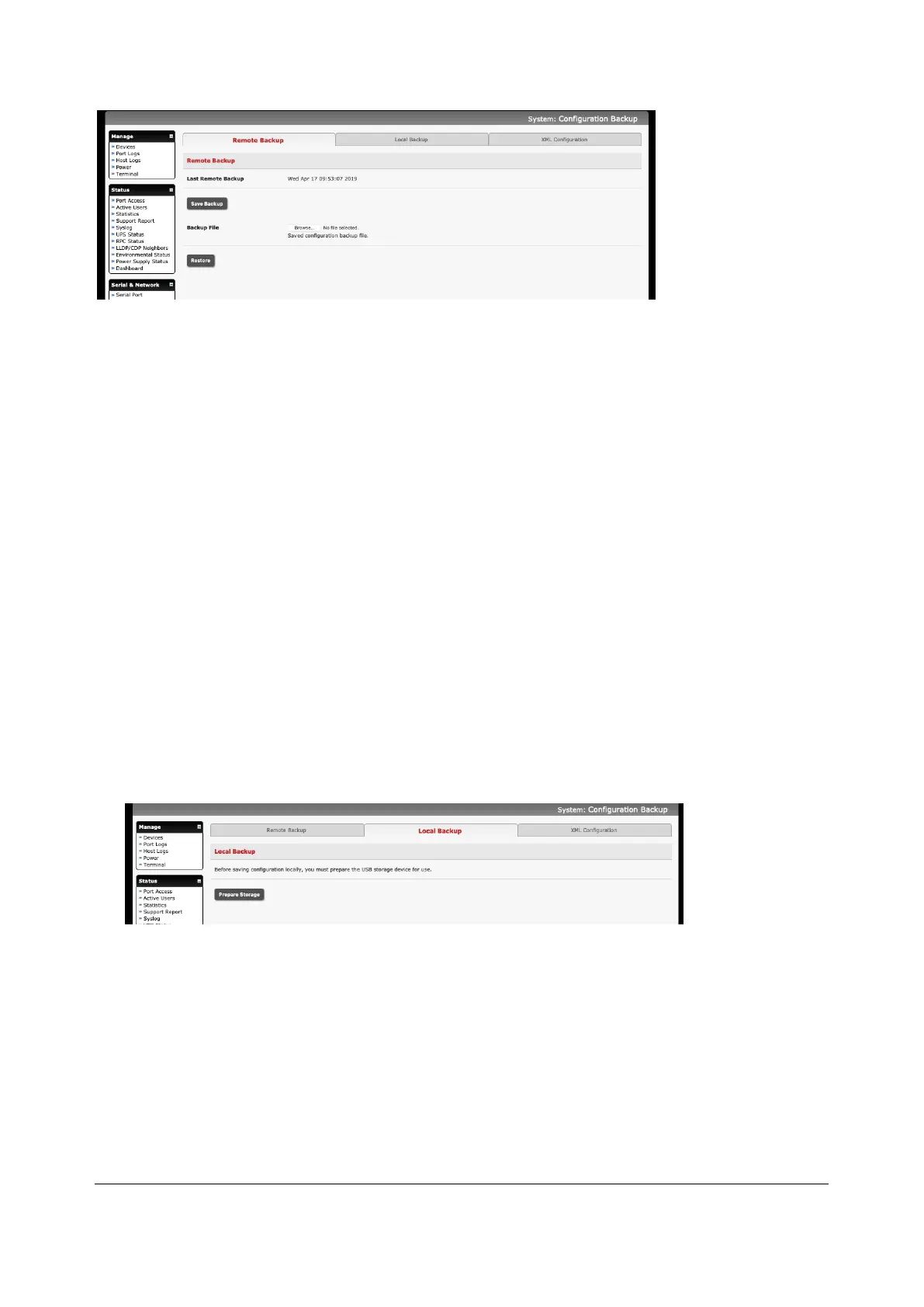

With all console servers you can save the backup file remotely on your PC and you can restore
configurations from remote locations:
2. Click Save Backup in the Remote Configuration Backup menu
3. The config backup file (System Name_date_config.opg) is downloaded to your PC and saved in
the location you nominate
To restore a remote backup:
1. Click Browse in the Remote Configuration Backup menu and select the Backup File you wish to
restore
2. Click Restore and click OK. This will overwrite all the current configuration settings in your
console server
With some console servers, you can save the backup file locally onto the USB storage. Your console
server must support USB and you must have an internal or external USB flash drive installed.
To backup and restore using USB:
1. Ensure the USB flash is the only USB device attached to the console server
2. Select the Local Backup tab and click here to proceed. This will set a Volume Label on the USB
storage device. This preparation step is only necessary the first time and will not affect any other
information you have saved onto the USB storage device. We recommend that you back up any
critical data from the USB storage device before using it with your console server. If there are
multiple USB devices installed, a warning to remove them appears
3. To back up to the USB enter a brief Description of the backup in the Local Backup menu and
select Save Backup
4. The Local Backup menu will display all the configuration backup files you have stored onto the
USB flash
5. To restore a backup from the USB, select Restore on the particular backup you wish to restore
and click Apply

Opengear ACM7000 Specifications

General

RS-232 ports	8
SIM card slot	Yes
USB 2.0 ports quantity	4
Number of simultaneous SIM cards	2
Certification	EN 55022:2010, CISPR 22:2008, FCC Part 15 B:2015, ICES-003 5 (2014), AS/NZS CISPR 22:2009+A1:2010, EN 61000-3-2:2006/A2:2009, EN 61000-3-3:2008 EN 55024:2010, CISPR 24:2010, EN 61000-4-2:2009, EN 61000-4-3:2006+A2:2010, EN 61000-4-4:2004+A1:2010, EN 61000-4-5:2006, EN 61000-4-6:2009, EN 61000-4-8:2010, EN 61000-4-11:2004 CE, UL 1950, TUV, C-Tick, RoHS
Mounting type	Rack mounting
Product color	Black, Red
Antenna connector type	SMA
Flash memory	32 MB
Internal memory	256 MB
Processor frequency	800 MHz
Control display unit	No
Internal memory type	DDR3
Input voltage	110 - 240 V
DC input voltage	12 V
Storage temperature (T-T)	-40 - 75 °C
Operating temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	5 - 90 %
Security algorithms	IPSec, SSH-2, SSL/TLS

Weight and Dimensions

Depth	120 mm
Width	130 mm
Height	35 mm
Weight	6000 g
