Opengear ACM7000 User Manual

Connectivity, TCP Ports & Serial I/O
230
RS232 Standard Pinouts
The RS232 pinout standards for the DB9 (and DB25) connectors are tabled below:
DB25
SIGNAL
DB9
DEFINITION
1
Protective Ground
2
TXD
3
Transmitted Data
3
RXD
2
Received Data
4
RTS
7
Request To Send
5
CTS
8
Clear To Send
6
DSR
6
Data Set Ready
7
GND
5
Signal Ground
8
CD
1
Received Line Signal Detector
9
Reserved for data set testing
10
Reserved for data set testing
11
Unassigned
12
SCF
Secondary Rcvd Line Signal Detector
13
SCB
Secondary Clear to Send
14
SBA
Secondary Transmitted Data
15
DB
Transmission Signal Timing
16
SBB
Secondary Received Data
17
DD
Receiver Signal Element Timing
18
Unassigned
19
SCA
Secondary Request to Send
20
DTR
4
Data Terminal Ready
21
CG
Signal Quality Detector
22
9
Ring Indicator
23
CH/CI
Data Signal Rate Selector
24
DA
Transmit Signal Element Timing
25
Unassigned

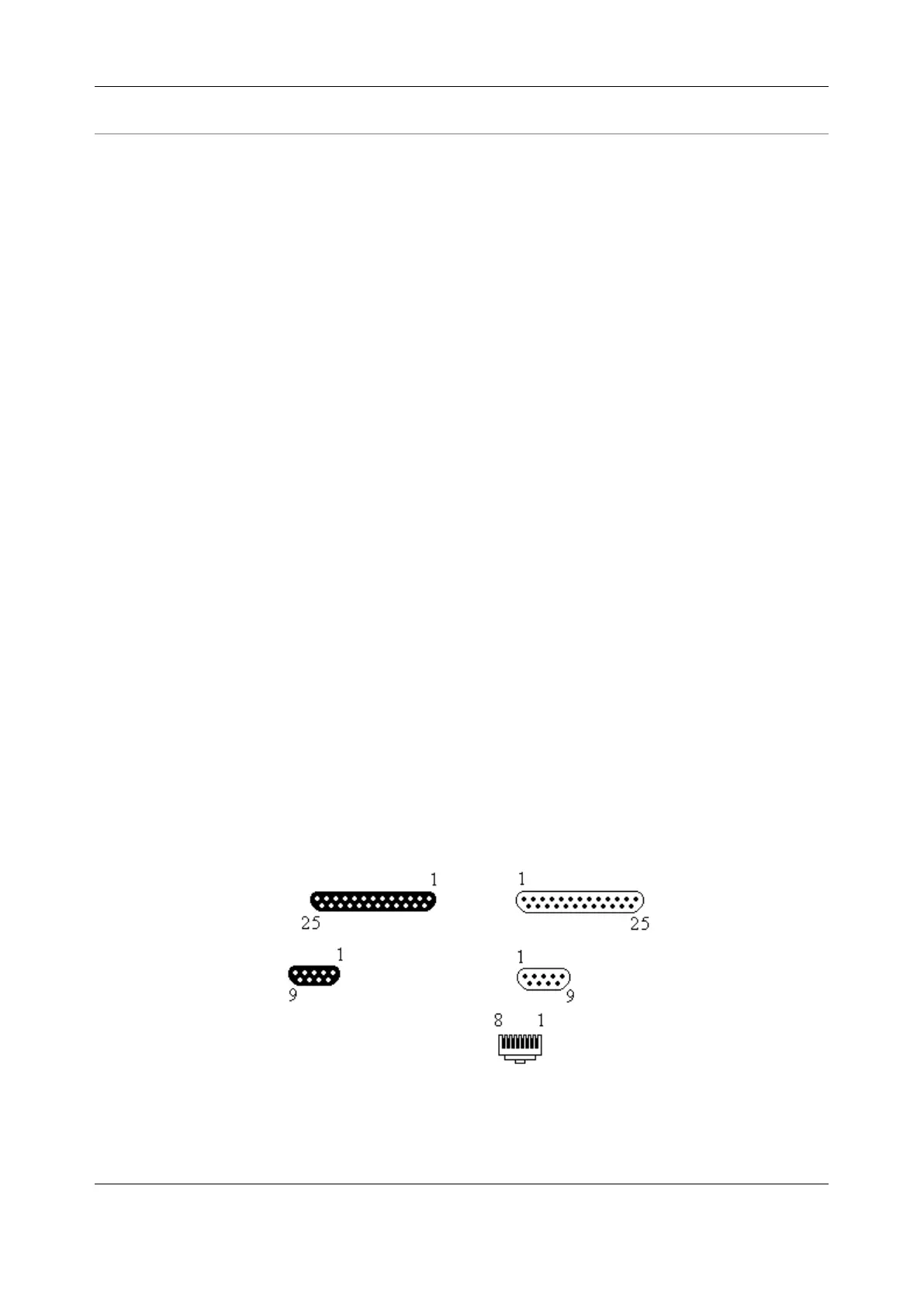

FEMALE
MALE
25 pin DB25
9 pin DB9
8 pin RJ45

Opengear ACM7000 Specifications

General

RS-232 ports	8
SIM card slot	Yes
USB 2.0 ports quantity	4
Number of simultaneous SIM cards	2
Certification	EN 55022:2010, CISPR 22:2008, FCC Part 15 B:2015, ICES-003 5 (2014), AS/NZS CISPR 22:2009+A1:2010, EN 61000-3-2:2006/A2:2009, EN 61000-3-3:2008 EN 55024:2010, CISPR 24:2010, EN 61000-4-2:2009, EN 61000-4-3:2006+A2:2010, EN 61000-4-4:2004+A1:2010, EN 61000-4-5:2006, EN 61000-4-6:2009, EN 61000-4-8:2010, EN 61000-4-11:2004 CE, UL 1950, TUV, C-Tick, RoHS
Mounting type	Rack mounting
Product color	Black, Red
Antenna connector type	SMA
Flash memory	32 MB
Internal memory	256 MB
Processor frequency	800 MHz
Control display unit	No
Internal memory type	DDR3
Input voltage	110 - 240 V
DC input voltage	12 V
Storage temperature (T-T)	-40 - 75 °C
Operating temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	5 - 90 %
Security algorithms	IPSec, SSH-2, SSL/TLS

Weight and Dimensions

Depth	120 mm
Width	130 mm
Height	35 mm
Weight	6000 g
