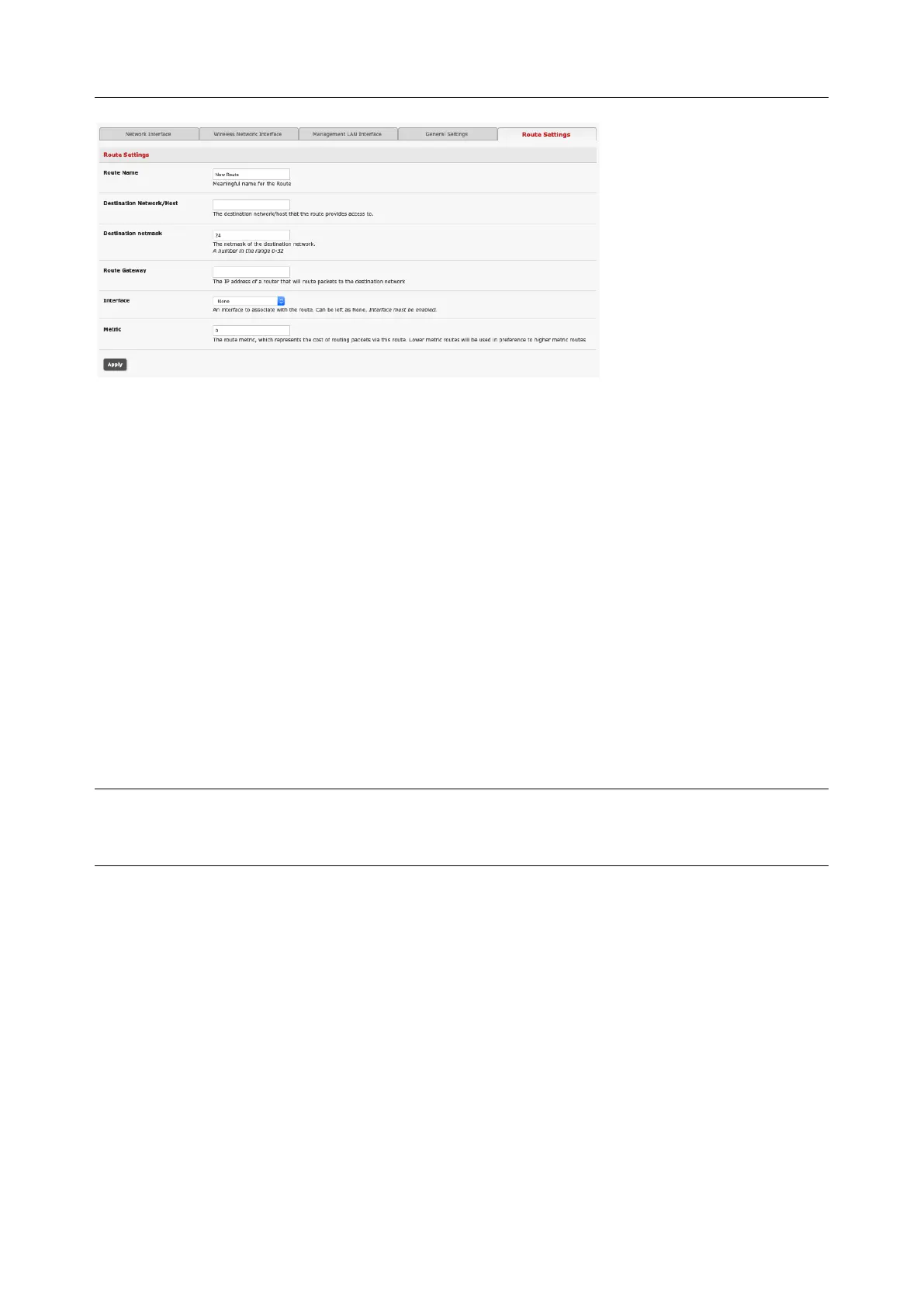

To add to the static route to the route table of the System:
1. Select the Route Settings tab on the System > IP General Settings menu.
2. Click New Route
3. Enter a Route Name for the route.
4. In the Destination Network/Host field, enter the IP address of the destination network/host that
the route provides access to.
5. Enter a value in the Destination netmask field that identifies the destination network or host. Any
number between 0 and 32. A subnet mask of 32 identifies a host route.
6. Enter Route Gateway with the IP address of a router that will routes packets to the destination
network. This may be left blank.
7. Select the Interface to use to reach the destination, may be left as None.
8. Enter a value in the Metric field that represents the metric of this connection. Use any number
equal to or greater than 0. This only has to be set if two or more routes conflict or have
overlapping targets.
9. Click Apply.
NOTE The route details page provides a list of network interfaces and modems to which a route can be
bound. In the case of a modem, the route will be attached to any dialup session established via
that device. A route can be specified with a gateway, an interface or both. If the specified interface
is not active, routes configured for that interface will not be active.

Opengear ACM7000 Specifications

General

RS-232 ports	8
SIM card slot	Yes
USB 2.0 ports quantity	4
Number of simultaneous SIM cards	2
Certification	EN 55022:2010, CISPR 22:2008, FCC Part 15 B:2015, ICES-003 5 (2014), AS/NZS CISPR 22:2009+A1:2010, EN 61000-3-2:2006/A2:2009, EN 61000-3-3:2008 EN 55024:2010, CISPR 24:2010, EN 61000-4-2:2009, EN 61000-4-3:2006+A2:2010, EN 61000-4-4:2004+A1:2010, EN 61000-4-5:2006, EN 61000-4-6:2009, EN 61000-4-8:2010, EN 61000-4-11:2004 CE, UL 1950, TUV, C-Tick, RoHS
Mounting type	Rack mounting
Product color	Black, Red
Antenna connector type	SMA
Flash memory	32 MB
Internal memory	256 MB
Processor frequency	800 MHz
Control display unit	No
Internal memory type	DDR3
Input voltage	110 - 240 V
DC input voltage	12 V
Storage temperature (T-T)	-40 - 75 °C
Operating temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	5 - 90 %
Security algorithms	IPSec, SSH-2, SSL/TLS

Weight and Dimensions

Depth	120 mm
Width	130 mm
Height	35 mm
Weight	6000 g
