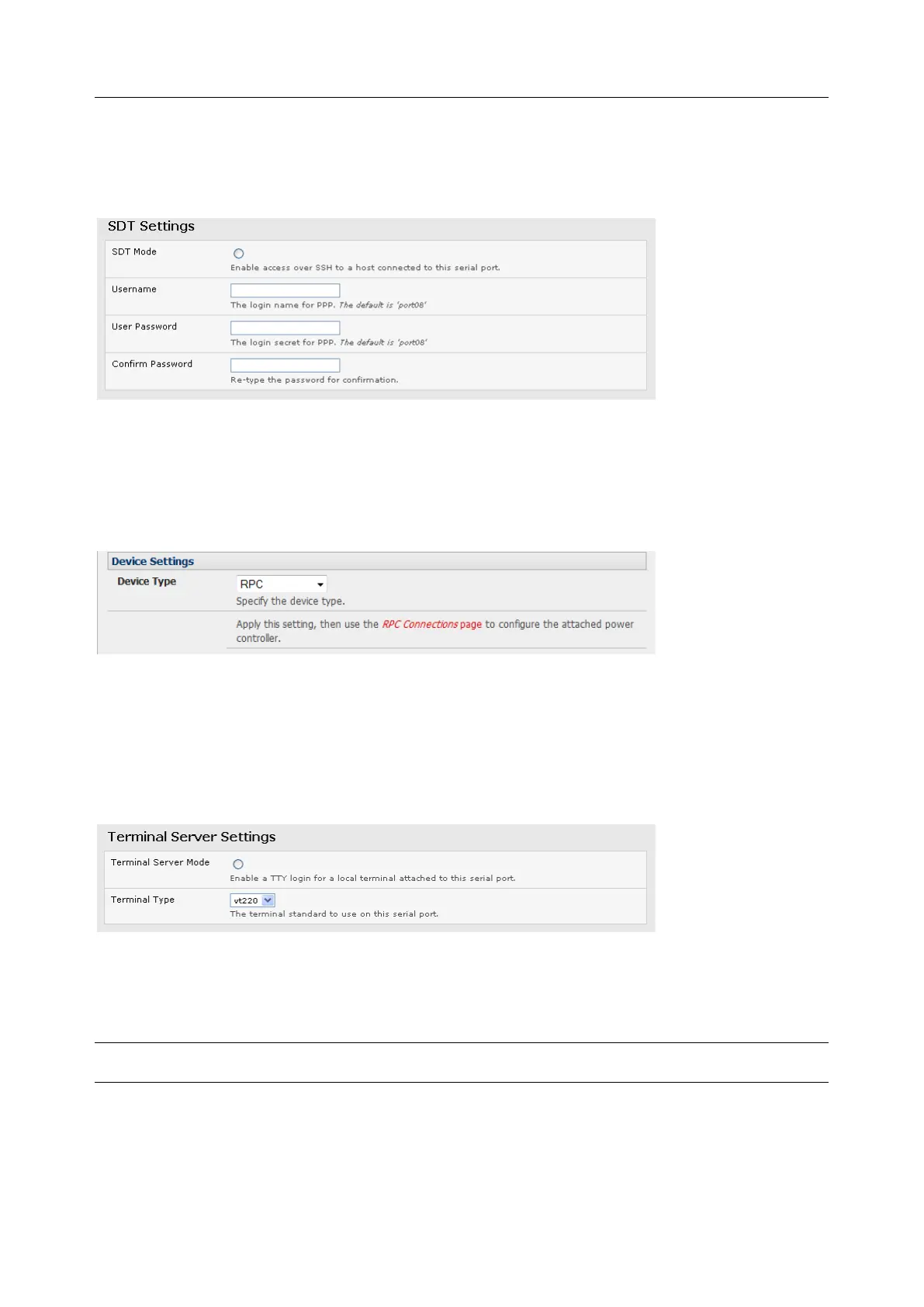

3.1.3 SDT Mode
This setting allows port forwarding of RDP, VNC, HTPP, HTTPS, SSH, Telnet, and other LAN protocols to
computers that are locally connected to the console server by their serial COM port. Such port forwarding
requires a PPP link to be set up over this serial port.
For configuration details See Chapter 5.
3.1.4 Device (RPC, UPS, Environmental) Mode
This mode configures the selected serial port to communicate with a serial controlled Uninterruptable
Power Supply (UPS), Remote Power Controller / Power Distribution Units (RPC) or Environmental
Monitoring Device (Environmental)
1. Select the desired Device Type (UPS, RPC, or Environmental)
2. Proceed to the appropriate device configuration page (Serial & Network > UPS Connections,
RPC Connection or Environmental) as detailed in Chapter 7.
3.1.5 Terminal Server Mode
• Select Terminal Server Mode and the Terminal Type (vt220, vt102, vt100, Linux or ANSI) to enable
a getty on the selected serial port
The getty configures the port and wait for a connection to be made. An active connection on a serial
device is indicated by the raised Data Carrier Detect (DCD) pin on the serial device. When a connection is
detected, the getty program issues a login: prompt, and invokes the login program to handle the system
login.
NOTE Selecting Terminal Server mode disables Port Manager for that serial port, so data is no longer
logged for alerts etc.

Opengear ACM7000 Specifications

General

RS-232 ports	8
SIM card slot	Yes
USB 2.0 ports quantity	4
Number of simultaneous SIM cards	2
Certification	EN 55022:2010, CISPR 22:2008, FCC Part 15 B:2015, ICES-003 5 (2014), AS/NZS CISPR 22:2009+A1:2010, EN 61000-3-2:2006/A2:2009, EN 61000-3-3:2008 EN 55024:2010, CISPR 24:2010, EN 61000-4-2:2009, EN 61000-4-3:2006+A2:2010, EN 61000-4-4:2004+A1:2010, EN 61000-4-5:2006, EN 61000-4-6:2009, EN 61000-4-8:2010, EN 61000-4-11:2004 CE, UL 1950, TUV, C-Tick, RoHS
Mounting type	Rack mounting
Product color	Black, Red
Antenna connector type	SMA
Flash memory	32 MB
Internal memory	256 MB
Processor frequency	800 MHz
Control display unit	No
Internal memory type	DDR3
Input voltage	110 - 240 V
DC input voltage	12 V
Storage temperature (T-T)	-40 - 75 °C
Operating temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	5 - 90 %
Security algorithms	IPSec, SSH-2, SSL/TLS

Weight and Dimensions

Depth	120 mm
Width	130 mm
Height	35 mm
Weight	6000 g
