197

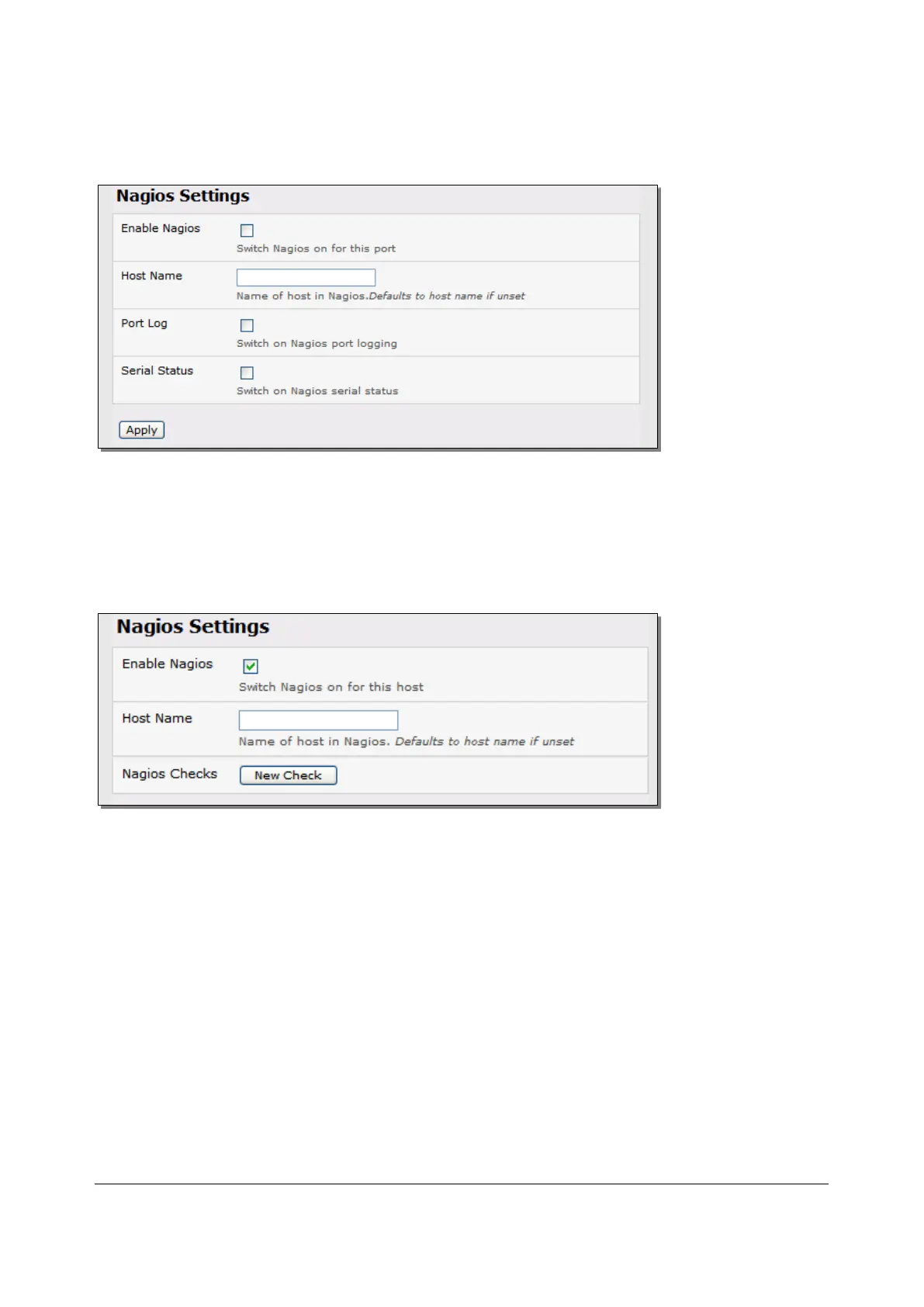

2. Select Enable Nagios, specify the name of the device on the upstream server and determine the
check to be run on this port. Serial Status monitors the handshaking lines on the serial port and
Check Port monitors the data logged for the serial port
9.2.5 Configure selected Network Hosts for Nagios monitoring
The individual Network Hosts connected to the console server to be monitored must also be configured
for Nagios checks:
1. Select Serial & Network > Network Port and click Edit on the Network Host to be monitored
2. Select Enable Nagios, specify the name of the device as it will appear on the upstream Nagios
server
3. Click New Check to add a check which will be run on this host
4. Select Check Permitted TCP/UDP to monitor a service that you have previously added as a
Permitted Service
5. Select Check TCP/UDP to specify a service port that you wish to monitor, but do not wish to allow
external (SDT Connector) access to
6. Select Check TCP to monitor
