Intersection Equipment Installation Instructions
71
Gate Opener Relay Outputs
See above for the ratings of the relay contacts.
1. Connect a wire of sufficient gauge to handle the current draw of your gate opener between the Relay
Common terminals on the card rack to the appropriate terminal on your gate opener control.
2. Determine if your gate opener needs a normally open or a normally closed contact.
3. Connect a wire of sufficient gauge to handle the current draw of your gate opener between the Normally
Open or Normally Closed terminals on the Card rack to the appropriate terminal on your gate opener
control.

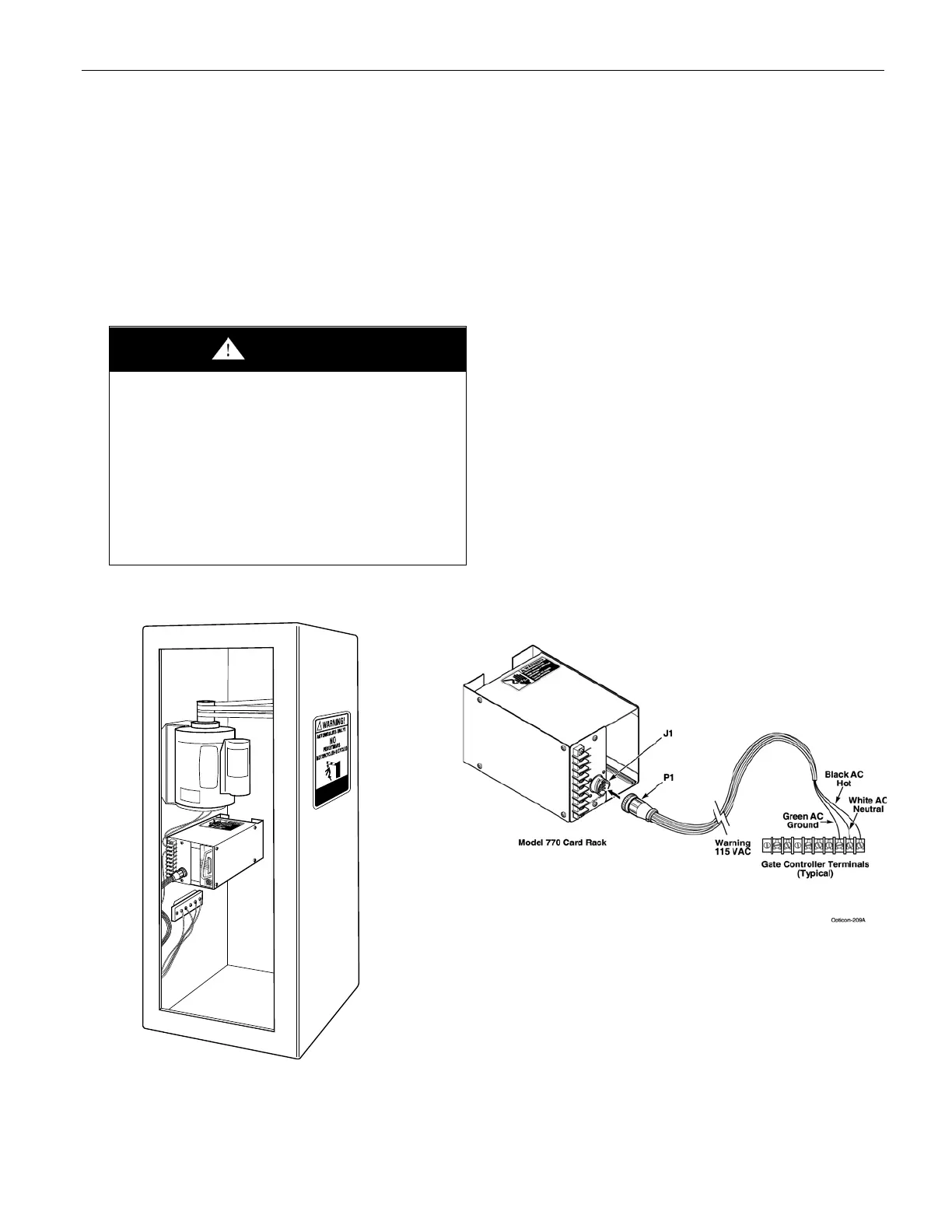

Figure C-4. Card Rack Harness Wiring
Figure C-3 Typical Gate Opener Cabinet
WARNING
Switching a load that is higher than the
contact ratings may result in equipment
failure which may cause improper system
operation. This device is intended to actuate
the gate opening circuit only. Do not use to
switch actual motor drive current. Improper
system operation may result in system/device
failure leading to a delay of the emergency
vehicle.
