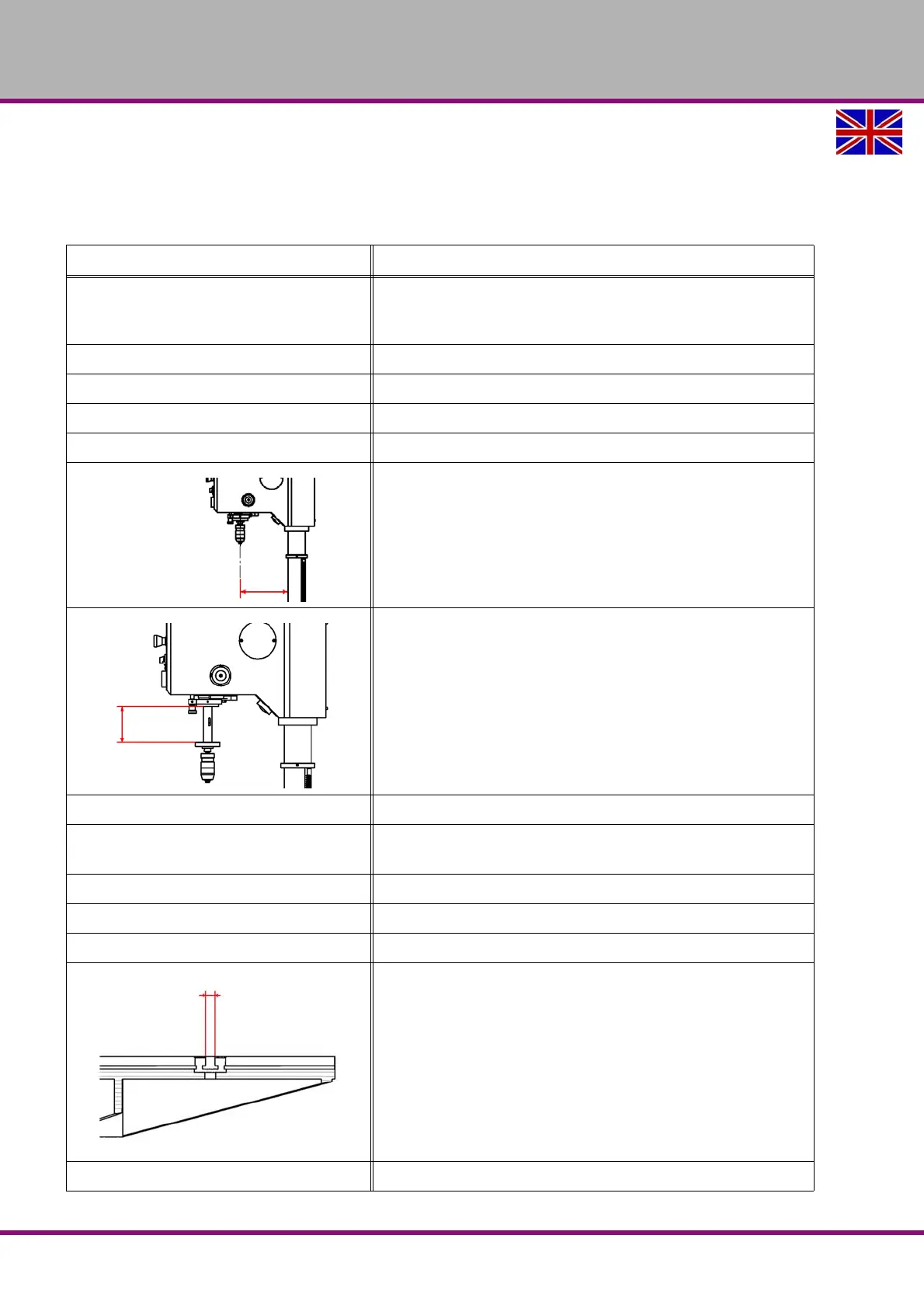

Technical specification
Version 1.0.2 dated 2018-03-02 Page 18 Translation of the original instructions
DH45VGB
DH45V_GB_2.fm
OPTIMUM
MASCHINEN - GERMANY
®
2 Technical specification
The following information represents the dimensions and indications of weight and the manu-
facturer‘s approved machine data.
DH45V
Electrical connection
400 V / 3 Ph ~50 Hz ( ~ 60Hz )
Setting the basic frequency to 60Hz,
see the Sinamics operating instructions G110M
Spindle drive motor power 2.2 kW
Coolant pump motor power 40W
Drilling capacity in steel (S235JR) [mm] Ø 40
Tapping in steel (S235JR) [mm] M 35
350 mm
170 mm
Spindle seat MT4
Table size
Length x Width of the working surface
530 x 530 mm
Bearing load drilling table [kg] 250
Tilting the table to the side 0 - 90°
Drilling table rotate 360°
T-slot size / distance / number
16 mm / 125 mm / 3
Distance spindle - table [mm] 130 - 725 mm
Throat depth
Spindle stroke
T-slot size
