3.5 Installation requirements
Organise the working area around the machine according to the local safety regulations. The
work area for operation, maintenance and repair must not be restrictive.
Follow the prescribed safety areas and escape routes according to VDE 0100 part 729 as
well as the environmental conditions for the operation of the machine.
The main switch of the machine must be freely accessible.
The machine must only be installed and operated in a dry and well-ventilated place.
Avoid places near machines generating chips or dust.
The installation site must be free from vibrations also at a distance of presses, planing
machines, etc.
Provide sufficient space for the personnel preparing and operating the machine and trans-
porting the material.
Also make sure the machine is accessible for setting and maintenance works.
3.5.1 Foundation and ground
Check the ground. The ground must bear the load.
The substructure must be prepared in such a way as to ensure that, if any lubricant is used,
it cannot penetrate the floor.

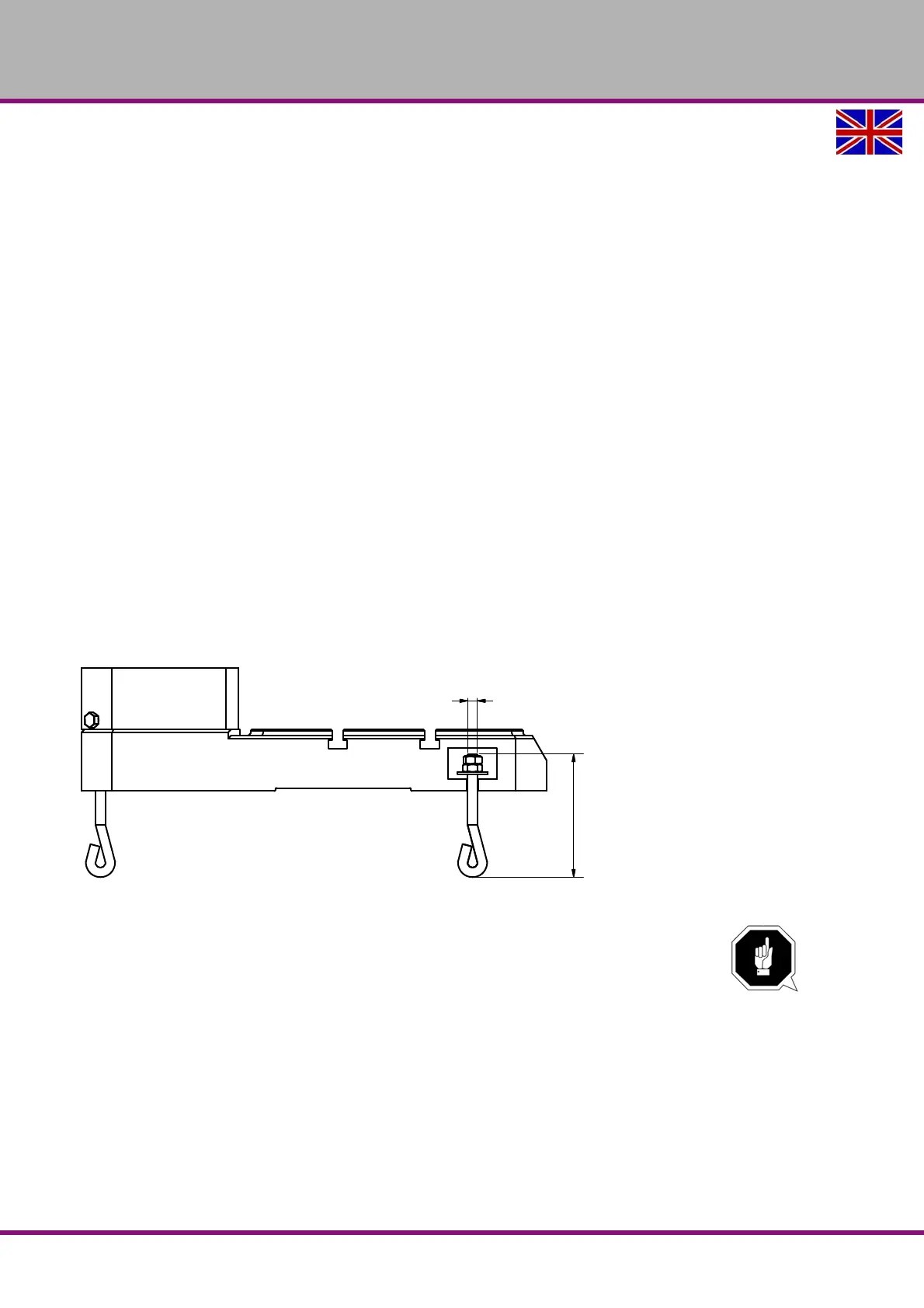

3.6 Fixing
In order to provide for the necessary stability of the geared drill,
it is necessary to firmly connect the geared drill with its foot to the ground. We recommend the
use of anchor rods DIN 529 M16 x 200
Fix the foot of the geared drill to the ground with the holes pre-drilled for this purpose.
ATTENTION!
Tighten the fixing screws of the geared drill only as much that it is safely fixed and
cannot break away or tilt over.
If the fixing screws are too tight in particular in connection with an uneven substructure it may
result in a broken stand of the machine.
